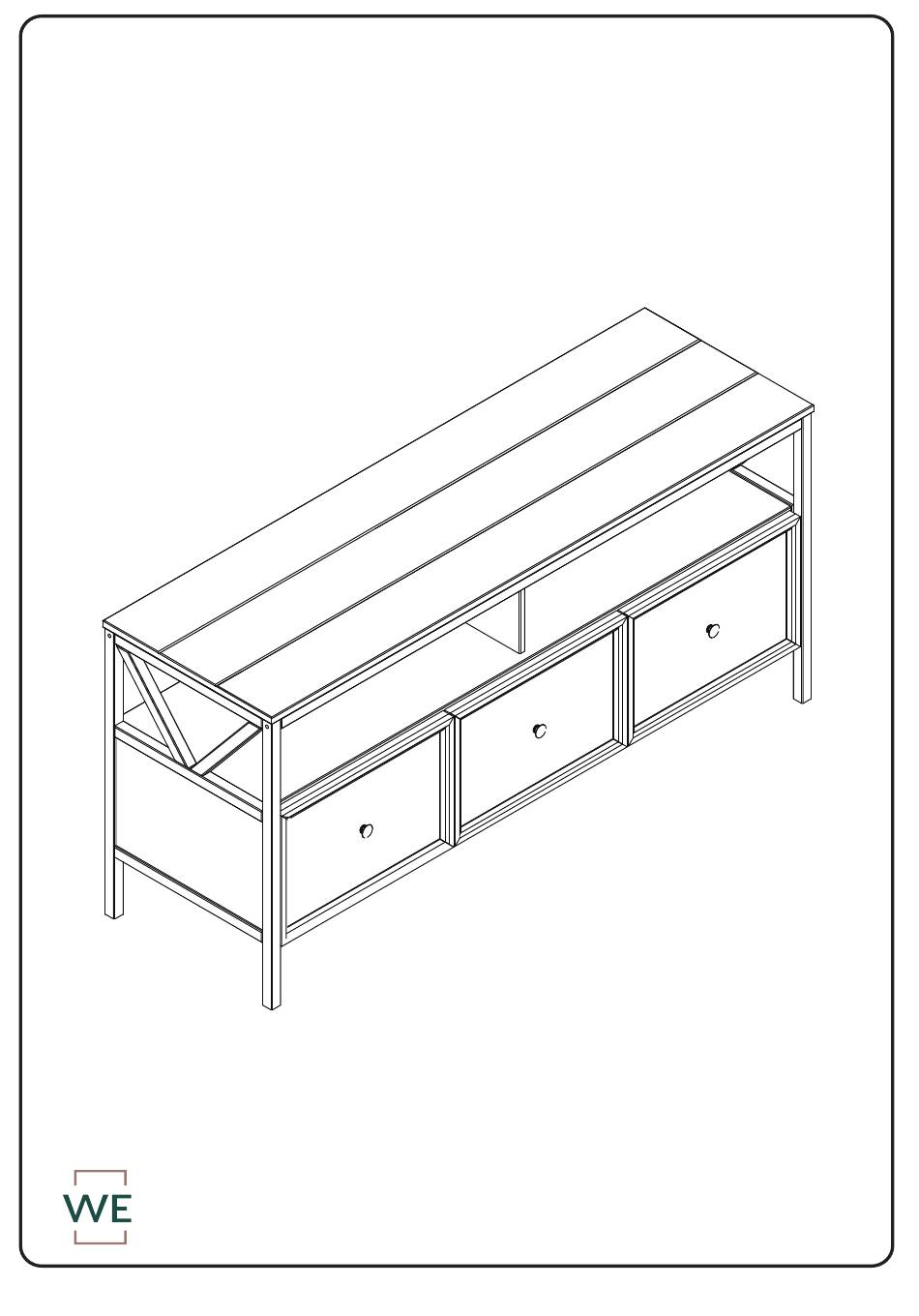

Item # : W60NAT3DR
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Revised 12/2021
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
P.1
Advertisement
Related Manuals for Walker Edison W60NAT3DR
Summary of Contents for Walker Edison W60NAT3DR
- Page 1 Item # : W60NAT3DR Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 12/2021 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
- Page 3 Part# Description Part# Description Top panel 01 pcs Drawer Front 03 pcs Left side panel 01 pcs Left side of drawer 03 pcs Right side panel 01 pcs Right side of drawer 03 pcs Center panel 01 pcs Drawer bottom 03 pcs Lower Partition 02 pcs...
- Page 4 Ø8*30mm Wooden dowel Ø4,0*30mm Screw Ø4,0*40mm Screw Ø7*60mm Screw Ø4,0*22mm Screw Handle Hex key Ø10*10 Nail Wall anchor Washer Ø6mm Felt Ø3,5*16mm Screw Stop Hammer recommended for assembly (not included)
- Page 5 Step 1 Ø8*30mm Insert Wooden dowel (A) into part (2), (3), (4), (5), (6), (7), (8), (10) and (11). Step 2 Secure part (6) to part (2) and (3) with screw (B). Ø4,0*30mm...
- Page 6 Step 3 Ø4,0*30mm Secure part (15) to part (5) with screw (B). Step 4 Ø4,0*30mm Secure part (5) to part (8) with screw (B).
- Page 7 Step 5 Ø4,0*40mm Secure part (7) to part (5) with screw (C). Step 6 Ø4,0*40mm Secure part (4) to part (8) with screw (C).
- Page 8 Step 7 Ø4,0*30mm Secure part (3) to part (7), (8) with screw (B). Step 8 Ø4,0*30mm Secure part (2) to part (7) and (8) with screw (B).
- Page 9 Step 9 Ø7,0*60mm Secure part (1) to part (2) and (3) with screw (D)+(G). Step 10 Ø4,0*30mm Secure part (1) to part (2), (3) and (4) with screw (B). Insert hardware (M) to part (2) and (3)
- Page 10 Step 11 Ø3,5*16mm Fix stop (P) with screw (N) to part (8). Step 12 90° Secure back panel (14) with nails (H). Ø10*10 P.10 P.10 P.10...
- Page 11 Step 13 Secure part (10), (11) in drawer front part (9) with screw (B). Ø4,0*30mm Step 14 Insert part (12) to part (10) and (11). P.11 P.11 P.11...
- Page 12 Step 15 Ø4,0*30mm Secure part (13) to part (10) and (11) with screw (B). Step 16 Ø4,0*22mm Insert Hardware (F) with screw (E). P.12...
- Page 13 Step 17 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors. Drill your wall with a 6mm drill ( not included) and Atach screw (B) into washer (K), securing insert hardware (L), securing wall anchor (J) wall anchor (J) at the top middle part 1.
- Page 14 Step 18 Assembly Complete! Maintenance Guide To maintain long term performance and easy gliding of your solid wood drawers, we recommend applying wax to the wooden guide rails. 1. Bee's wax is recommended or Paraffin wax from a standard candle can be used. 2.
