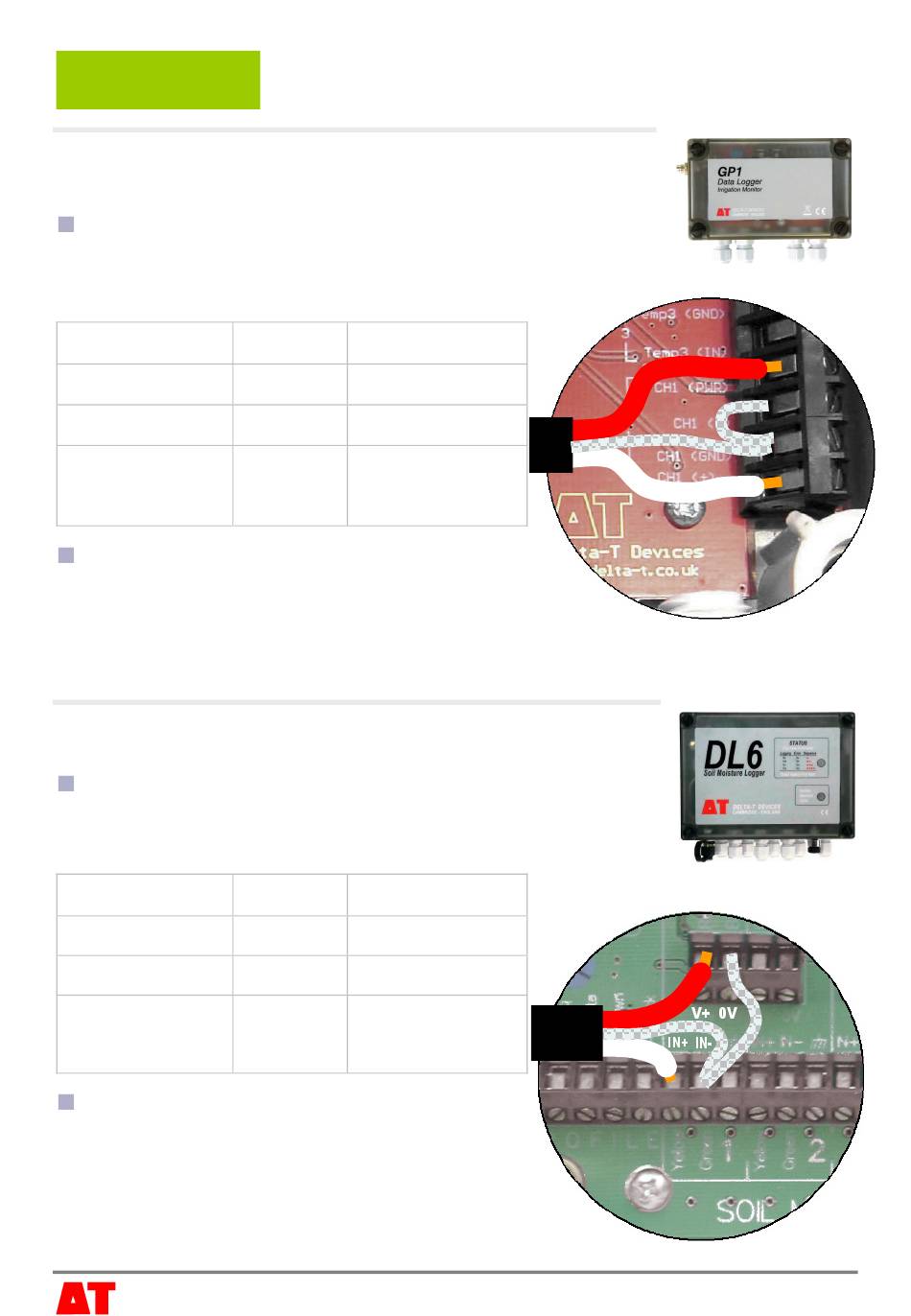

Data Loggers

GP1
2 SM200s can be connected to each GP1 - the SM200
should be connected as a single-ended, powered sensor.
These details illustrate connections for Channel1:
SM200 wiring
Power V+
Signal
Ground
Configure the GP1 by choosing "SM200"
from the sensor menu in PC DeltaLINK or
Pocket DeltaLINK.
For configuration details see the GP1 Quick Start Guide.
DL6
Up to 6 SM200s can be connected to each DL6 with each
sensor connected as a single-ended, powered sensor.
These details illustrate connection to Channel1:
SM200 wiring
Power V+
Signal
Ground
Configure the DL6 by choosing "SM200"
from the sensor menu in DeltaLINK.
For configuration details refer to the DL6 User
Manual.
© 2005 Delta-T Devices Ltd
Colour GP1 terminal
Red CH1 (PWR)
White CH1 (+)
CH1 (GND)
Shield
and CH1 (-)
Colour DL6 terminal
Red V+
White
IN+
IN-
Shield
and 0V
