Motor power supply
110V
220V
220V
380V
NOTE: If accessories are used, provide piping and cables as needed.
Provide a grounding rod that will be fixed close to the body of the gate.

GENERAL FEATURES

• Universal cabinet that allows installing the barrier arm on either side of
the barrier.
• Concealing system for manual unlocking (up to 4.5m).
• Electronic control unit with frequency inverter.
• Mechanical stop with height adjustment.
• System activation through a gearmotor, pulleys, and belts.
• Galvanized steel cabinet with anti-corrosion treatment and electrostatic
painting guarantee excellent resistance against the action of time.
• Limit switch system with encoder.
• Electronic brake.
• Allows installing several accessories (inductive loop, signal light,
photocell, pushbutton, etc.).
4
Cable type and size
1 PP cable - 2 x 2.5 mm
1 PP cable - 2 x 2.5 mm
1 PP three-phase cable - 3 x 2.5 mm
1 PP three-phase cable - 4 x 2.5 mm

TECHNICAL SPECIFICATIONS

Non-stop barrier (linear)
Opening
Barrier length Cycles/hour time
(adjustable)
0.7 second
2.5 to 3m 1200
(minimum)
Non-stop barrier (articulated)
Opening
Barrier length Cycles/hour time
(adjustable)
0.7 second
3m (maximum) 580
(minimum)

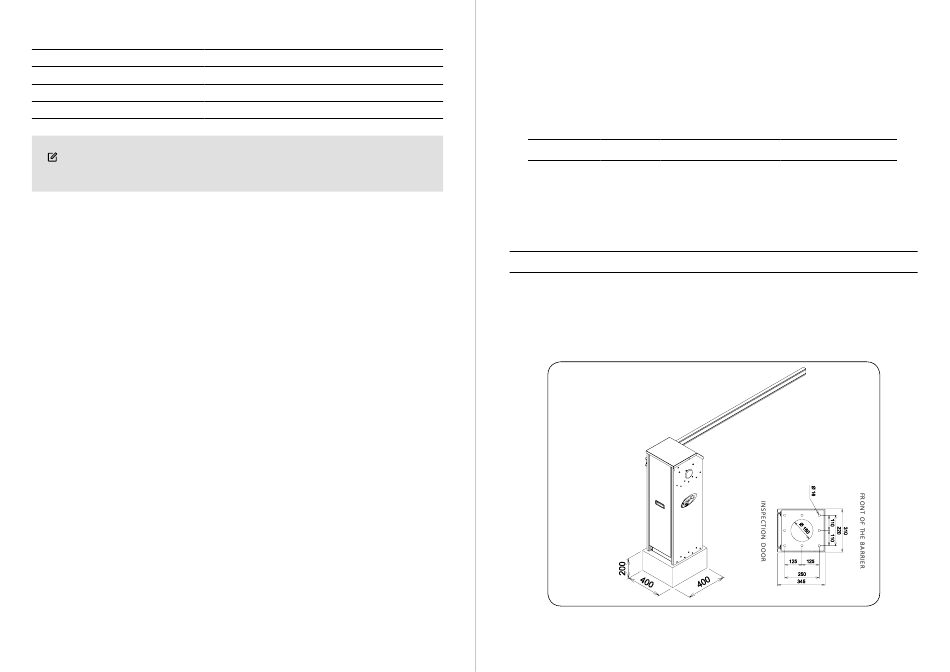

EQUIPMENT DIMENSIONS

Closing
time Voltage Gearbox
(adjustable)
0.7 second 127 and Oil bath
(minimum) 220 V method
Closing
time Voltage Gearbox Barrier profile
(adjustable)
0.7 second 127 and Oil bath Rectangular
(minimum) 220 V method 60 x 30mm
5
