Summary of Contents for Odyssey Xtreem
-

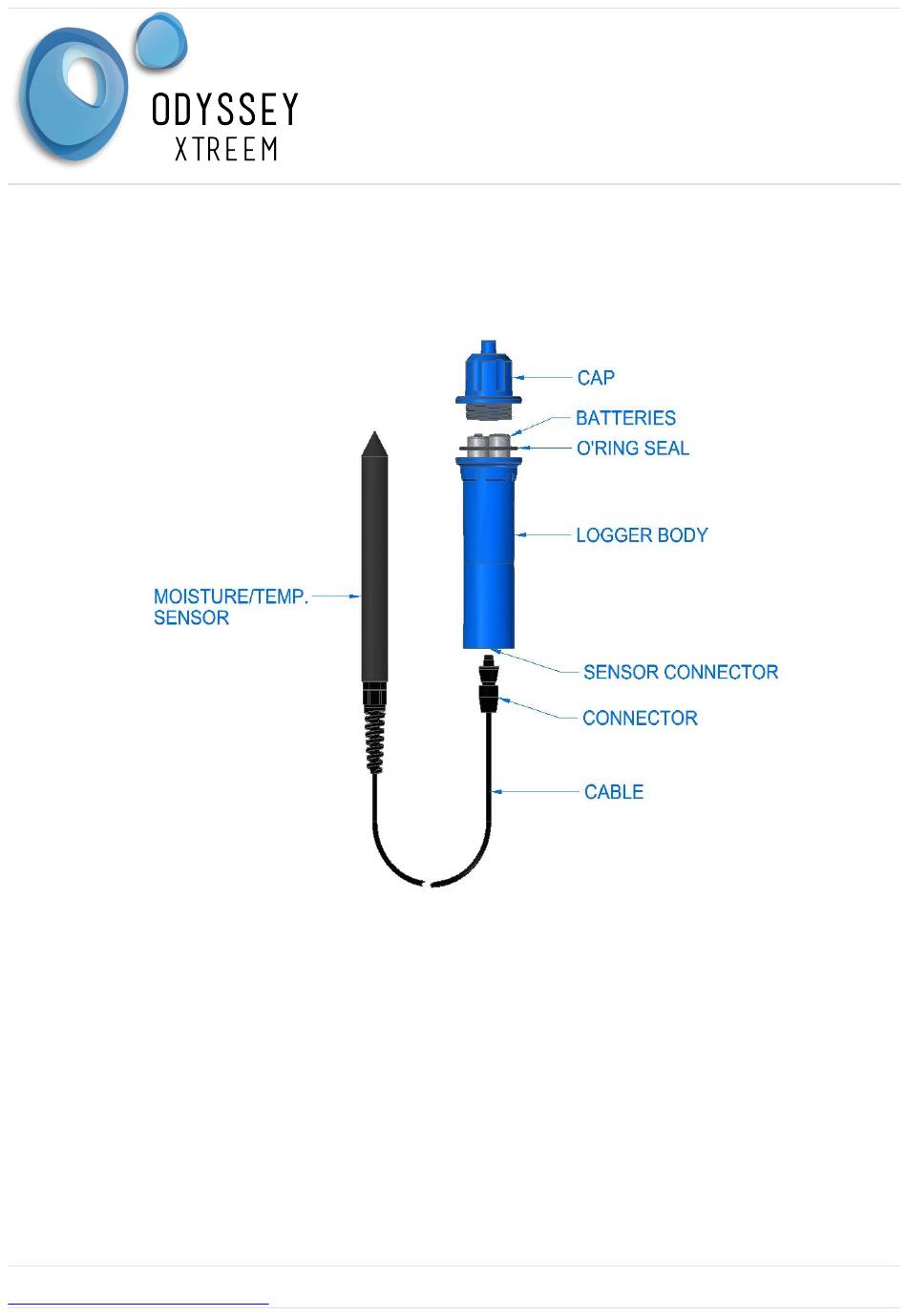

Page 1: Xtreem Single Soil Moisture Logger User Diagram
® Odyssey Xtreem Single Soil Moisture Logger User Manual Xtreem Single Soil Moisture Logger User Diagram DATAFLOW SYSTEMS LTD Page 1 www.Odysseydatarecording.com V 03/21... -
Page 2: Table Of Contents
® Odyssey Xtreem Single Soil Moisture Logger User Manual Contents Xtreem Single Soil Moisture Logger User Diagram................1 Principal of Operation..........................3 Installation...............................3 Installing the Xtract Application.......................3 Identifying the Logger..........................3 Setting Up the Logger..........................4 Logger Configuration...........................4 Sensor Configuration...........................4 Calibration............................4 Transfer Configuration to Logger......................5 Soil Types..............................5... -
Page 3: Principal Of Operation
Odyssey ® Xtreem logger at the end of the cable. The logger stores the data in its memory along with the time of the measurement. When uploading the data via Bluetooth to a tablet / phone the soil moisture data is compensated for variations due to soil temperature using the stored factory calibration. -
Page 4: Setting Up The Logger
Single Soil Moisture Logger User Manual Xtreem logger located will be shown in the list. The Xtreem logger with the highest signal ( also coloured green if it is very close ) is the logger that is closest to the tablet / phone. -
Page 5: Transfer Configuration To Logger
Once you know the dry point and field capacity of your soils select the custom to enter these manually. Field capacity is the amount of water that can be held in the soil against gravity. The Xtreem logger system can be used to measure this value. -
Page 6: Volumetric Measurement
® Odyssey Xtreem Single Soil Moisture Logger User Manual In the calibration tab select the soil type as Soil Test for all levels and press the submit button. We suggest the logging interval is set to 1 minute for this test. -
Page 7: Collecting Data
® Odyssey Xtreem Single Soil Moisture Logger User Manual Collecting Data Bring the tablet / phone with the Xtract application running within range of the logger and the application will automatically find, connect and collect the logs from the logger. This can be seen happening on the main screen of the Xtract application. -
Page 8: Reading At 100% On Chart
( 25ºC ), battery life is expected to be approximately 2 years. Replacement To replace the batteries, unscrew the cap and lift out the 2 batteries. Over time the cap can become very tight, so use the special Odyssey ® spanner for opening the cap which is available from... -
Page 9: Specifications
We recommend with temperatures greater than 0ºC to use the Energizer Max E91 with PowerSeal Technology batteries as these have been tested in our Xtreem products to give the best life and are least likely to leak. At 0ºC the battery life is reduced to half of its calculated life and it further reduces to 1/8 of its life at -20ºC. -
Page 10: Intellectual Properties
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Japan (MIC) The Xtreem loggers are approved for use in the Japanese market. In Japan, certification is valid for 80 channels between 2402...2481 MHz CE Warning This device has been tested for compliance with the relevant standards for the EU market.
