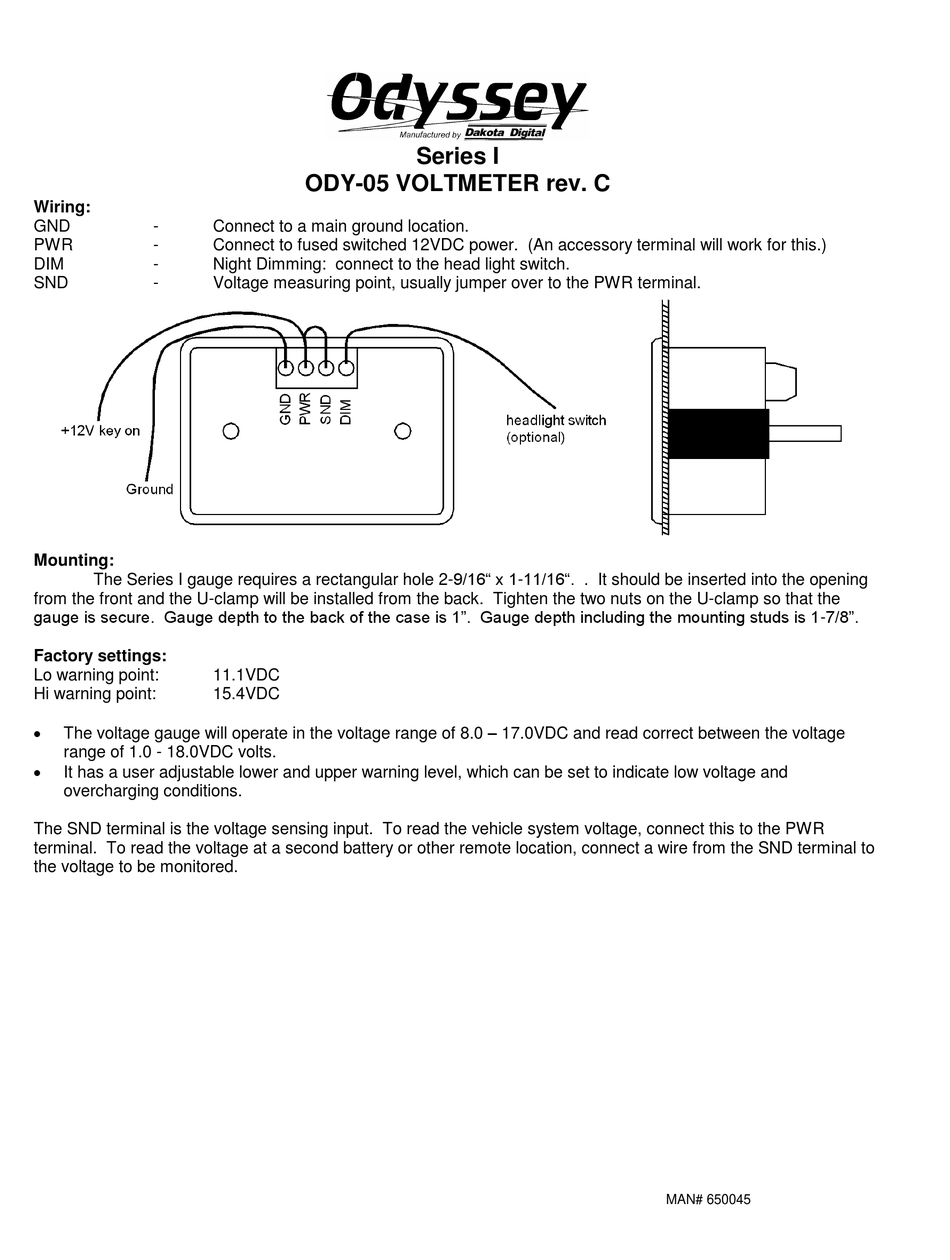

Odyssey I Series Quick Start Manual

Wiring:

GND -
PWR -
DIM -
SND -

Mounting:

The Series I gauge requires a rectangular hole 2-9/16" x 1-11/16". . It should be inserted into the opening
from the front and the U-clamp will be installed from the back. Tighten the two nuts on the U-clamp so that the
gauge is secure. Gauge depth to the back of the case is 1". Gauge depth including the mounting studs is 1-7/8".

Factory settings:

Lo warning point:
Hi warning point:

The voltage gauge will operate in the voltage range of 8.0 – 17.0VDC and read correct between the voltage
range of 1.0 - 18.0VDC volts.

It has a user adjustable lower and upper warning level, which can be set to indicate low voltage and
overcharging conditions.
The SND terminal is the voltage sensing input. To read the vehicle system voltage, connect this to the PWR
terminal. To read the voltage at a second battery or other remote location, connect a wire from the SND terminal to
the voltage to be monitored.
ODY-05 VOLTMETER rev. C
Connect to a main ground location.
Connect to fused switched 12VDC power. (An accessory terminal will work for this.)
Night Dimming: connect to the head light switch.
Voltage measuring point, usually jumper over to the PWR terminal.
11.1VDC
15.4VDC
Series I
MAN# 650045
