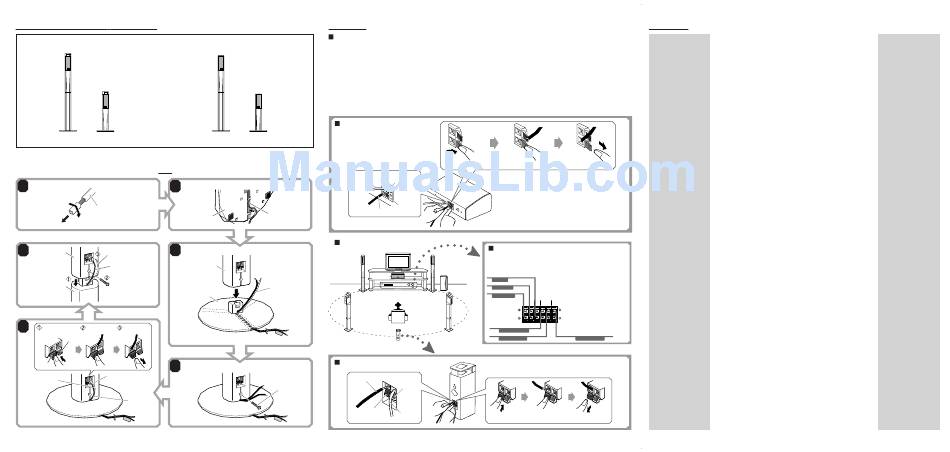

Assembling the front and surround speakers
Assembled speakers:
With stand:
Refer to Steps 1 to 6
Without stand: Refer to Steps 1 to 5
or
With stand
Without stand
SP-XF30S
Before assembling—
• Prepare a Philips screwdriver (not supplied).
• Take care not to drop any component part while assembling; otherwise, it may cause damage to the floor or injury.
• Each speaker cord has its name tag attached to one end. Attach the end without the name tag to the speaker terminal.
1
2
Speaker cord
Base plate
(Rear side)
6
3
Speaker
White
Stand (or
speaker directly)
Black
Stand
Base plate
5
Press
Insert
Release
Red
4
Black
Copper
Black striped
Speaker
cord
– 2 –
Connections
Connecting the speaker system to the amplifier
Before connecting—
• Turn off the power to the amplifier before connecting the speaker system; otherwise, the speakers may be damaged.
• The impedance of each speaker is 6 Ω. Before connecting them to your amplifier, check the speaker impedance range of your amplifier. If the impedance of this
speaker is out of the speaker impedance range indicated on the amplifier, you cannot connect this system to the amplifier.
• The maximum power handling capacity of the speakers are 100 W. Excessive input will result in abnormal noise and possible damage.
• Be sure to turn down the volume level to prevent unwanted noise before performing following operations:
– Turning on or off other components,
– Operating the amplifier,
– Tuning FM stations,
– Fast-forwarding a tape,
– Continuously reproducing high frequency oscillation or high pitch electronic sounds.
or
• When using a microphone, do not aim it at the speakers or use it near the speakers; otherwise, the howling which occurs may damage the speakers.
• Before replacing the cartridge, always turn off the power to the turntable; otherwise, the clicking noise may damage the speakers.
Connecting the Center speaker
With stand
Without stand
SP-XF30F
Copper
Black striped
Route the cord
Speaker layout
Front right
Center
Speaker cord
Surround right
Surround back
Connecting the Surround back speaker
Black striped
Screw—
M5 x 25 mm
(M5 x 1 in.)
Black
Press
Insert
Red
Black
Typical connection method to an amplifier
Connect the speakers to the speaker terminals of the amplifier with the
Front left
speaker cords by referring to the diagram below.
• Make sure to match the polarity (ª and
·) when connecting the speaker cords.
Subwoofer
• The diagram below is an example of a
CENTER
typical connection.
FRONT LEFT
Amplifier
FRONT RIGHT
FRONT
CENTER
SURROUND
SURROUND
SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
BACK
SURROUND RIGHT
Surround left
SURROUND LEFT
Red
Copper
Press
Insert
– 3 –
Specification
SP-XF30F (Front speakers)
Type: 2-way 3-speaker Bass reflex type (Magnetically-shielded type)
Speaker unit: 5.5 cm (2
Frequency range: 95 Hz to 40 000 Hz
Input impedance: 6 Ω
Power handling Capacity: 100 W
Sound pressure level: 80 dB/W•m
Dimensions (W × H × D) (approx.):
Mass (approx.): 3.67 kg (8.1 lbs) each
SP-XF30S (Surround speakers)
Type: 2-way 3-speaker Bass reflex type (Magnetically-shielded type)
Speaker unit: 5.5 cm (2
Frequency range: 90 Hz to 40 000 Hz
Input impedance: 6 Ω
Power handling Capacity: 100 W
Sound pressure level: 77 dB/W•m
Dimensions (W × H × D) (approx.):
Mass (approx.): 3.83 kg (8.5 lbs) each
Release
SP-XF70C (Center speaker)
Type: 2-way 3-speaker Bass reflex type (Magnetically-shielded type)
Speaker unit: 5.5 cm (2
Frequency range: 90 Hz to 40 000 Hz
Input impedance: 6 Ω
Power handling Capacity: 100 W
Sound pressure level: 81 dB/W•m
Dimensions (W × H × D) (approx.):
Mass (approx.): 0.87 kg (2.0 lbs)
SP-XF70S (Surround back speaker)
Type: 2-way 3-speaker Bass reflex type (Magnetically-shielded type)
Speaker unit: 5.5 cm (2
Frequency range: 90 Hz to 40 000 Hz
Input impedance: 6 Ω
Power handling Capacity: 100 W
Sound pressure level: 78 dB/W•m
Dimensions (W × H × D) (approx.):
Mass (approx.): 0.96 kg (2.2 lbs)
SURROUND BACK
Release
3
/
in.) cone (× 2), 3.0 cm (1
1
/
in.) dome
16
16
250 mm × 1103 mm × 250 mm
in. × 43
in. × 9
(9
7
/
7
/
7
/
in.)
8
16
8
3
/
in.) cone (× 2), 3.0 cm (1
1
/
in.) dome
16
16
250 mm × 1103 mm × 250 mm
in. × 43
in. × 9
(9
7
/
7
/
7
/
in.)
8
16
8
3
/
in.) cone (× 2), 3.0 cm (1
1
/
in.) dome
16
16
209 mm × 85 mm × 92 mm
in. × 3
in. × 3
(8
1
/
3
/
5
/
in.)
4
8
8
3
/
in.) cone (× 2), 3.0 cm (1
1
/
in.) dome
16
16
84 mm × 211 mm × 120 mm
in. × 8
in. × 4
(3
5
/
5
/
3
/
in.)
16
16
4
– 4 –
