Summary of Contents for WINIA KOS-61HB

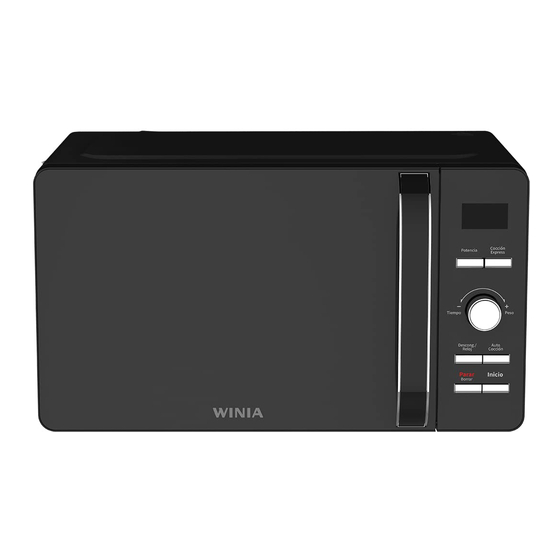

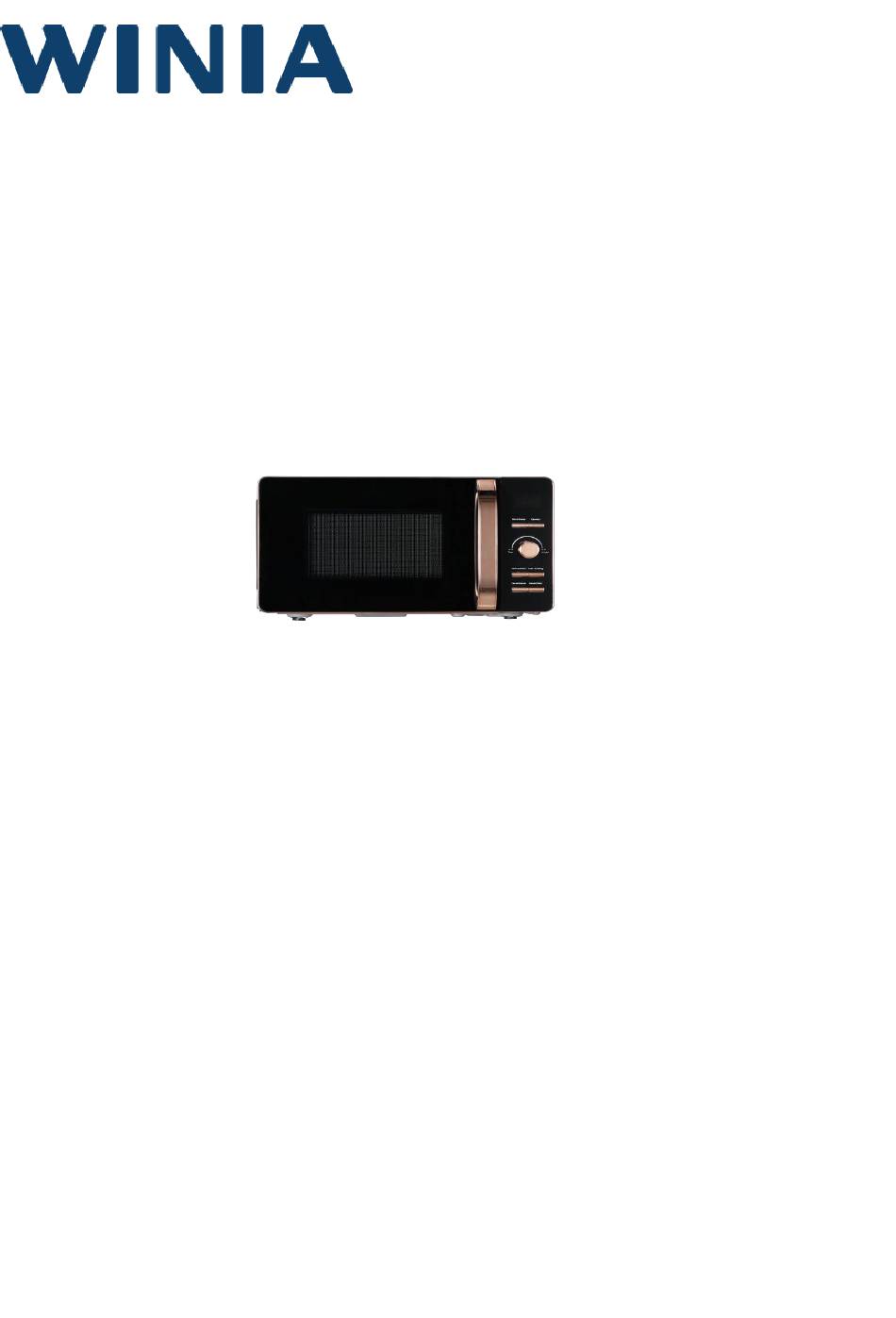

- Page 1 Microwave Oven KOS-61HB SERVICE MANUAL...
- Page 2 Donlim weili electrical appliances co., Ltd. ADDRESS: ZHENGHE SOUTH ROAD, LELIU TOWN, SHUNDE DISTRICT, FOSHAN CITY, GUANGDONG PROVINCE, CHINA CONTENTS 1.PRECAUTION 2.SPECIFICATION 3.DISASSEMBLY AND REASSEMBLY 4.ALIGNMENT AND ADJUSTMENT 5.OUTPUT OF MAGNETRON 6.CHECK FOR MICROWAVE LEAKAGE 7.SCHEMATIC DIAGRAM PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A) Do not operate or allow the oven to be operated with the door open.
- Page 3 procedures described in this manual before the oven is release to the owner. E) A microwave leakage check to verify compliance with the Federal performance standard should be performed on each oven prior to release to the owner. SAFETY PRECAUTION Follow the special safety precautions, although microwave oven is completely safe when in use.
- Page 4 16. Use replacement component that has the same specification especially for flame resistance and dielectric strength rating. The replacement component which does not have same safe character may have a risk of fire or electrical shock. 17.) Save this manual. HIGH VOLTAGE PRECAUTION High voltage Warning: Do not attempt to measure any of high voltage as high voltage is present during any cook...
- Page 5 SPECIFICTION AND FEATURE Model: 20UX47-L Rated Voltage: 120V 60Hz Rated Power input: 1130W for magnetron Rated Microwave power output: 700W Rated Microwave frequency: 2450MHz Capacity of oven cavity: Housing Waweguide cover(inside) Glass turtable Rotating ring Control panel Oven hook Rotating axis Door hook Notes: 第...
- Page 6 The oven cannot be activated without the door properly closed. This is a safety feature, never intend to damage it. DISASSEMBLY AND ASSEMBLY 1. Replace the magnetron 1) Remove the cover. 2) Disconnect the lead wires of magnetron and thermostat. 3) Remove the 2 screws securing the lamp cover and thermostat, and then remove screw securing the linkage.
- Page 7 the lower and upper hinges. 4) Check the hinges and front side of cavity and sealing parts on door when reassembling the door. And always perform microwave leakage test after reassembling. Note: the thickness of the flat screwdriver inserted into the gap should be 0.5mm or less. 4.
- Page 8 ALIGNMENT AND ADJUSTMENT PRECAUTION 1.High voltage is present in terminals during any cook procedure. 2.It is necessary to attempt measure the high voltage for alignment and adjustment. 3.Before touching any component or wire, always disconnect the power source and discharge the voltage capacitor. 1.
- Page 9 3) A continuity check between each filament terminal and magnetron case should read open. 4. High voltage diode 1) Disconnect the diode from the circuit by removing its leads. 2) Set the ohm -meter to the max scale, measure across the diode terminals. 3) Reverse the meter leads and read the resistance meter with 6v, 9v or higher voltage batteries, which use for check the front -to -back resistance of diode (or meter would show infinite reading in both direction The resistance of normal diode will be infinite in one direction and...
- Page 10 MEASURE THE OUTPUT OF MAGNETRON Output of magnetron Perform a water temperature rise test, we can measure the output of magnetron. The facility needed in test as follow: 2PCS 1-liter cylinder borosilicate vessel (outside diameter 190mm) glass thermometer with mercury column Note: check the voltage under load, as low voltage will reduce the out put of magnetron.
- Page 11 CHECK FOR MICROWAVE LEAKAGE 1. Procedure for the measurement of micro wave leakage 1) Pour 275 cc of 200c water in the beaker which the max capacitor is 600cc 2) Start to operate the oven and measure the microwave leakage by using a microwave survey meter.
- Page 12 3. Record keeping and notification after measurement 1) After adjustment and repair of radiation preventing device, make a repair record for the measured values and keep the data. 2) If the radiation leakage is more than 4mw /cm2 and ensure that all parts are in good condition, function properly and the identical are replaced as listed in this manual, notify that fact to service centre.
- Page 13 第 12 页 共 11 页...
