WINIA KOM9P1160 Use And Care Manual

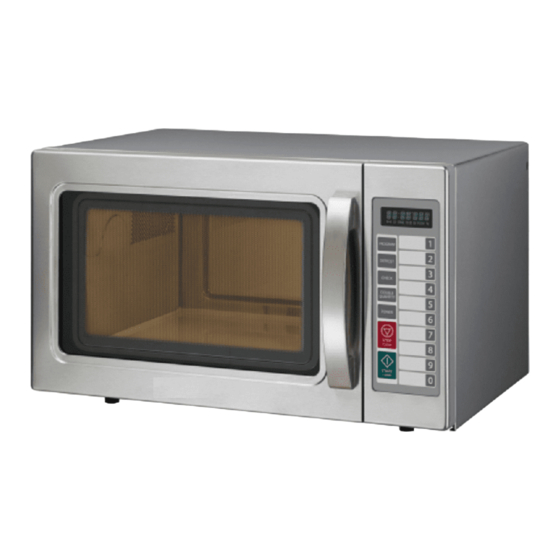

Commercial microwave oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ABOUT THIS MANUAL
담
당
브 랜 드
F.MODEL
B.MODEL
B U Y E R
COUNTRY
M E M O
20.07.13-총 1p (표지)
20.07.24 - 총 1p(표지2)
REGALE_KOM9P1160HZ(KOM9P2CTTZBW1BUT00)( )_A5.indd 1
이주희 님
WINIA
KOM9P2CTTZBW1BUT00
KOM9P1160HZ
REGALE
U.K.
총 29p (140 x 210)
NO NEED PRINT
(주) 신광씨링
광주광역시 서구 하남대로
언 어
영어
502번길 14
2020-07-24
4:47:14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOM9P1160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WINIA KOM9P1160

Summary of Contents for WINIA KOM9P1160

  • Page 1 ABOUT THIS MANUAL (주) 신광씨링 광주광역시 서구 하남대로 502번길 14 담 당 이주희 님 브 랜 드 WINIA 언 어 영어 F.MODEL KOM9P2CTTZBW1BUT00 B.MODEL KOM9P1160HZ B U Y E R REGALE COUNTRY U.K. M E M O 총 29p (140 x 210) 20.07.13-총...
  • Page 2 For service enquiries please contact either your supplier or WINIA Electronics on 0844 887 2525. Your original invoice will be required as verification. This warranty does not cover the replacement of damaged parts required during any servicing of the appliance.
  • Page 3 MICROWAVE OVEN KOM9P1160HZ OPERATING INSTRUCTIONS Before operating this oven, please read these instructions completely. REGALE_KOM9P1160HZ(KOM9P2CTTZBW1BUT00)( )_A5.indd 3 2020-07-24 4:47:14...

  • Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (A) DO NOT ATTEMPT TO OPERATE THIS OVEN WITH THE DOOR OPEN SINCE OPEN-DOOR OPERATION C A N R E S U L T I N H A R M F U L E X P O S U R E T O MICROWAVE ENERGY.
  • Page 5 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (F) WARNING: THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE O F T H E A P P L I A N C E I N A S A F E W A Y A N D UNDERSTAND THE HAZARDS INVOLVED.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...1 TABLE OF CONTENTS ........................3 EARTHING INSTRUCTIONS ......................4 INSTALLATION ..........................4 SPECIFICATIONS ..........................5 IMPORTANT .............................5 IMPORTANT SAFETY INSTRUCTIONS ..................6 FEATURES DIAGRAM ........................9 OPERATION PROCEDURE ......................11 CONTROLS ............................ 12 TIME DEFROSTING ......................12 COOKING IN ONE STAGE .....................13 MEMORY FUNCTION ......................

  • Page 7: Earthing Instructions

    EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

  • Page 8: Specifications

    SPECIFICATIONS POWER SUPPLY 240V AC 60Hz SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1600 W MICROWAVE OUTPUT POWER 1100 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W x H x D) 542 x 329 x 461mm (21.34 x 12.95 x 18.15 in.) CAVITY DIMENSIONS (W x H x D) 350 x 230 x 357 mm (12.78 x 3.06 x 14.06 in.) NET WEIGHT...

  • Page 9: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1.
  • Page 10 chicken livers, etc., without first somebody, especially to children or elderly people. This piercing them several times with a fork. is important because things which have been heated in a 9. Do not pop popcorn longer than microwave oven carry on the manufacturer's directions.
  • Page 11 point without appearing to be 18. Oven should be cleaned regularly and any food boiling due to surface tension of the liquid. Visible bubbling or deposits removed. boiling when the container is 19. Failure to maintain the oven in removed from the microwave a clean condition could lead to oven is not always present.

  • Page 12: Features Diagram

    FEATURES DIAGRAM 1 SAFETY INTERLOCK SYSTEM. 5 DOOR SEAL - Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage. 2 DOOR VIEWING SCREEN - Allows viewing of food. The screen is designed so that light can pass through, but not the 6 PLATE TRAY - Made of special heat microwave.
  • Page 13 FEATURES DIAGRAM (continued) 1 MICROWAVE indicator, showing 7 TIME SET PAD - Used to set the cooking microwaving in progress. time. 2 DEFROST indicator, showing defrosting in 8 CHECK - Used to check cooking data. progress. 9 DOUBLE QUANTITY - Used to extend programmed cooking time.

  • Page 14: Operation Procedure

    OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3- pronged 240V AC 60Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the plate tray. The plate tray must always be in place during cooking.

  • Page 15: Controls

    CONTROLS TIME DEFROSTING When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch the DEFROST pad. The DEFROST indicator lights and " : 0" is DEFROST displayed.

  • Page 16: Cooking In One Stage

    COOKING IN ONE STAGE 1. Touch the POWER pad. The MICROWAVE and % indicators light. POWER (Select desired power level.) The display will show what you touched. 2. Touch the number pads for the This example shows power level 60. cooking time.

  • Page 17: Memory Function

    MEMORY FUNCTION This microwave oven has 20 programmable pads (1~20). 1. Touch the PROGRAM pad. The display will show “PROGRAM”. PROGRAM 2. Touch the number pads. ex)5 The display will show “PROG-05”. 3. Touch the POWER pad. The MICROWAVE and % indicators light. (Select desired power level.) 4.

  • Page 18: Start /+30 Sec

    START /+30 SEC START /+30 SEC allows you to reheat for 30 seconds at 100% (full power) by simply touching the START /+30 SEC pad. By repeatedly touching the START /+30 SEC pad, you can also extend reheating time to 5 minutes by 30 second increments.

  • Page 19: Child Safety Lock

    CHILD SAFETY LOCK The safety lock prevents unwanted oven operation such as by small children. To set, press and hold the STOP/CLEAR pad for 3 seconds, LOCK indicator lights. To cancel, press and hold STOP/CLEAR for 3 seconds, LOCK indicator goes off. POWER SAVE MODE This function is used for saving energy.

  • Page 20: Cooking Instructions

    COOKING INSTRUCTIONS Utensil Guide Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry.

  • Page 21: Microwaving Principles

    MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones. HOW MICROWAVES COOK FOOD Microwave oven is a Group 2 ISM equipment in which radiofrequency energy is intentionally generated and used in the form of electromagnetic radiation for the treatment of material.

  • Page 22: Cooking Techniques

    COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and The colder the food, the longer it takes to heat cakes, require standing time(inside or outside of up. Food from a fridge takes longer to reheat than the oven) after cooking, to allow heat to finish food at room temperature.

  • Page 23: Defrosting Guide

    DEFROSTING GUIDE ▶ Do not defrost covered meat. Covering might allow ▶ When defrosted, food should be cool, but softened in all cooking to take place. Always remove outer wrap and areas. If still slightly icy, return to microwave oven very tray.

  • Page 24: Cooking Chart

    COOKING CHART Power Cooking Time Item Special Instruction Level Per lb./450g MEAT - Chilled meat and poultry should be removed Beef joint - Rare P-80 6-8 min. from the refrigerator at least 30 minutes - Medium P-80 7-9 min. before cooking. - well done P-80 9-11 min.

  • Page 25: Reheating Chart

    REHEATING CHART • Baby food particularly needs to be checked carefully before serving to prevent burns. • When heating pre-packaged ready-cooked foods, always follow the pack instructions carefully. • If you freeze foods which were bought from the fresh or chilled counters, remember that they should be thoroughly thawed before following the heating instructions on the packed.

  • Page 26: Vegetable Chart

    VEGETABLE CHART Use a suitable glass pyrex bowl with lid. Add 30-45ml cold water(2-3 tbsp.) for every 250g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

  • Page 27: Care Of Your Microwave Oven

    CARE OF YOUR MICROWAVE OVEN Turn the oven off before cleaning. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, plate tray, stirrer cover and inlet cover wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.

  • Page 28: Use Your Microwave Oven Safely

    USE YOUR MICROWAVE OVEN SAFELY General Use Do not attempt to defeat or tamper with safety Do not operate the oven if door seals or sealing interlocks. surfaces are damaged; or if door is bent; or if hinges Do not place any object between the oven front are loose or broken.

  • Page 29: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE Refer to following checklist, you may prevent an unnecessary service call. * The oven doesn't work; 1. Check that the power cord is securely plugged in. 2. Check that the door firmly closed. 3. Check that the cooking time is set. 4.

  • Page 30: Questions And Answers

    QUESTIONS AND ANSWERS * Q : I accidentally ran my microwave oven * Q : What does “standing time” mean? without any food in it. Is it damaged? A : “Standing time” means that food should be A : Running the oven empty for a short time will removed from the oven and covered for not damage the oven.
