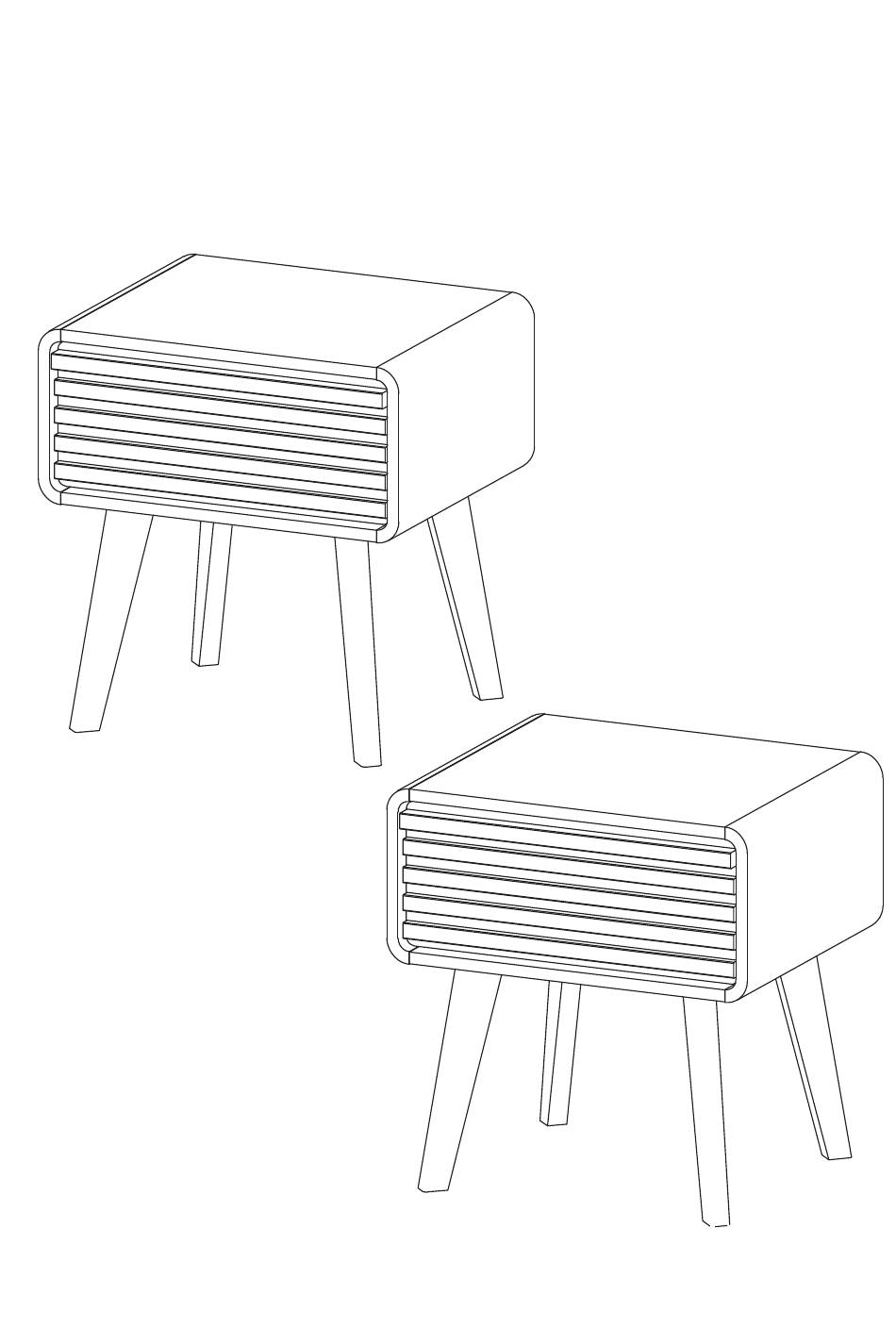

- Page 1 NIGHTSTAND SET OF 2 A S S E M B LY I N S T R U C T I O N S...
- Page 2 Join us! We’ve got more for you. Be part and enjoy: • Privileged Customer Care • 10% O Your Next Purchase (no min spend) • 1-Year Free Warranty • Early Access To Upcoming Launches For any enquiries or issues regarding your purchase, you can contact us directly .
- Page 3 Before you start... Ensure you have received all cartons and Make sure you have cleared enough space familiarize yourself with the workload. Make in your home for the assembly. We sure there are enough helping hands to recommend protecting your floor with a assist you, and that you have allocated the mat or cardboard to avoid scratches during time required to assemble your new product.
- Page 4 Parts NIGHTSTAND SET OF 2 | 04...
- Page 5 Hardware x2 Cambolt Allen Key Screw Ø 6 x 35 mm M 6 x 10.5 mm Camlock Big Screw Floor Protector Ø 15 mm M 7 x 50 mm Camlock Small Rail Ø 12 mm Dowel Big Screw Ø 8 x 30 mm M 3.5 x 13 mm Dowel Small Screw...
- Page 6 Step 1 Ensure your floor is properly protected, then take out board No.1, No.2, No.11 and 4 pcs of leg No.5. We recommend using cardboard or foam to lift up the boards so as to avoid scratches due to assembly actions. Screw cambolt A to board No.
- Page 7 Step 2 Take out board No.3 and No.4. Screw cambolt A into the indicated holes and tighten it. Take out rail H and follow carefully the correct position according to the illustration. The roller of the rail must be positioned on the right position. Then use screw K to tighten it.
- Page 8 Step 3 You may require an extra pair of hands to complete this step. Hold and let board No.2 stand on the side. Install the 4 pcs of leg No.5 onto the board No.2 at four corners. Engage the dowel previously installed and then insert screw G and tighten to fix the legs.
- Page 9 Step 5 You may require an extra pair of hands to complete this step. Install board No.4 to the side of table top body. Please take note carefully the correct position for placing the board No.4, according to the illustration. Engage cambolts previously installed on board No.4 into holes on the table top body.
- Page 10 Step 7 Prepare the drawer assembly by taking out board No.6, 7 & 8. Screw cambolt A to drawer front panel board No.6. Plug in dowel E to the side drawer panels board No.7 & 8. *Don’t screw too deep Step 8 Install the drawer side panel No.7 and 8 to the front panel No.6 by engaging the...
- Page 11 Step 9 Face the drawer downwards. Install the rail H at both sides of the drawer. Please ensure the positioning of the rails is the same as illustrated. Align the rails properly and use screw I to tighten the rails as illustrated.
- Page 12 Congratulations! You have finished assembly 1 set of the NIGHTSTAND SET OF 2. Please continue to assembly remaining 1 set by repeating Finished! Congratulations! We’re almost there! Please perform following checks to ensure assembly is properly done. • Ensure there is no loose camlock or screw. •...
-
Page 13: Care Instructions
Care Instructions Your furniture, if treated with respect and love, will last you a long time. Each piece requires light maintenance to maximize its longevity. Few quick tips before using this product: Recommended weight limit for the table top is 20lbs and 10lbs for the drawer. Avoid uneven weight distribution for long time as it may cause damage to the product shape. -
Page 14: Frequently Asked Questions
Frequently Asked Questions 1. What should I do if my product received is incomplete? products are flat packed and come in separate boxes. Once your order has dispatched and been sent with Fedex, you will receive an email with tracking information. Please note that Fedex may deliver your boxes in separate deliveries. -
Page 15: Warranty & Return
Warranty & Return 1 YEAR LIMITED WARRANTY STATEMENT FOR MANUFACTURING DEFECTS Please read this limited warranty carefully. To maintain your warranty, you will need to comply with the conditions stated here. This warranty is for manufacturing defects only and does not cover damages as a result of misuse. - Page 16 The Return Returns are to be made within 30 days of the date you received the product. To initiate return request, please message us or contact our customer service team with your reason of returning so we can facilitate the request and issue return authorization to you. Please note the policy is subject to the conditions below: Only undamaged items in original packaging will be accepted under the Returns Policy.
