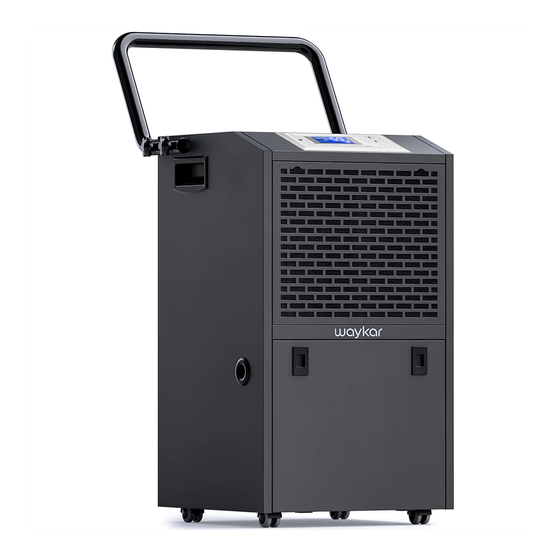

- Page 1 Commercial Dehumidifier Please read the manual carefully before using the unit PD606B USER MANUAL...
- Page 2 TO ACCESS CUSTOMER SUPPORT FASTER If there is any problem of the product, please contact Waykar Customer Service at support@waykar.com with your Purchase Order ID to help you...
- Page 3 BEFORE FIRST USE: To prevent any internal damage, it is very important to keep refrigeration units (like this one) upright throughout their journey. Please leave it standing upright and outside the box for 24 HOURS before plugging it in.
-
Page 4: Table Of Contents
Safety Instructions..............01 Parts Description ...............02 Control Interface ................03 Operation Instructions...............04 Cleaning & Maintenance ............10 Common Faults & Solutions............11 Special Notes ................13 Technical Parameters..............15 Warranty&Contact Us..............16 The graphics and functions provided in this manual may not be the same as the actual product. Please always refer to the actual product. The model of the machine on the manual is for reference only. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Safety Notes: Do not insert fingers or other objects into the air outlet. This appliance should not be used under the environment below 41℉. Special Note: When the display screen does not light up, it does not mean the power has been disconnected. -
Page 6: Parts Description
PARTS DESCRIPTION Hand Button Continuous (To access the water tank) Drainage Port... -
Page 7: Control Interface
1. Control Panel Controller Defrost Water Full Button Instructions Press to turn on or turn off the machine Set the humidity up Set the humidity down Press to initiate the auto-start or Confirm the setting auto-stop feature. - Page 8 2. Setting Setting Humidity In power-on status, you can press Up/Down button to set the humidity range between 10%-98%RH. When it starts to work, the machine will first automatically detect and show the room's humidity. You can press "Up" button to change the humidity slection in 1%RH increment or press "Down"button to change the humidity selection by 1%RH decrement.
-
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Power off Memory Function ● After the device is powered on, it will automatically resume the working status before power off. ● If the machine is running before power outage, the machine will automatically enter power-on status, and maintain the previous setting parameters. ●... - Page 10 OPERATION INSTRUCTIONS 3. Display Status Description When the fan is delayed, the running icon " Running " will flash, and if the fan is running, the running icon " Running " will be on, otherwise it will be off. When the compressor is delayed, the dehumidification icon " "...
- Page 11 2. If E3, E5, E6, E8 or E9 alarms, the machine needs to be cut off the power supply to restart after troubleshooting. 3. When Ec occurs, the operation of the machine will not be controlled. If the malfunction is still present, please don't hesitate to contact Waykar Customer Service email at support@waykar.com...
- Page 12 OPERATION INSTRUCTIONS 5. Empty the Water Tank Two ways are available to remove the collected water. Use The Water Tank When the water tank is already full, the " WATER FULL " indicator will light up, the dehumidifier will automatically shut down until the tank has been emptied and placed back to the unit.
- Page 13 OPERATION INSTRUCTIONS 6. Continuous Drainage Pull out the power supply, open the door, take out the water tank, insert the water hose into the continuous drainage port, connect it with drainage outlet and put back the water tank. Power the machine again to start the operation. The outlet of the water hose should be lower than the continuous drainage port by more than 6 inches, and the hose can not be bent during the drainage process, or the water will be blocked and can not flow out.
-
Page 14: Cleaning & Maintenance
OPERATION INSTRUCTIONS Turn the dehumidifier off and remove the plug from the wall outlet before cleaning. A-Cleaning the dehumidifier body Please use a soft and a slightly wet textile or cloth to clean it. B-Cleaning filter 1. 1.Pull out the filter 2. -
Page 15: Common Faults & Solutions
Waykar Customer Seryice to get further assistance. Pull out the water tank and put it... - Page 16 Warning If the dehumidifier is still not working properly as expected and the troubleshooting steps or solutions above may not resolve the issue, please unplug the power and shut down the dehumidifier, then contact Waykar Customer Service at support@waykar.com...
-
Page 17: Special Notes
Place the drainage hose well when drain water conti- nuously so as to flow the water freely. If work in a cold temperature that could freeze the water, then the continuous drainage may not be applicable. -
Page 19: Technical Parameters
MODEL D606B POWER SOURCE 120V-60Hz RATED POWER 1000W RATED CURRENT 8.8A MOISTURE REMOVAL CAPACITY (65℉/60%RH) 47 Pints/Day MOISTURE REMOVAL (80℉/60% RH) 75 Pints/Day MOISTURE REMOVAL (86℉/80% RH) 126 Pints/Day MOISTURE REMOVAL (95℉/90% RH) 155 Pints/Day INPUT POWER(65℉/60% RH) 515W INPUT CURRENT(65℉/60% RH) 4.6A IEF(65℉/60% RH) 1.80liters/kWh... -
Page 20: Warranty&Contact Us
CONTACT US Warranty Waykar offers a 12-month warranty to all of our products together with the original proof of purchase when a defect occured, including those newly purchased and unused, from Waykar or through an authorized reseller, wholly or substantially, or as a result of faulty manufacturing parts, or workmanship during the Warranty Period. - Page 22 We are expecting to see our products fulfill your life and hear your voice. Your satisfaction means a lot to us. Please tag us if you share a snap on your social media.
