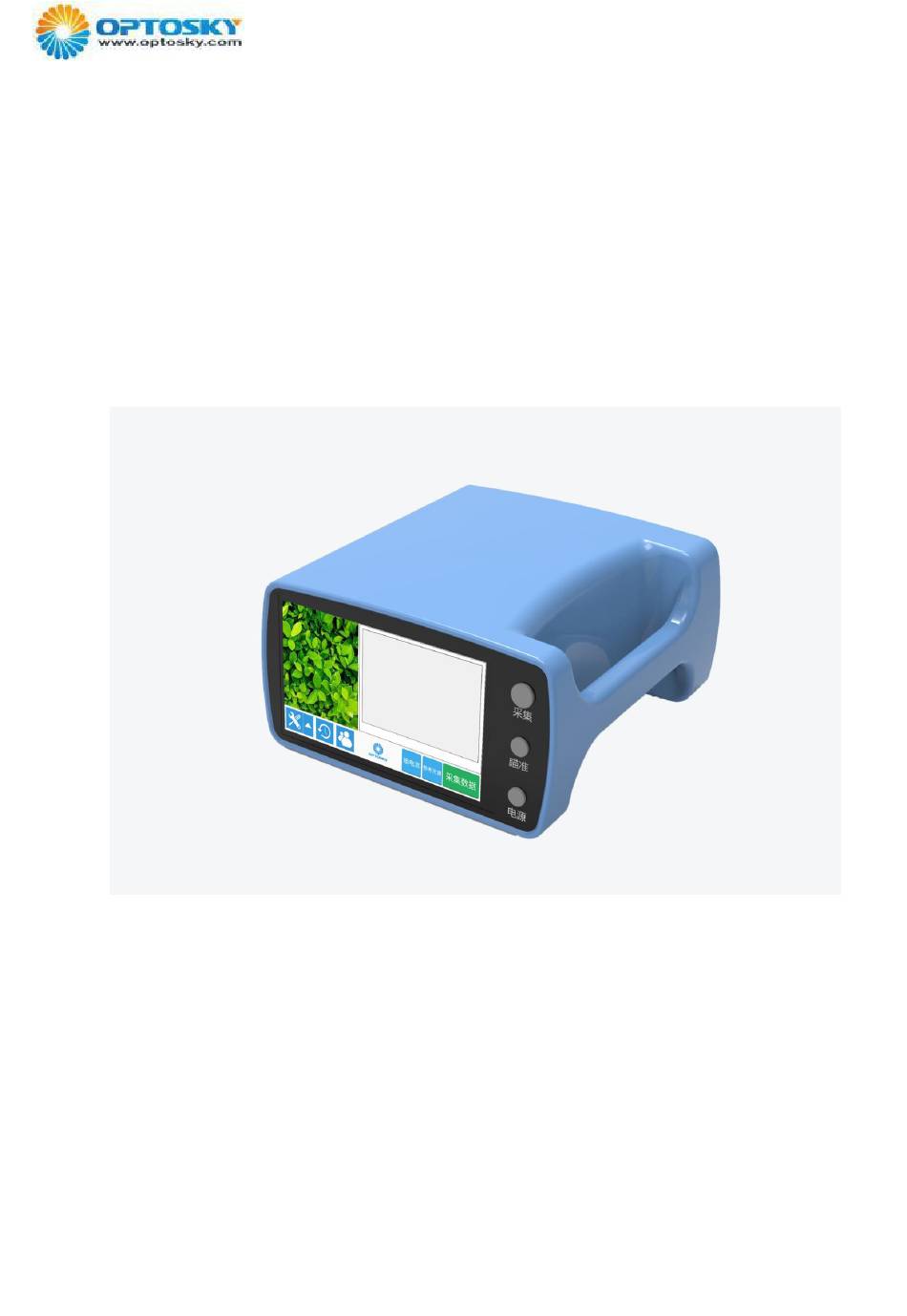

- Page 1 ATP9100(F) Handheld Field Spectroradiometer User Manual ATP9100(F) Handheld Field Spectroradiometer User Manual...
-
Page 2: Table Of Contents
ATP9100(F) Handheld Field Spectroradiometer User Manual CONTENT 1 SPECIFICATION..........................2 2 TECHNICAL SPECIFICATION:......................2 3 INTRODUCTION..........................3 3.1 P ..........................3 OWER BUTTON 3.2 A ..........................3 IMING BUTTON 3.3 S ..........................4 CAN BUTTON 3.4 M ..........................4 CREEN 3.5 P /USB ...........................4... -
Page 3: Specification
ATP9100(F) Handheld Field Spectroradiometer User Manual 1 Specification Optosky ATP9100 is a new handheld hyperspectral field spectroradiometer that employs spectral range between 300-1100nm, and it's applied to fields of remote sensing measurement, crop monitoring, research of forest and oceanography etc. -
Page 4: Introduction
ATP9100(F) Handheld Field Spectroradiometer User Manual 3 Introduction Handle Scan button Aiming button Main screen Power button Power/USB Port PC port Camera Laser aim at FOV lens 3.1 Power button Long press power button till screen lighting up can start the device. Built-in Li-battery can be charged with adaptor. -
Page 5: Scan Button
ATP9100(F) Handheld Field Spectroradiometer User Manual 3.3 Scan button Users can press scan button to scan spectral data, one time press can save the last scan data, but long press can save continuous scan spectral data. 3.4 Main Screen 5-Inch HD touch screen 720×1080, brief interface, easy-to-operate. -
Page 6: Main Interface
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.1. 1 User login interface First login user account and password are available in: User account: supportAdmin; PSW: 123456 Remind: It’s suggest to revise password after login in order to ensure data safety. -
Page 7: Setting
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.2. 1 Software main interface Setup ：Click it to access to configuration setting. Measure Types ： Four types are available for selection including absorbance, irradiance, reflectance, and spectral intensity. Historical Records Click historical records can review, export and delete historical records. -
Page 8: Configuration
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.3.2 Setting and select measure items 4.3.1 Configuration 【 Scan Times】：System can get average base on scan times. 【Integration Time】：Set time to scan spectrum of the sample. *Remark ： Scan times and integration time are not fixed value, it’s needed to confirm base on light intensity and user requirement, sometimes it takes many times to try out suitable integration time to set. -
Page 9: Scan Data
ATP9100(F) Handheld Field Spectroradiometer User Manual 4.4 Scan data 4.4.1 Scan spectral intensity Click 【▲】, select spectral intensity refer to Fig 4.4. 1. 1, and setup scan times and integration time, click save. System warn of click to save parameters or not refer to Fig 4.4. - Page 10 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.1.3 Warning of dark current acquisition Fig 4.4.1.4 Complete dark current acquisition Click scan data on screen or press scan button at the side, system can continuously scan data, click save data refer to Fig 4.4.1.5, input file name and click confirm can save the last piece of data, click cancel the save.
-
Page 11: Scan Reflectance
ATP9100(F) Handheld Field Spectroradiometer User Manual If the acquisition setting is multiple acquisition, and the system can save al l scan data,save data file name increased from 1 to the last number, eg: if contin uous 4 piece of data, input file name is A, so that file name can automaticall y save to A-1~A-4, the saved data can be reviewed from the historical recor ds refer to Fig4.4.1.6. - Page 12 ATP9100(F) Handheld Field Spectroradiometer User Manual Setup scan times and integration time, click save, system can popup a remind if click to save parameters refer to Fig 4.4.2.2 Fig 4.4.2.2 Setup and save parameters Disassemble FOV lens, use cap to cover interface between fiber and lens refer to Fig 4.4.
- Page 13 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.2.4 Complete scan dark current Click reference spectrum can remind an information refer to Fig 4.4.2.5, click confirm to complete scan reference spectrum. The reference spectrum can be save to the device till the next scan again, it’s recommend to rescan reference spectrum while light intensity change or condition change in order to ensure accurate detect result.
-
Page 14: Scan Irradiance
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.2.7 Historical records *Suggestion ： setup a suitable integration time can set spectral intensity above 20,000. 4.4.3 Scan irradiance Click【▲】to select irradiance refer to Fig 4.4.3. 1 Fig 4.4.3.1 Select irradiance Setup integration time and scan times, position the device is vertical to the floor, click angles correction to correct a angle of zero. - Page 15 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.3.2 Setup and save parameters Disassemble FOV lens, use cap to cover interface between fiber and lens refer to Fig 4.4. 1.3, click dark current refer to system warning info in Fig 4.4.3.3 Click confirm...
-
Page 16: Scan Absorbance
ATP9100(F) Handheld Field Spectroradiometer User Manual Uncover the cap and equip cosine corrector, click scan data on the screen or press scan button at the side, the system start continuous scan data, click save data refer to Fig 4.4.3.5, input file name and click confirm can save the last data, click cancel the saved. - Page 17 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.4.1 Select absorbance Setup scan times and integration time, click save, the system popup a warning click if save parameters or not refer to Fig 4.4.4.2 Fig 4.4.4.2 Setup and save parameters Disassemble FOV lens, use cap to cover interface between fiber and lens refer to Fig 4.4.
- Page 18 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.4.4 Complete scan dark current Click reference spectrum, the system popup a warning of message refer to Fig 4.4.4.5, click confirm to complete reference spectrum Fig 4.4.4.5 warning message of scan reference spectrum Long press scan button at the side, system starts continuously scan data, click save the data refer to Fig4.4.4.6, input file name click confirm can save the current data,...
-
Page 19: Green Plant Inspection
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.4.7 Historical records Long press scan button at the side, and the system can save all scan data, save data file name increased from 1 to the last number, eg: if continuous 5 piece of data, input file name is C, so that file name can automatically save to C-1 ~C-5. - Page 20 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.5.2 Setup and save parameters Click dark current refer to system warning info in Fig 4.4.5.3 Click confirm scan dark current, complete dark current acquisition, then dark current can be saved in the device, if the user do not scan dark current again, it can use the last dark current value refer to 4.4.5.4.
- Page 21 ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.5.5 Complete reference spectrum Long press scan button at the side, system starts continuously scan data, click save the data refer to Fig4.4.5.6, input file name click confirm can save the current data, click cancel the saved, the saved data can be reviewed from the historical records refer to Fig 4.4.5.7...
-
Page 22: Historical Records
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.4.5.7 Historical records Long press scan button at the side, and the system can save all scan data, save data file name increased from 1 to the last number, eg: if continuous 5 piece of data, input file name is C, so that file name can automatically save to C-1 ~C-5. -
Page 23: Rename Historical Records
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.5. 1.3 Spectrum zoom Fig 4.5. 1.4 Plant Fig 4.5. 1.5 Parameter 4.5.2 Rename historical records... -
Page 24: Export Data
Fig 4.5.3. 1, click confirm to export. Fig 4.5.3. 1 Export data warning Export data is saved in the file of Storage\ATP9100\txt refer to Fig 4.5.3.2, save the data format in TXT, users can connect spectrometer USB port to PC to copy the data... - Page 25 Fig 4.4.2 showing 5 records of continuous scan reflectance data are saved to a file txt refer to Fig 4.5.3.3, export data is saved in the file of storage \ATP9100\txt. Fig 4.5.3.3 Export all data of continuous scan can be saved in a file oftxt *Warning: If cable connection can not appear the device on the PC, it can be reviewed on the device if connected as media device, click “connected as media device”...
-
Page 26: Delete Data
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 4.5.3.5 Connect to media device（MTP） 4.5.4 Delete data Delete single data to access to historical records, long press the data required to be deleted, the system popup “ click to confirm to delete the record” refer to Fig 4.5.4.1, click confirm to delete. -
Page 27: Add Users
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 5.1 User management interface 5.1 Add users Click Add to access to the interface refer to Fig5. 1. 1 Fig 5. 1. 1 Click an interface of adding user Input user name, password, select roles, click save, the system remind success to add users, return to users list refer to Fig 5.1.2, click anywhere on the screen can return... -
Page 28: Revise & Delete Users
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 5. 1.2 Success to create users 5.2 Revise & delete users Access to user management interface, click the users to be revised to access to revise users interface refer to Fig 5.2. 1, input information again click save, the system can warn “success to revise users”... -
Page 29: System Information
Fig5.2.3 to confirm to delete. Fig 5.2.3 Warning: delete users 6 System information Click main interface OPTOSKY Logo refer to Fig6. 1 can refer to system information including product name, model, s/n, software version, company information etc refer to Fig 6.2... -
Page 30: Notes
ATP9100(F) Handheld Field Spectroradiometer User Manual Fig 6.2 Company information 7 Notes Take following notes during operation can extend life span of the device. 1 WorkingTemp./Humidityrange：-10°C～40 °C（working status）, -15°C～ 55 °C（storag e Temp.）; dry up till no condensation. It shall avoid to operate the device during sharp temperature shift in order to avoid electronic component shortcut to damage the device. - Page 31 ATP9100(F) Handheld Field Spectroradiometer User Manual A. Reference white board detect distance limit value lists: 1° 3° 5° 8° 10° 25° Φ10cm 570cm 190cm 110cm 70cm 55cm 20cm White board 25x25cm 1425cm 475cm 275cm 175cm 137cm 50cm White board 5x5inch...
