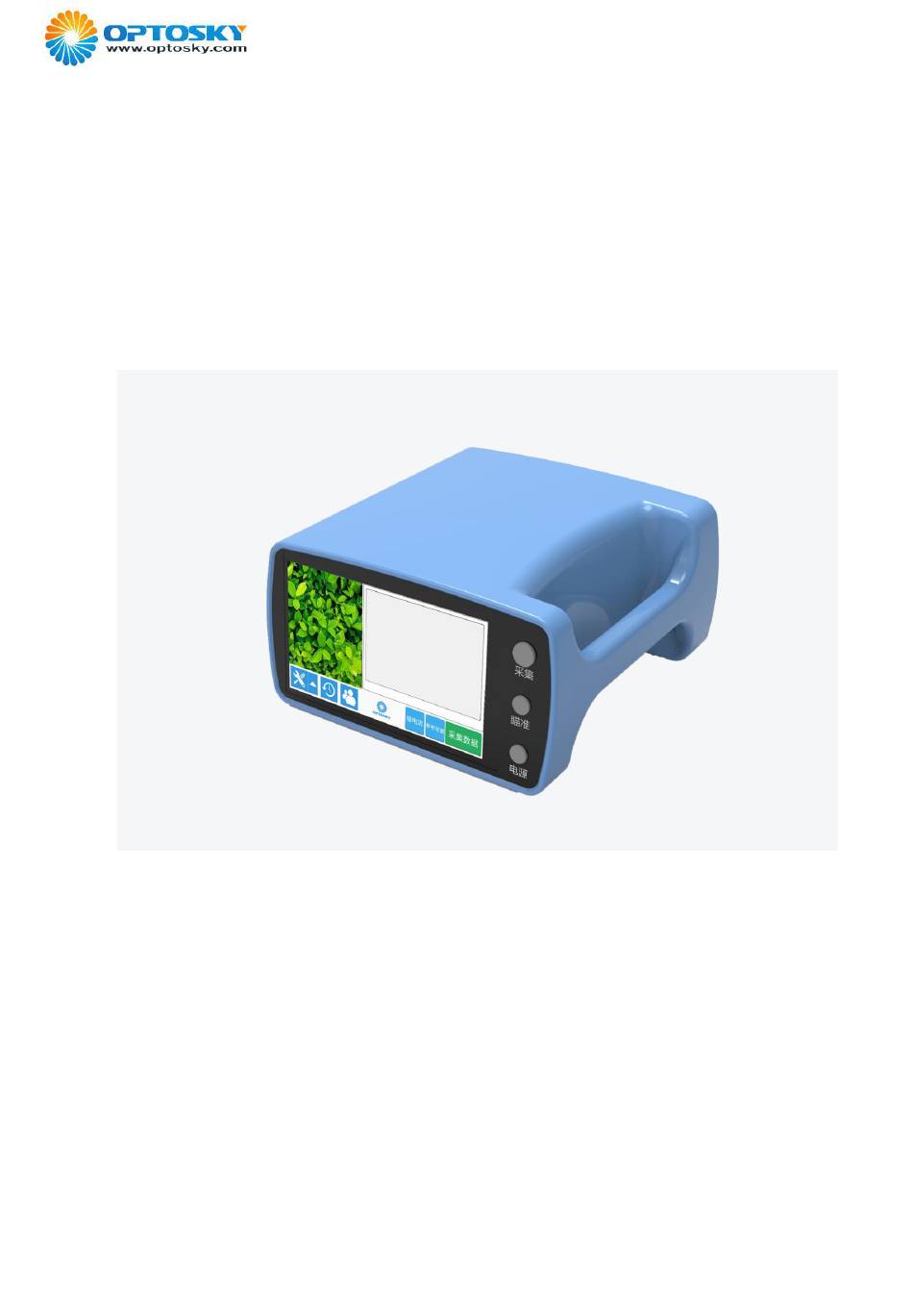

- Page 1 ATP9100 Handheld Field Spectroradiometer User Manual ATP9100 Handheld Field Spectroradiometer User Manual...
-
Page 2: Table Of Contents
ATP9100 Handheld Field Spectroradiometer User Manual CONTENT 1 SPECIFICATION..........................2 2 TECHNICAL SPECIFICATION:......................2 3 INTRODUCTION..........................3 3.1 P ..........................3 OWER BUTTON 3.2 A ..........................3 IMING BUTTON 3.3 S ..........................4 CAN BUTTON 3.4 M ..........................4 CREEN 3.5 P /USB ...........................4... -
Page 3: Specification
ATP9100 Handheld Field Spectroradiometer User Manual 1 Specification Optosky ATP9100 is a new handheld hyperspectral field spectroradiometer that employs spectral range between 300-1100nm, and it's applied to fields of remote sensing measurement, crop monitoring, research of forest and oceanography etc. -
Page 4: Introduction
ATP9100 Handheld Field Spectroradiometer User Manual 3 Introduction Handle Scan button Main screen Aiming button Power button Power/USB Port PC port Camera Laser aim at FOV lens 3.1 Power button Long press power button till screen lighting up can start the device. Built-in Li-battery can be charged with adaptor. -
Page 5: Operation Manual
ATP9100 Handheld Field Spectroradiometer User Manual *Remark: It prohibits to aim at eyes or skin while laser on. 3.3 Scan button Users can press scan button to scan spectral data, one time press can save the last scan data, but long press can save continuous scan spectral data. -
Page 6: Main Interface
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.1.1 User login interface First login user account and password are available in: User account: supportAdmin; PSW: 123456 Remind: It’s suggest to revise password after login in order to ensure data safety. Login：Select user name, input password, click login to access to main interface. -
Page 7: Setting
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.2.1 Software main interface 【Setup】：Click it to access to configuration setting. 【 Measure Types 】 ： Four types are available for selection including absorbance, irradiance, reflectance, and spectral intensity. 【 Historical Records 】 ： Click historical records can review, export and delete historical records. -
Page 8: Configuration
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.3.2 Setting and select measure items 4.3.1 Configuration 【Scan Times】：System can get average base on scan times. 【Integration Time】：Set time to scan spectrum of the sample. *Remark ： Scan times and integration time are not fixed value, it’s needed to confirm base on light intensity and user requirement, sometimes it takes many times to try out suitable integration time to set. -
Page 9: Scan Data
ATP9100 Handheld Field Spectroradiometer User Manual 4.4 Scan data 4.4.1 Scan spectral intensity Click【▲】, select spectral intensity refer to Fig 4.4.1.1, and setup scan times and integration time, click save. System warn of click to save parameters or not refer to Fig 4.4.1.2, click confirm to save parameters. - Page 10 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.1.3 Cap cover fiber interface Fig 4.4.1.4 Warning of dark current acquisition Fig 4.4.1.5 Complete dark current acquisition Click scan data on screen or press scan button at the side, system can continuously scan data, click save data refer to Fig 4.4.1.6, input file name and...
-
Page 11: Scan Reflectance
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.1.6 Complete scan data Long press scan button at the side, and the system can save all scan data, save data file name increased from 1 to the last number, eg: if continuous 4 piece... - Page 12 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.2.1 Select detect reflectance Setup scan times and integration time, click save, system can popup a remind if click to save parameters refer to Fig 4.4.2.2 Fig 4.4.2.2 Setup and save parameters Disassemble FOV lens, use cap to cover interface between fiber and lens refer to Fig 4.4.1.3, click dark current refer to system warning info in Fig 4.4.2.3...
- Page 13 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.2.4 Complete scan dark current Click reference spectrum can remind an information refer to Fig 4.4.2.5, click confirm to complete scan reference spectrum. The reference spectrum can be save to the device till the next scan again, it’s recommend to rescan reference spectrum while light intensity change or condition change in order to ensure accurate detect result.
-
Page 14: Scan Irradiance
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.2.7 Historical records *Suggestion ： setup a suitable integration time can set spectral intensity above 20,000. 4.4.3 Scan irradiance Click【▲】to select irradiance refer to Fig 4.4.3.1 Fig 4.4.3.1 Select irradiance Setup integration time and scan times, position the device is vertical to the floor, click angles correction to correct a angle of zero. - Page 15 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.3.2 Setup and save parameters Disassemble FOV lens, use cap to cover interface between fiber and lens refer to Fig 4.4.1.3, click dark current refer to system warning info in Fig 4.4.3.3 Click confirm scan dark current, complete dark current acquisition, then dark current can be saved in the device, if the user do not scan dark current again, it can use the last dark current value refer to 4.4.3.4.
-
Page 16: Scan Absorbance
ATP9100 Handheld Field Spectroradiometer User Manual Uncover the cap and equip cosine corrector, click scan data on the screen or press scan button at the side, the system start continuous scan data, click save data refer to Fig 4.4.3.5, input file name and click confirm can save the last data, click cancel the saved. - Page 17 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.4.1 Select absorbance Setup scan times and integration time, click save, the system popup a warning click if save parameters or not refer to Fig 4.4.4.2 Fig 4.4.4.2 Setup and save parameters Disassemble FOV lens, use cap to cover interface between fiber and lens refer to Fig 4.4.1.3, click dark current refer to system warning info in Fig 4.4.4.3...
- Page 18 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.4.4 Complete scan dark current Click reference spectrum, the system popup a warning of message refer to Fig 4.4.4.5, click confirm to complete reference spectrum Fig 4.4.4.5 warning message of scan reference spectrum Long press scan button at the side, system starts continuously scan data, click save the data refer to Fig4.4.4.6, input file name click confirm can save the...
-
Page 19: Historical Records
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.4.4.7 Historical records Long press scan button at the side, and the system can save all scan data, save data file name increased from 1 to the last number, eg: if continuous 5 piece of data, input file name is C, so that file name can automatically save to C-1 ~C-5. -
Page 20: Rename Historical Records
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.5.1.2 Select time 4.5.2 Rename historical records Access to historical records interface, click data as required, click the data, and click rename, the system popup a message of save file refer to Fig 4.5.2.1, input file name and click confirm can success to save. - Page 21 ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.5.3.1 Export data warning Export data is saved in the file of Storage\ATP9100\txt refer to Fig 4.5.3.2, save the data format in TXT, users can connect spectrometer USB port to PC to copy the data.
-
Page 22: Delete Data
ATP9100 Handheld Field Spectroradiometer User Manual Fig 4.5.3.4 Media device selection Fig 4.5.3.5 Connect to media device（MTP） 4.5.4 Delete data Delete single data to access to historical records, long press the data required to be deleted, the system popup “ click to confirm to delete the record” refer to Fig 4.5.4.1, click confirm to delete. -
Page 23: User Management
ATP9100 Handheld Field Spectroradiometer User Manual system popup deletes all data, the system popup a warning if delete all data or not” refer to Fig 4.5.4.2, click confirm can delete all data. Fig 4.5.4.2 Warning of delete all data 5 User management Click user management to access to the interface refer to Fig 5.1... -
Page 24: Revise & Delete Users
ATP9100 Handheld Field Spectroradiometer User Manual Fig 5.1.1 Click an interface of adding user Input user name, password, select roles, click save, the system remind success to add users, return to users list refer to Fig 5.1.2, click anywhere on the screen can return to users list and user has been successfully created. - Page 25 ATP9100 Handheld Field Spectroradiometer User Manual Fig 5.2.1 Revise users’ interface Fig 5.2.2 Success to revise users Access to user management interface, click the user to be revised to access the interface refer to Fig 5.2.1, click delete user, system warn “ click confirm to delete the user”...
-
Page 26: System Information
ATP9100 Handheld Field Spectroradiometer User Manual 6 System information Click main interface OPTOSKY Logo refer to Fig6.1 can refer to system information including product name, model, s/n, software version, company information etc refer to Fig 6.2 Fig 6.1 OPTOSKY logo 6.2 Company information... -
Page 27: Attachment
ATP9100 Handheld Field Spectroradiometer User Manual It shall power on the device about every month if long time keep unused condition, in order to prevent battery aging or damaged. It’s not recommended to run out of battery till the system being closed, it’d better use till still leaving 5% battery and charge the battery immediately. - Page 28 ATP9100 Handheld Field Spectroradiometer User Manual Lens Lens FOV： α Test distance： Test area diameter：D Test area：S D=2*L*tan(α/2) S=π*(D/2)^2 =π*(L*tan(α/2))^2...
