- Page 1 Misting Pump User Manual...
-
Page 2: Table Of Contents
1/21 Table of Contents 1. General Information ................. 1 2. Specifications ..................2 2.1 Dimensions ................3 2.2 Components ................3 3. Quick set-up ..................4 3.1 Installation ................. 4 3.2 Misting System Example............6 4. Operation Instructions ..............7 4.1 Dangers .................. -
Page 3: General Information
Mist-n-Go User Manual www.HydromistUSA.com 1. General Information This manual provides you with the information for proper use and maintenance of the misting pump. Please carefully follow the instructions provided. The manufacturer/supplier is not liable for any damage to people, goods, or to the system itself if the equipment is used differently from as described in this manual. -
Page 4: Specifications

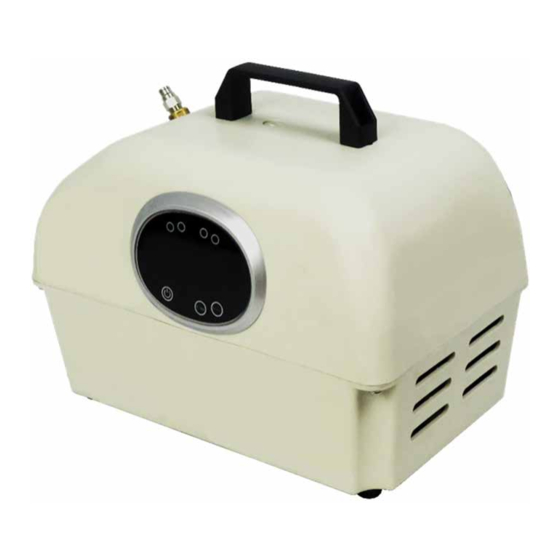

Mist-n-Go User Manual www.HydromistUSA.com 2. Specifications Mist-n-Go Pump Specifications Mist-n-Go Model F10-04-009 Part Number Operating Max: 850 psi Pressure 0.132 GPM @ 1450 RPM Flow rate 12 Volt DC Brushless – 150 Watts Continuous Duty Motor Input: 120 Volts AC, 2.0A Max, 60Hz... -
Page 5: Dimensions
Mist-n-Go User Manual www.HydromistUSA.com Dimensions (In Inches) Components Description of parts Top cover Carry Handle High Pressure Outlet Bottom cover LCD Control Panel Rubber feet... -
Page 6: Quick Set-Up
Mist-n-Go User Manual www.HydromistUSA.com 3. Quick set-up Installation Open the box and unpack any shipping materials. 3.1.1 Remove the pump assembly from the box and verify all 3.1.1.1 accessories present. Inspect the machine for any physical damage. 3.1.1.2 Inspect the pump for any signs of oil leakage. The pump ships 3.1.1.3... - Page 7 Mist-n-Go User Manual www.HydromistUSA.com Connect the high-pressure outlet 3.1.3 Connect the nylon hose of your misting system to the slip lock 3.1.3.1 connector on the high-pressure pump outlet. Plug in the power supply and wait for the LCD control panel 3.1.3.2...
-
Page 8: Misting System Example
Mist-n-Go User Manual www.HydromistUSA.com A Basic Misting System Example. Parts of a Basic Misting System Water supply into misting pump Misting pump assembly 1/4” High pressure nylon hose, connected to pump outlet In-line nozzle fitting w/ slip lock connectors Power transformer... -
Page 9: Operation Instructions
Mist-n-Go User Manual www.HydromistUSA.com 4. Operation Instructions Dangers THE FOLLOWING MUST BE OBSERVED IN ORDER TO PREVENT SERIOUS INJURY OR DEATH. Do NOT use on rainy days, in wet areas, or near open bodies of 4.1.1 water. Only trained personnel may operate this machine. Children and 4.1.2... -
Page 10: Cautions
Mist-n-Go User Manual www.HydromistUSA.com Cautions Do not operate the machine in temperatures below freezing 4.3.1 (0°C/32°F). Before use, check for oil inside the pump. If there has been any 4.3.2 leakage, fill the oil. Only use a power source with correct electrical voltage (V), 4.3.3... - Page 11 Mist-n-Go User Manual www.HydromistUSA.com The number of nozzles for the best misting effect will vary 4.3.12 depending on the pump used. If a lower number of nozzles than recommended is used, the system will be over pressurized, if too many nozzles are used, the pressure will drop and the atomization effect will be poor.
-
Page 12: Operation
Mist-n-Go User Manual www.HydromistUSA.com 5. Operation LCD Control Panel Description ① POWER Turn the pump on or off ② TIME Cycle through the time intervals ③ MAINTAIN Error indication (not a button) ④ MODE 1 (0/0) Continuous misting mode ⑤... -
Page 13: Operation Modes
Mist-n-Go User Manual www.HydromistUSA.com Operation Modes Continuous Misting: 5.2.1 Press ON/OFF button to start operation The machine starts and continues operation until the mode is changed, or powered off. Intermittent Misting: 5.2.2 Press the TIME button to cycle through misting modes, the machine will start intermittent misting based on the mode illuminated on the control panel. -
Page 14: Remote
Mist-n-Go User Manual www.HydromistUSA.com Remote Description ① Power on ② Power off ③ Not Used ④ Time Cycle Through Time Intervals Storage Please follow the steps below to drain water from the pump. 5.4.1 Disconnect the water supply to the pump. - Page 15 Mist-n-Go User Manual www.HydromistUSA.com · When the machine is not in use, please keep it indoors. · If exposed to rain, stop the machine, and immediately remove the plug to avoid electric shock or leakage. · Use caution when disassembling the pressure hose, water pipe, nozzles, and filter.
-
Page 16: Troubleshooting
Mist-n-Go User Manual www.HydromistUSA.com 6. Troubleshooting Before troubleshooting, disconnect the power source from the machine. FAULT CAUSE REMEDY Ÿ The misting nozzle is blocked. Ÿ Clean the nozzle. If it doesn’t work, change the nozzle. Ÿ Air is in the lines. -
Page 17: Maintenance
Mist-n-Go User Manual www.HydromistUSA.com 7. Maintenance Periodic Check and Inspection Interval Items Before 50hr 100hr 200hr 300hr Operation ◆ ◆ Main Components ◆ ◆ Check All Fittings are Tight ◆ ◆ Check Water Lines for Leakage ◆ ◆ Check Pump for Oil Leakage Inspect Top and Bottom Covers ◆... -
Page 18: Procedure For Oil Change
Mist-n-Go User Manual www.HydromistUSA.com Procedure for Oil Change Use ISO 68 oil or equivalent, available from Hydromist: ISO68 Pump Oil, 21oz. bottle: Part# F02-06-001 Always power off the machine and disconnect power before performing any maintenance or inspection. — Irregular maintenance and failure to change the oil regularly, will cause damage to the machine parts and/or shorten the service life. - Page 19 Mist-n-Go User Manual www.HydromistUSA.com There is an oil drain plug on the bottom side of the pump. Put a catch pan or other small container under the valve and unscrew the bolt to start draining the oil 7.2.7 After the oil has drained, reinstall and tighten the drain plug.
- Page 20 Mist-n-Go User Manual www.HydromistUSA.com 7.2.8 Loosen the screws to remove the top cover. You may need to unplug the LCD control panel cable to fully remove the top cover. 7.2.9 Unscrew the oil fill plug on top of the pump housing.
- Page 21 Mist-n-Go User Manual www.HydromistUSA.com 7.2.10 Add 1.5 to 2 oz. (40-60 ml) oil through refill hole. 7.2.11 Tighten the oil fill plug. Wipe up any spilled oil. Visually check the pump and motor to ensure all bolts, screws and connectors are tight and in good...
- Page 22 Mist-n-Go User Manual www.HydromistUSA.com 7.2.12 Replace the top cover, make sure to reconnect any cables you disconnected upon removal. Tighten the screws to secure the top cover back into place. RECYCLE YOUR USED OIL. In many places, it is a crime to dump used oil 7.2.13...
-
Page 23: Oil Changes And Checks
Mist-n-Go User Manual www.HydromistUSA.com Oil Changes and Checks Question Reasoning Actions — Use an hourly schedule to maintain oil changes. Overdue or — Change oil regularly (see expired changes will cause Section 7.1). component damage due to lack of lubrication. - Page 24 Mist-n-Go User Manual www.HydromistUSA.com Question Reasoning Actions 1. The highest and the lowest operating temperatures will — 1.1 Please select an oil with directly affect the viscosity adequate viscosity for your and lubricity of oil. operating environment. 2. In harsh work environments —...
-
Page 25: Warranty
Mist-n-Go User Manual www.HydromistUSA.com Warranty HYDROMIST ONE (1) YEAR LIMITED WARRANTY All Hydromist products are warrantied for a period of one (1) year for defects in workmanship and materials under normal use and service. This warranty is extended solely to the original purchaser. - Page 26 Mist-n-Go User Manual www.HydromistUSA.com Claims: All warranty claims must be submitted to Hydromist prior to the expiration of the warranty period. Hydromist will repair or replace any part of the fan product that is defective in material or workmanship. In order to initiate this warranty, a copy of original purchase invoice must be provided.
- Page 27 Mist-n-Go User Manual www.HydromistUSA.com Notes:_______________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
