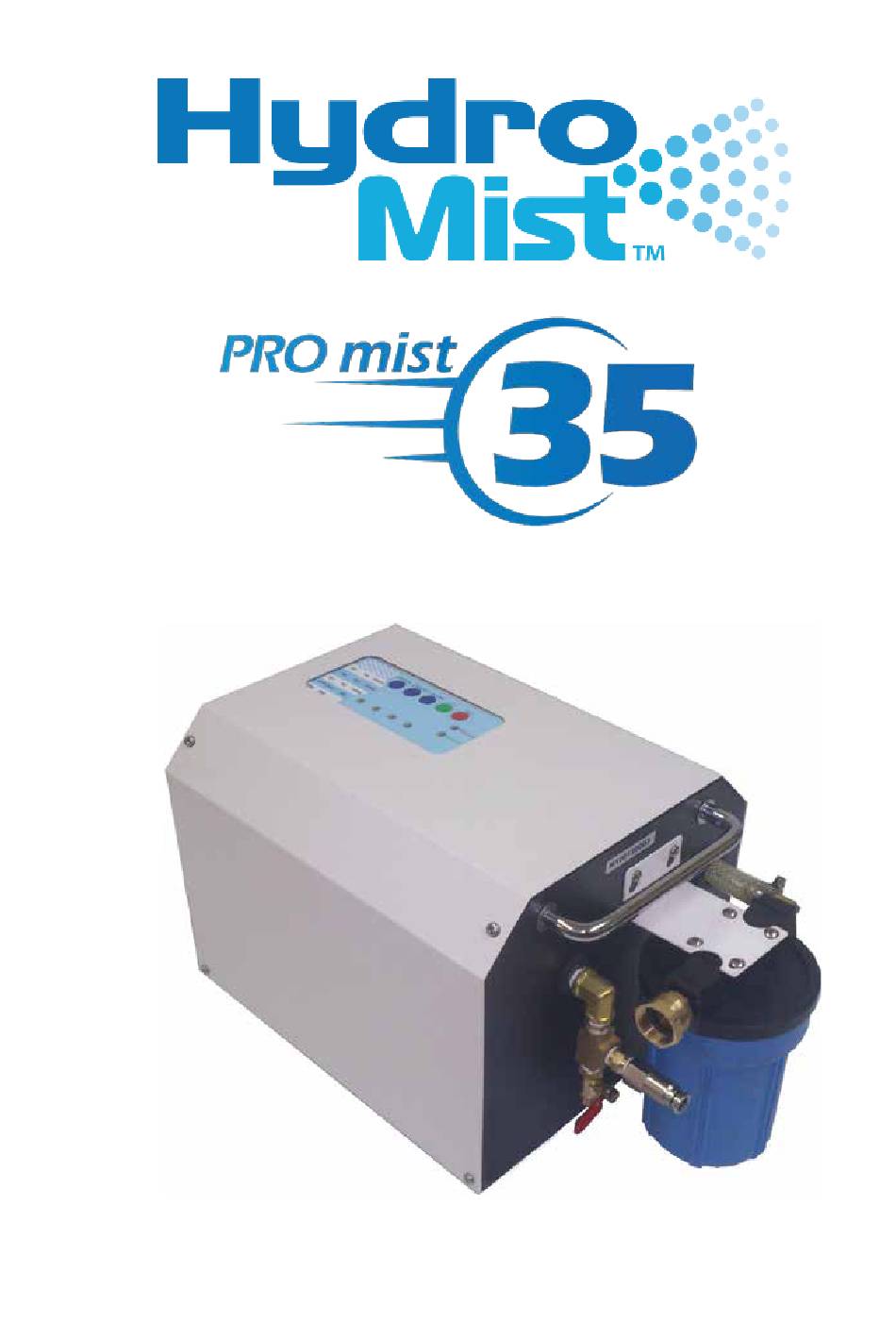

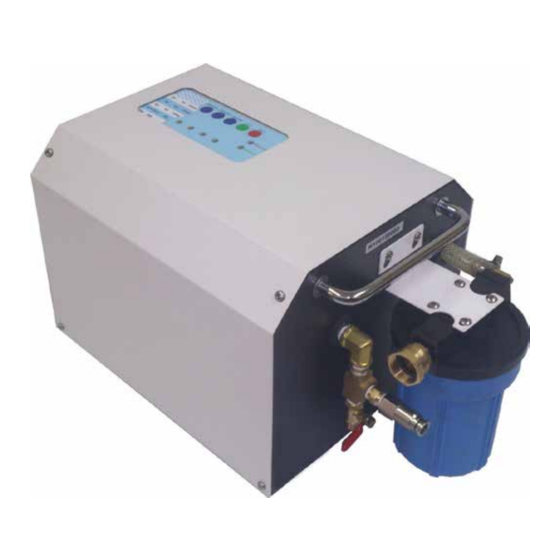

- Page 1 1/3 HP High Pressure Misting Pump User Manual...
-
Page 2: Table Of Contents
1/21 Table of Contents 1. General Information ................. 1 2. Specifications ..................2 2.1 Components ................3 3. Installation ..................4 4. Important Information ..............6 4.1 Dangers ..................6 4.2 Warnings ..................6 4.3 Cautions ..................7 5. Control Panel Instructions ..............8 5.1 First Time Operation .............. -
Page 3: General Information
Pro Mist 35 User Manual www.HydroMistUSA.com 1. General Information This manual provides you with the information for proper use and maintenance of the misting pump. Please carefully follow the instructions provided. The manufacturer/supplier is not liable for any damage to people, goods, or to the system itself if the equipment is used differently from as described in this manual. -
Page 4: Specifications
Pro Mist 35 User Manual www.HydroMistUSA.com 2. Specifications Pro Mist 35 Pump Specifications Pro Mist 35 Model F10-04-003 Part Number Operating Maximum = 1000 psi Pressure 0.2 GPM @ 1750 RPM Flow rate #2 Nozzles (.008”/0.2mm) Nozzle |Minimum = 4 | Maximum = 16|... -
Page 5: Components
Pro Mist 35 User Manual www.HydroMistUSA.com Components Part Descriptions Pump Cover Purge Outlet Hose Pump Cover Screw Filter Housing LED Control Panel Water Inlet Carry Handle Purge Valve Power Cord Plug 10 High Pressure Outlet Water Filter Wrench 12 Oil Fill Squeeze Bottle... -
Page 6: Installation
Pro Mist 35 User Manual www.HydroMistUSA.com 3. Installation The pump needs to be installed near an electrical and water connection. Place the pump in a location where water leaks or accumulation will not cause damage to nearby property or goods. - Page 7 Pro Mist 35 User Manual www.HydroMistUSA.com Connect the pump outlet to a misting system. The slip-lock outlet fitting provided is for high pressure 3/8” nylon tube. This pump is only compatible with high pressure misting systems, connections, rings, pipes, or hoses designed for 1000 PSI of water pressure. The pump will not work with medium or low-pressure misting components or systems.
-
Page 8: Important Information
Pro Mist 35 User Manual www.HydroMistUSA.com 4. Important Information Dangers OBSERVE THE FOLLOWING IN ORDER TO PREVENT SERIOUS INJURY OR DEATH. Do NOT use during severe storms, flooded areas, or near open 4.1.1 bodies of water. Only trained personnel may operate this machine. Children and 4.1.2... -
Page 9: Cautions
Pro Mist 35 User Manual www.HydroMistUSA.com Cautions Do not operate in temperatures below freezing (0°C/32°F). 4.3.1 Before use, check for oil leakage. If there has been any leakage, 4.3.2 fix the leak and fill the pump oil. Only use a power source with the electrical voltage (V), 4.3.3... -
Page 10: Control Panel Instructions
Pro Mist 35 User Manual www.HydroMistUSA.com 5. Control Panel Instructions The control panel has 5 buttons and 6 LED lights. Buttons LED Lights POWER (Green) WARNING (Red) MODE 1 CONTINUOUS ON (Green) MODE 2 MODE 1 ON (Green) MODE 3... -
Page 11: First Time Operation
Pro Mist 35 User Manual www.HydroMistUSA.com First Time Operation Follow these steps to purge the pump and misting system of air. 1) With your pump plugged in, and the water source turned on, open the ball valve at the high-pressure misting outlet on the pump. Keep the pump off for now. -
Page 12: Storage
Pro Mist 35 User Manual www.HydroMistUSA.com Storage Please follow the steps below to drain water from the pump. 5.2.1 Disconnect the water supply to the pump. Run the pump briefly with the ball valve open to expel any water from the internal pump cavities. There may be some intermittent spraying and drainage while the pump purges water from itself. -
Page 13: Troubleshooting
Pro Mist 35 User Manual www.HydroMistUSA.com 6. Troubleshooting Before troubleshooting, disconnect the power source from the machine. FAULT CAUSE REMEDY Ÿ The misting nozzle is blocked. Ÿ Clean the nozzle. If it doesn’t work, change the nozzle. Ÿ Air is in the lines. - Page 14 Pro Mist 35 User Manual www.HydroMistUSA.com The pump is equipped with a thermal overload protection device. This device behaves like a circuit breaker and protects the pump from damage due to excess heat or electricity. There is a reset button to allow the user to reset the device if it activates to protect the pump.
- Page 15 Pro Mist 35 User Manual www.HydroMistUSA.com The misting pump comes preset at a maximum outlet pressure of 1000 PSI for a system with 4 misting nozzles. The larger the system, the lower the total system pressure will be. If the pump produces more than 1000 PSI it can cause a noisy operating condition.
- Page 16 Pro Mist 35 User Manual www.HydroMistUSA.com Turn the knob counterclockwise to decrease the output pressure. Turn the knob clockwise to increase the output pressure.
-
Page 17: Maintenance
Pro Mist 35 User Manual www.HydroMistUSA.com 7. Maintenance Periodic Check and Inspection Interval Items Before 50hr 100hr 200hr 300hr Operation ◆ ◆ Main Components ◆ ◆ Check All Fittings are Tight ◆ ◆ Check Water Lines for Leakage ◆ ◆... -
Page 18: Procedure For Oil Change
Pro Mist 35 User Manual www.HydroMistUSA.com Procedure for Oil Change NOTE: The misting pump comes pre-filled with oil. Oil must be changed after first the 50-hour operation mark, and after every 250-300 hours of running. Use ISO 68 oil or equivalent, available from HydroMist: ISO68 Pump Oil, 21oz. - Page 19 Pro Mist 35 User Manual www.HydroMistUSA.com 7.2.7 There is an oil drain plug on the bottom side of the pump. Put a catch pan or other small container under the plug and unscrew it to start draining the oil. It is recommended to use an inexpensive plastic bin or other disposable catch pan that can be discarded after use.
- Page 20 Pro Mist 35 User Manual www.HydroMistUSA.com 7.2.10 Add up to 5 oz. of oil through the fill hole. Use the included oil fill squeeze bottle or a funnel to prevent spilling oil during the filling process. 7.2.11 Tighten the oil fill plug.
-
Page 21: Oil Changes And Checks
Pro Mist 35 User Manual www.HydroMistUSA.com Oil Changes and Checks Question Reasoning Actions — Use an hourly schedule to maintain oil changes. Overdue or — Change oil regularly (see expired changes will cause Section 7.1). component damage due to lack of lubrication. -
Page 22: Warranty
Pro Mist 35 User Manual www.HydroMistUSA.com 8. Warranty HYDROMIST ONE (1) YEAR LIMITED WARRANTY All Hydromist products are warrantied for a period of one (1) year for defects in workmanship and materials under normal use and service. This warranty is extended solely to the original purchaser. - Page 23 Pro Mist 35 User Manual www.HydroMistUSA.com Claims: All warranty claims must be submitted to Hydromist prior to the expiration of the warranty period. Hydromist will repair or replace any part of the fan product that is defective in material or workmanship. In order to initiate this warranty, a copy of original purchase invoice must be provided.
- Page 24 Pro Mist 35 User Manual www.HydroMistUSA.com Notes:_______________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
