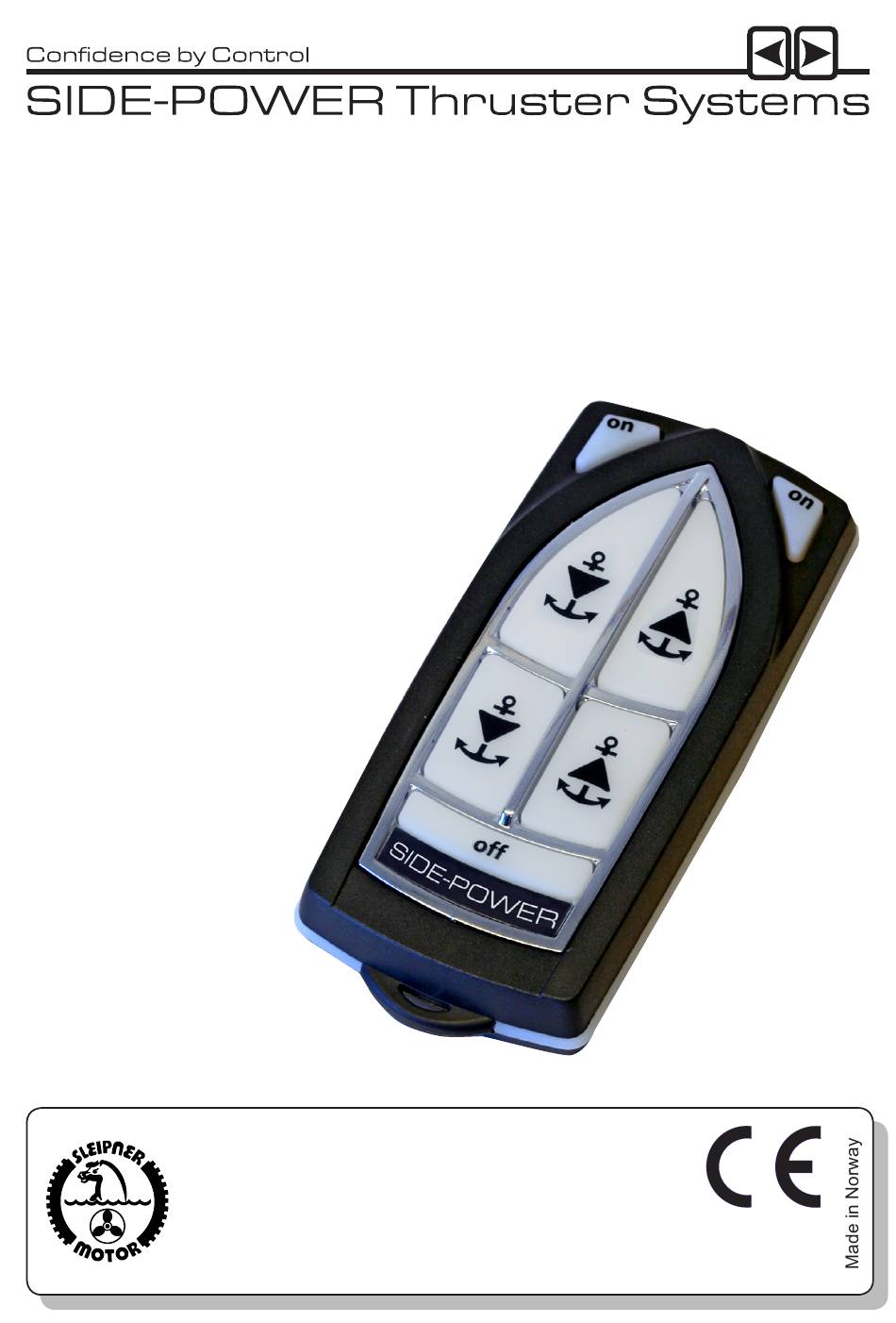

- Page 1 Installation & User Manual Radio Remote RC-12E SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway w w w . s i d e - p o w e r . c o m Tel: +47 69 30 00 60 s i d e p o w e r @ s l e i p n e r.
-
Page 2: Table Of Contents
Model range The radio remote control can control two independent windlasses. The receiver can receive the signals of up to four transmitters. Remote control kit (RC-12E) consists of: Receiver: Part no. RCR-1E Transmitter (incl. battery): Part no. RCT-12E Holding bracket for transmitter unit: Part no. RC-HOLDER Additional transmitters can be ordered separatly: Part no. -
Page 3: Technical Specifications
Technical specifications Transmitter Receiver Model RCT-12E RCR-1E Power feed 1 x 3V battery (type: CR2032) From windlass supply Frequency (MHz) 433,2 433,2 Operation temp. -10°C / +55°C -15°C / +55°C HxWxD (mm) 95x48x25 89x68x33 Weight (g) Voltage: 8-30V Load, max Operating range: 15m under normal operating conditions Important precautions •... -
Page 4: Receiver Installation
Receiver installation Prior to installation, it is important that the responsible installer reads this guide to ensure necessary acquaintance with this product. Warning! • Remote receiver power supply negative lead must be connected to the windlass negative lead. Caution! • Install the receiver minimum 1 meter (3ft) from high power cables and NMEA cables or other sources of electrical interference, i.e. - Page 5 Installation & User Manual, Radio Remote RC12E Page 5...
-
Page 6: Visual Wiring Diagram
Receiver installation If the receiver is mounted against a wall, use spacers Mount the receiver by using between the receiver and the the 2 screwholes. wall to avoid moisture in the receiver. Visual wiring diagram signal windlass up blue signal w.lass down grey windlass ctrl. - Page 7 Programming additional receivers Push the Pair Button with a plastic stick The original transmitter and receiver have the same factory preset code so that no programming is necessary. When additional transmitters are to be used, the receiver must be programmed again for all transmitters.
-
Page 8: Replacing The Batteries
Replacing the battery Battery WARNING: Before working on the transmitter, deactivate the transmitter and the receiver (push “OFF” on the transmitter(s)) and turn off the power to the receiver as well as the windlass mainswitch. 1. Open the transmitter. 2. Take out the battery by inserting a screwdriver or similar between battery and holder at point A, and gently flip the battery out, taking care not damaging the battery grips at point B 3. -
Page 9: User Precautions
Important user precautions • Ensure that you know the location of the main battery switch that disconnects the windlass from all power sources (batteries) so that the windlass can be turned off in case of a malfunc- tion. • How to activate the system: Turn on the main power source for the windlass system. - Page 10 Remote control “ON” Windlass 1 Windlass 2 Down Down Remote control “OFF” Auto-OFF appr. 4 min. Hold for 2 seconds How to use the remote control 1. Turn the main power switch for the windlass on. Turn on the power to the receiver. 2.
- Page 11 Electric schematics 4-lead & 1-lead connector Windlass 1 Windlass 2 Channel B Channel A External relays for windlass requiring signal output over Coil voltage depend of voltage supply. Output current of relay depend of load from winch. At least 3 time normal current. Installation &...
- Page 12 SIDE-POWER SERVICE CENTRES Argentina Estonia/Latvia/Lithuania Japan Spain Trimer SA Miltec Systems OÜ Turtle Marine Inc. Imnasa Marine Products Buenos Aires Tallin Nagasaki Girona Tel:+54 11 4580 0444 Tel: +372 5013997 Tel:+81 95 840 7977 Tel:+34 902 300 214 Fax:+54 11 4580 0440...
