VERSION # 21-05-11

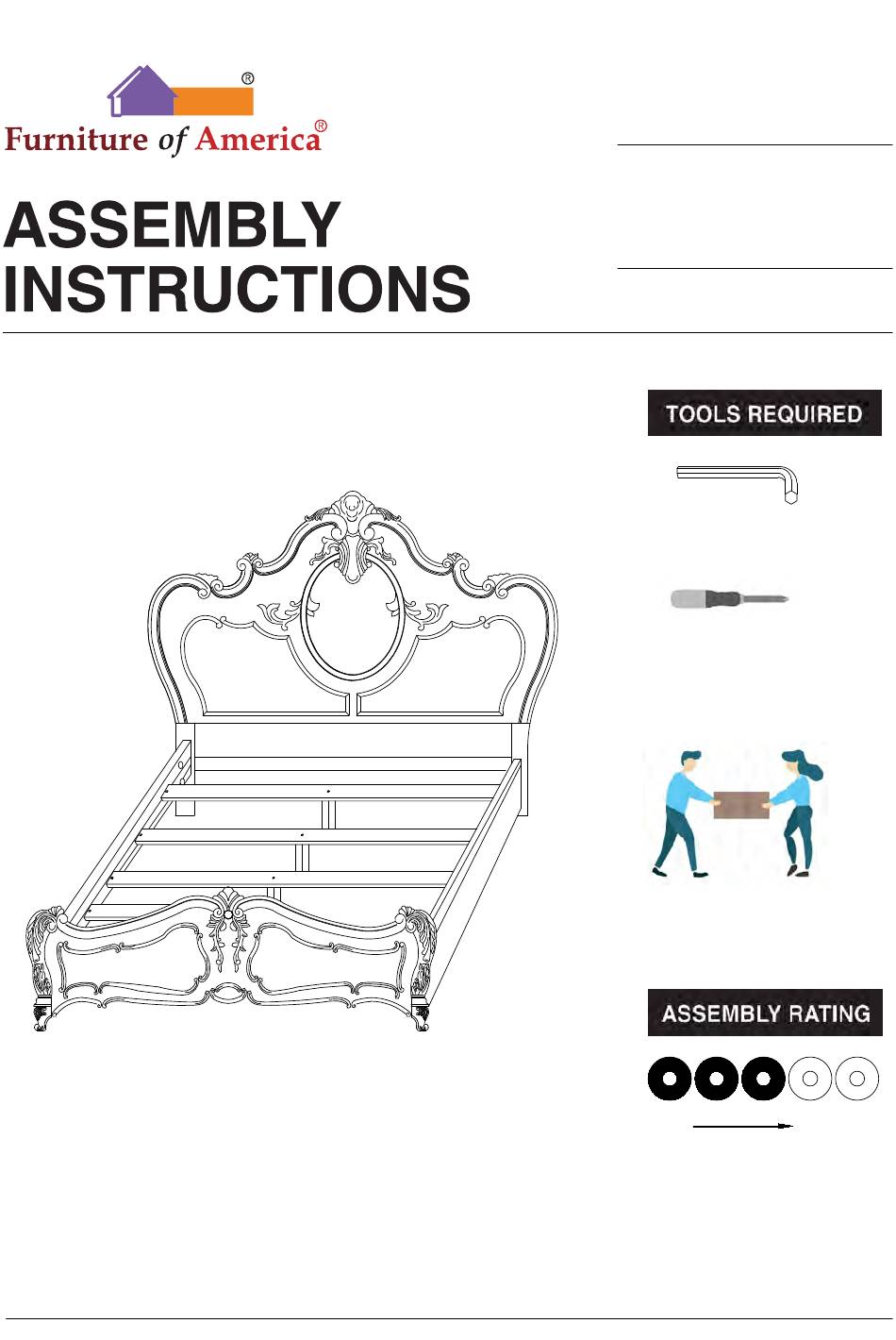

1 /10

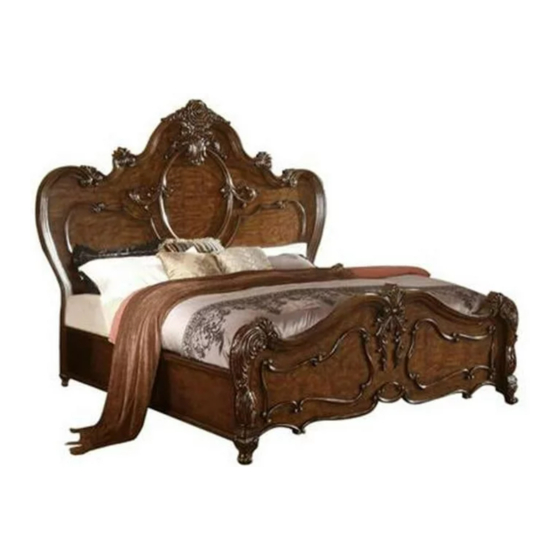

MODEL #
CM7183Q
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7183Q
Summary of Contents for Furniture of America CM7183Q
- Page 1 MODEL # CM7183Q Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 0...
- Page 5 CM7183Q #1 1pc #2 2pcs #3 1pc #4 1pc Headboard Headboard leg(L&R) HB Cross bar Footboard #7 4pcs #6 4 pcs #5 2pcs (Ø5/16") Slat support leg Siderail Slat 190x30x30mm #A 8pcs #B 8pcs #C 8pcs Bolt Ø5/16" x 1-3/4"...
- Page 6 #G 8pcs #H 8pcs #I 1pc Wrench 14mm Hex Nut (Ø5/16") Half Moon Washer (Ø5/16") 6 /10...
- Page 7 CM7183Q is packed in 3 cases Carton Disignation Part Hardware Headboard CM7183Q-HB Headboard leg(L&R) (2pcs) HB Cross bar #A x8pcs Footboard #B x8pcs #C x8pcs #D x1pc Slat (4pcs) CM7183Q-FB #E x12pcs #F x8pcs Slat support leg #G x8pcs 190x30x30mm...
- Page 8 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C) and screws Part #1 x1pc (#E). Part #2 x2pcs Hardware #A x4 pcs Hardware #B x4 pcs Hardware #C x4 pcs Hardware #E x4 pcs #B #C Align HB support (#3) to the HB...
- Page 9 ASSEMBLY INSTRUCTIONS Attach threaded studs (#F) to the headboard (#1) and footboard Part #4 x1pc (#4), then align side rails (#5) to the threaded studs (#F) on the Part #5 x2pcs headboard (#1) and footboard Hardware #F x8 pcs (#4). Secure by using hexnuts (#H) with washers (#G).
- Page 10 ASSEMBLY INSTRUCTIONS Align slats (#6) to the side rails (#5), then secure by using screws (#E). Hardware #E x8 pcs 10 / 10...
