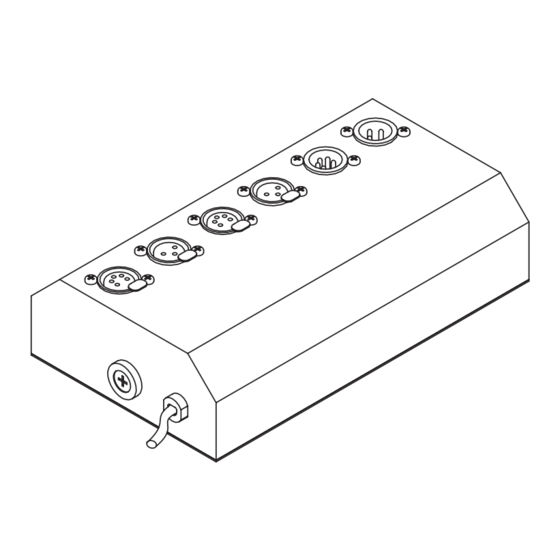

- Page 1 Service Manual BOM code(26-024-0040-00) Rev1.0 Website:www.highlite.nl E-male sales:slaes@highlite.nl E-mail export:export@highlite.nl...
- Page 2 Complete Exploded View & Parts List...
- Page 3 Physical Dimensions...
- Page 4 Complete Exploded View...
- Page 5 Complete Exploded View Parts List Item part Number Description 22-003-0003-00 Screws 23-150-0028-00 Top Cover 20-002-0019-00 Fuse Holder 20-001-0017-00 Fuse 25-003-0003-00 Cable NUT 17-001-0022-00 Power Cable 27-001-0534-00 KIT DMX-F DMX SOCKET 5PIN 22-001-0037-00 Screws 27-001-0217-00 KIT DD-2 23-001-0364-00 Chassis 25-014-0002-00 Rubber Feet 22-001-0037-00 Screws 27-001-0531-00...
- Page 6 PCB Schematic Diagrams...
- Page 7 Schematic Diagram for DD-2A...
- Page 8 Schematic Diagram for DD-2B...
- Page 9 Bill of Materials for KIT DD-2(27-001-0217-00) Item Part Number Description Location 01-004-0001-00 Regulator L7805CV 1.5A U3,U7,U10 01-005-0008-00 IC SN75176 DIP8 U1,U9,U11,U12,U15 01-006-0015-00 IC 6N137 QTC DIP8 U13,U14 02-001-0038-00 CF-Resistance 330 OHM R4,R6,R13,R15 02-001-0042-00 CF-Resistance 510 OHM 02-001-0062-00 CF-Resistance 4.7K OHM R5,R14 02-001-0091-00 CF-Resistance 100K OHM...
- Page 10 Bill of Materials for KIT DD-2 SMD (28-001-0759-00) Item Part Number Description Location 07-007-0087-00 SMD Coil L1-L15 18-001-0025-01 PCB DD-2...
- Page 11 Schematic Diagram for DMX-F...
- Page 12 Bill of Materials for KIT DMX-F(27-001-0531-00) Item Part Number Description Location 16-001-0121-00Header 2.00mm 3pin 16-001-0210-00XLR 3Pin 18-001-0248-00PCB DMX-F...
- Page 13 Bill of Materials for KIT DMX-F(27-001-0534-00) Item Part Number Description Location 16-001-0121-00 Header 2.00mm 3pin 16-001-0214-00 XLR 5Pin 18-001-0248-00 PCB DMX-F...
- Page 14 Schematic Diagram for DMX-M...
- Page 15 Bill of Materials for KIT DMX-M(27-001-0532-00) Item Part Number Description Location 16-001-0121-00 Header 2.00mm 3pin 16-001-0209-00 XLR Chassis Connectors 3Pin 18-001-0249-00 PCB DMX-M...
- Page 16 Bill of Materials for KIT DMX-M(27-001-0533-00) Item Part Number Description Location 16-001-0121-00 Header 2.00mm 3pin 16-001-0213-00 XLR 5Pin 18-001-0249-00 PCB DMX-M...
