- Page 1 MANUAL ENGLISH DB-1-4 Ordercode: 50780 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
DB-1-4 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Frontside..................................6 Backside ..................................6 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● DB-1-4 with Schuko power cable (1,5 m) ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. For adult use only. The device must be installed out of the reach of children. Never leave the unit running unattended.
-
Page 5: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the DB-1-4 is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the DB-1-4, with the mounting bracket, to the trussing system. ... -
Page 6: Return Procedure
DB-1-4 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

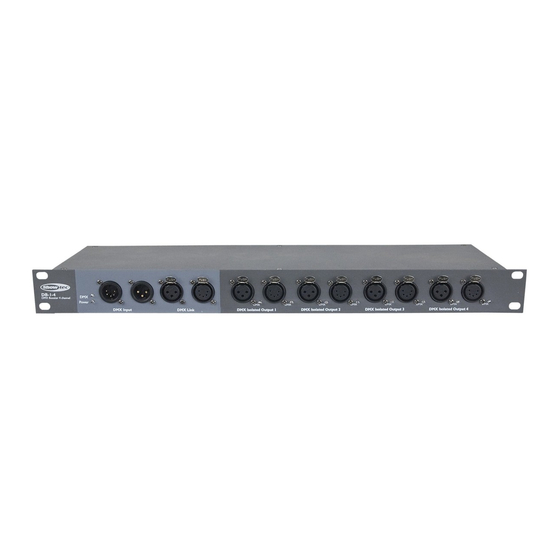

DB-1-4 Description of the device Features The Showtec DB-1-4 is a universal DMX-512 optical distributor. It is designed to distribute the incoming DMX signal, in daisy chain configurations, into 4 separate outputs with an additional "thru" port. Input voltage: 100-240V AC, 60/50Hz ... -
Page 8: Set Up And Operation
DB-1-4 Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. -
Page 9: Fixture Linking
DB-1-4 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 10: Maintenance
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the DB-1-4, as this may damage the unit and the warranty will become void. - Page 11 DB-1-4 Applies to Symptom Solution(s) Foggers & Dimmers & Lights Controllers Snow Chaser Auto shut off Check fan thermal switch reset . • Beam is very dim or Clean the optical system or replace a lamp. • not bright at all...
-
Page 12: Product Specification
DB-1-4 All Showtec lighting fixtures featuring stand-alone functions do not require additional settings, simply Stand alone mode • power up the fixture and it will automatically enter the stand-alone mode. Product Specification Model: Showtec DB-1-4 Input voltage: 100-240V AC, 60/50Hz... -
Page 13: Notes
DB-1-4 Notes Ordercode: 50780... - Page 14 DB-1-4 Ordercode: 50780...
- Page 15 DB-1-4 Ordercode: 50780...
- Page 16 ©2015 Showtec...
