sebaKMT COR C-300-RI User Manual

Correlator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Consultation with SebaKMT
User Manual
Correlator
COR C-300-RI
Mess- und Ortungstechnik
Measuring and Locating Technologies
Elektrizitätsnetze
Power Networks
Kommunikationsnetze
Communication Networks
Rohrleitungsnetze
Water Networks
Abwassernetze
Sewer Systems
Leitungsortung
Line Locating
1
Issue:
0.9 (03/2017) - EN
Article number:
88888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COR C-300-RI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for sebaKMT COR C-300-RI

Summary of Contents for sebaKMT COR C-300-RI

  • Page 1 Consultation with SebaKMT User Manual Correlator COR C-300-RI Mess- und Ortungstechnik Measuring and Locating Technologies Elektrizitätsnetze Power Networks Kommunikationsnetze Communication Networks Rohrleitungsnetze Water Networks Abwassernetze Sewer Systems Leitungsortung Line Locating Issue: 0.9 (03/2017) - EN Article number: 88888...
  • Page 2 Consultation with SebaKMT...
  • Page 3 © SebaKMT All rights reserved. No part of this handbook may be copied by photographic or other means unless SebaKMT have before-hand declared their consent in writing. The content of this handbook is subject to change without notice. SebaKMT cannot be made liable for technical or printing errors or shortcomings of this handbook.

  • Page 4: Terms Of Warranty

    This warranty does not apply to faults in the software supplied. During the period of warranty, SebaKMT agree to repair faulty parts or replace them with new parts or parts as new (with the same usability and life as new parts) according to their choice.

  • Page 5: Table Of Contents

    Terms of Warranty Contents Consultation with SebaKMT ................... 3 Terms of Warranty ......................4 Safety Instructions ................... 8 General Safety Instructions and Warnings ............8 General Notes ....................8 Technical description ..................10 Function ......................10 Features of the set ................... 11 Power supply ....................
  • Page 6 Terms of Warranty Correlation ......................31 6.6.1 Perform and display a correlation ..............31 6.6.2 Display and select audio blocks (Offline measurements only) ......32 6.6.3 Call up the correlation analysis menu .............. 33 6.6.4 Select a correlation method (Offline measurements only) ....... 34...
  • Page 7 Terms of Warranty...

  • Page 8: Safety Instructions

    It is important to observe the generally applicable regulations of the country in which the Working with products device will be operated, as well as the current national accident prevention regulations from SebaKMT and internal company directives (work, operating and safety regulations).
  • Page 9 Use genuine accessories to ensure system safety and reliable operation. The use of other parts is not permitted and invalidates the warranty. Repair and maintenance work has to be carried out by SebaKMT or authorised service Repair and partners using original spare parts only. SebaKMT recommends having the system maintenance tested and maintained at a SebaKMT service centre once a year.

  • Page 10: Technical Description

    Technical description Technical description Function The Correlux C-300-RI is a digital correlation system to locate leaks in drinking water pipes. Pressurized water at the leak location creates a noise which travels out in all directions of the pipe. This noise is recorded, amplified and sent wirelessly to the correlation system by two sensors (piezo microphone, hydrophone) which are attached to the pipe (e.g.

  • Page 11: Features Of The Set

    3 Multi sensors. The case is not only for storage and transportation purposes, but also functions as a charging station for the devices. Power supply The COR C-300-RI is supplied by USB. The Power transmitters and the Multi sensors come with internal rechargeable Li-Ion batteries.
  • Page 12 Technical description NOTE When connected to the electrical system of a car, the transport case is powered by the vehicle's battery, even while the vehicle is not in operation. This could result in the complete discharge of the vehicle battery. When you park the car, disconnect the Correlux transport case from the vehicle power supply.

  • Page 13: Scope Of Delivery

    Technical description Scope of delivery The basic set comprises the following devices and accessories: Standard accessory Accessory Description Art.no. COR C-300-RI USB interface 1008480 COR PT-3A Power transmitter A 1004779 COR PT-3B Power transmitter B 1004780 PAM CORR-2 2 x active universal microphone for PT-3...
  • Page 14 Technical description Parameter Value Operating time min. 12 h Sensor (microphone/hydrophone), Connections Radio antenna Ø 125 x 111 mm Dimensions (without handle) 0.9 kg Weight (without sensor) IP 65 Degree of protection...
  • Page 15 Technical description Sensor Parameter Value PAM CORR-2 Type Piezo sensor with magnetic adaptor (to be connected to Power transmitter or Correlator) Active amplification Dimensions Ø 38 x 78 mm Weight 0.4 kg Degree of protection IP 68 Multi sensor Parameter Value COR MS-3 Sensor...

  • Page 16: Cor C-300-Ri

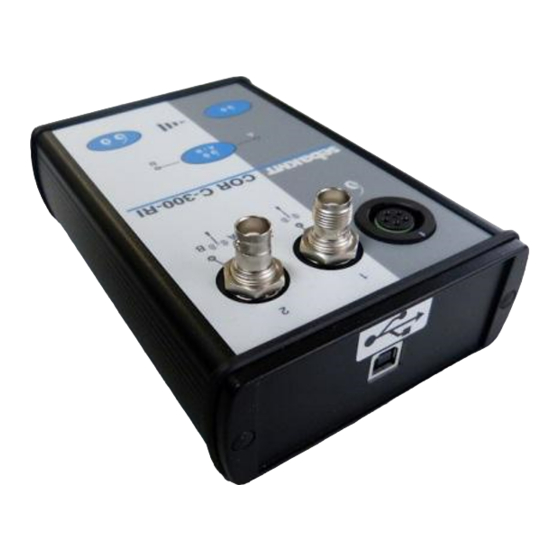

    COR C-300-RI Function and design The COR C-300-RI is a portable device, acting as a radio interface between a PC or laptop and the sensor devices of the COR C-3 system. With the C-300-RI it is possible to program/configure the Multisensors (COR MS-3) and receive the analog signal of the Power-Transmitters (COR PT-3).

  • Page 17: The Power Transmitters

    The Power transmitters The Power transmitters Function and Design Each Power transmitter has an active amplifier for the microphone signal, a data memory, a rechargeable Li-Ion battery, a digital radio module and an analogue radio module with antenna inside. The sensors have the following external characteristics: Element Description Microphone storage place Sensor socket...
  • Page 18 The Power transmitters The Power transmitters have the following lights (LEDs): Indicator lights Element Description LED bar lit green ... represents the current battery level lit red ... represents the noise level I/O LED lit green ... the transmitter is switched on flashing ...

  • Page 19: Identification Number (Id)

    Risk of fire! The charging stations are for transport and charging of the devices only. NOTE Any repairs must be carried out by SebaKMT or an authorized service partner. Otherwise, the devices' resistance against water and dirt cannot be guaranteed.

  • Page 20: Commissioning

    The Power transmitters Commissioning Switching ON/OFF To turn on, briefly press the I/O pushbutton . The I/O LED is lit green when the device is turned on. To turn the device off, press the button until the LED goes out. Stand-by The microphone's storage place is fitted with a magnetic switch.

  • Page 21: The Multi Sensors

    The Multi sensors The Multi sensors Design and function Each Multi sensor has a highly sensitive piezo microphone with active amplifier, a data memory, a rechargeable Li-Ion battery and a radio module with antenna inside. The sensors have the following external characteristics: Element Description Status LED flashes green...

  • Page 22: Power Supply

    Otherwise, the devices' resistance against water and dirt cannot be guaranteed. Do not open the Multi sensors yourself. If you have problems with the battery, please contact your SebaKMT service partner. Switching ON/OFF The Multi sensors have an internal magnetic switch.

  • Page 23: Installation

    Unscrew the magnetic foot from the sensor. Take one of the supplied screws from the COR C-300-RI set to screw the angle adapter on the sensor. Make sure that the sensor's type plate does face away from the...
  • Page 24 The Multi sensors...

  • Page 25: Correluxview Software

    CorreluxView Software CorreluxView Software User interface The CorreluxView screen is divided into three sections - menu bar, directory tree and display area. This screen layout remains unchanged regardless of menu level. Menu bar Directory tree Display area The menu bar (ribbon) allows you to access any command or function. Menu bar Function keys are combined appropriately into different segments.
  • Page 26 CorreluxView Software The display area is divided into the following sections: Display area Measurement information (name of correlation, time of measurement, measurement comments) List of sensors in use (at the very top: function keys for map management) Element Description Button to edit the GPS data for this sensor •...

  • Page 27: Basic Settings

    CorreluxView Software Basic settings You should always check basic CorreluxView software settings and adjust these if necessary before using the application. To open the system settings menu, proceed as follows: Step Description Click on the CorreluxView symbol at the top left of the menu bar. Click on Settings in the context menu.

  • Page 28: Logarithmic Or Linear Coherence Display

    CorreluxView Software 6.2.4 Logarithmic or linear coherence display In the Correlation menu a Coherence curve is shown. You can select whether the frequency axis for the coherence curve should rise linearly or logarithmically. Open the Correlation tab. Use the drop-down menu in the Coherence segment. Explanation: The frequency range of the Correlux C-300 system is from 0 to 3300 Hz.

  • Page 29: Importing Data

    CorreluxView Software To remove a directory from the directory tree, proceed as follows: Deleting a directory Step Description Select the relevant directory in the directory tree. Click on Delete in the Folder segment. Answer Yes to the delete confirmation prompt. Result: The directory as well as all measurements stored under that directory are deleted from the database.
  • Page 30 CorreluxView Software To move and reposition sensor icons in the map section, proceed as follows: Arrange sensor icons Step Description The button must be deactivated. Click once on the sensor symbol you want to move. Result: The symbol is now highlighted and "stuck" to your mouse cursor. Move your mouse cursor to the new position for the symbol, then click your mouse button again.

  • Page 31: Correlation

    CorreluxView Software Correlation 6.6.1 Perform and display a correlation To display the correlation result for a measurement, proceed as follows: Step Description Select the relevant measurement in the directory tree. Click on the Correlation button in the menu bar. Result: In the case of Online measurements, a single window will appear and display the correlation result as a curve (left graphic).

  • Page 32: Display And Select Audio Blocks (Offline Measurements Only)

    CorreluxView Software 6.6.2 Display and select audio blocks (Offline measurements only) Once you click on the thumbnail of a sensor pair, 10 additional thumbnails will open at Show audio blocks the right of the screen, showing the individual correlations of the 10 audio blocks recorded by these two sensors during measurement.

  • Page 33: Call Up The Correlation Analysis Menu

    CorreluxView Software 6.6.3 Call up the correlation analysis menu Once you click twice on a correlation displayed by CorreluxView, the analysis menu Call up analysis menu appears which can be used to more closely examine the correlation. The menu which opens is very similar to the Correlator's Correlation menu. Design Correlation Coherence...

  • Page 34: Select A Correlation Method (Offline Measurements Only)

    CorreluxView Software Automatic search for filter … Provides 10 possible filter settings for selection Click on the button. The application will open a window which suggests 10 possible frequency filter settings, with the most sensible highlighted. Bandpass … To delimit a frequency range The button must first be activated.
  • Page 35 CorreluxView Software Tento symbol indikuje, že výrobek nesoucí takovéto označení nelze likvidovat společně s běžným domovním odpadem. Jelikož se jedná o produkt obchodovaný mezi podnikatelskými subjekty (B2B), nelze jej likvidovat ani ve veřejných sběrných dvorech. Pokud se potřebujete tohoto výrobku zbavit, obraťte se na organizaci specializující se na likvidaci starých elektrických spotřebičů...
