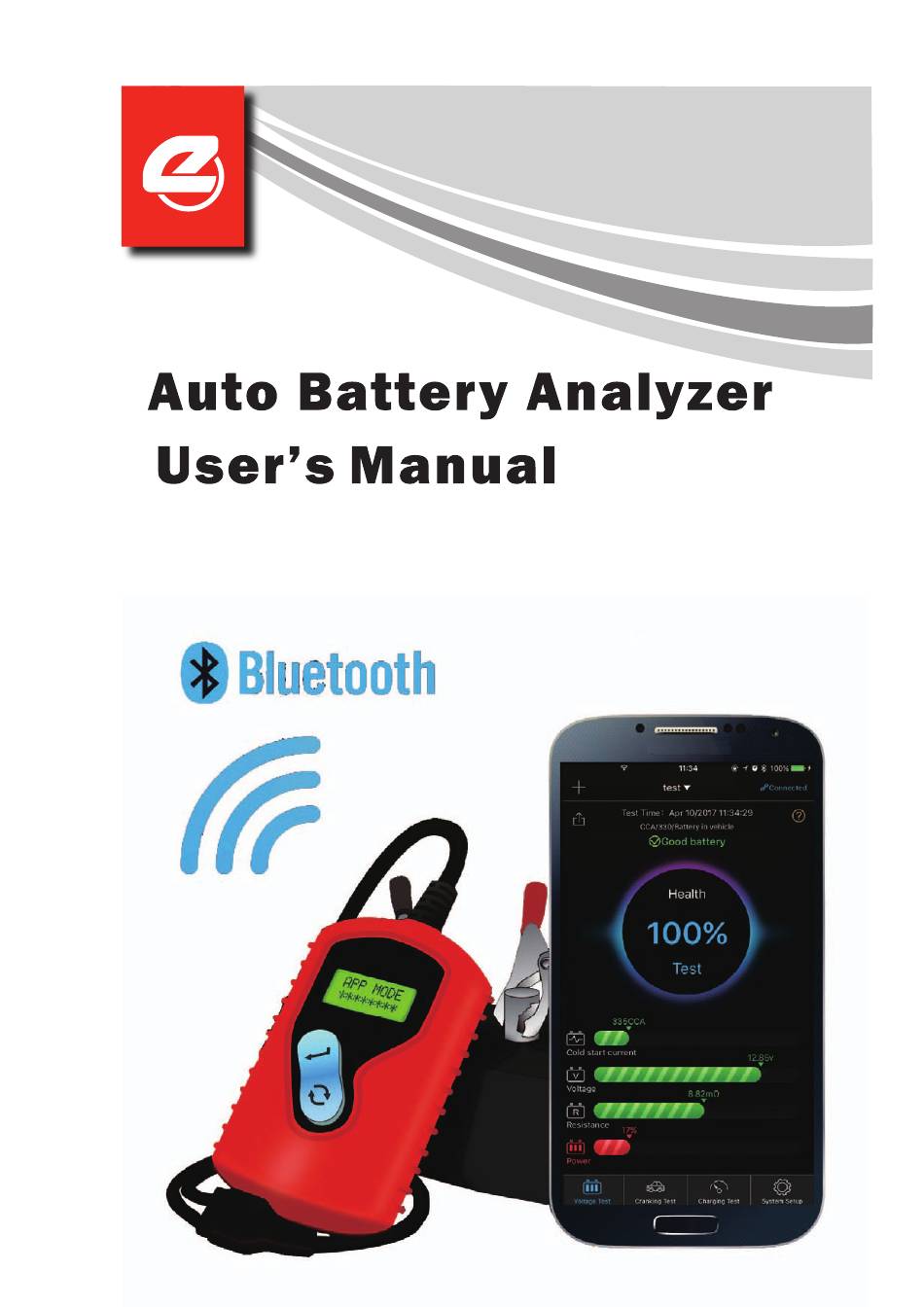

- Page 1 Bluetooth 4.0 ITEM: ET0055A...
- Page 3 1.Introduction 1.1 The Product: This Battery Analyzer is designed to test the condition of the automotive battery using conductance method. Unlike the conventional method of draining the battery by applying resistance load to it and obtain the result from the meter gauge;...
- Page 4 For safety reasons, read this manual thoroughly before operating the Tool. Always refer to and follow the safety instructions and testing procedures provided by the car or equipment manufacturer. The safety messages presented below and throughout this user’s manual are reminders to the operator to exercise extreme care when using this test instrument.
- Page 5 Whenever possible, please follow the manufacturer's instructions for testing, jumping, installing, charging and equalizing batteries. 4. Types of Batteries Basically the major types of batteries are as follows: Starting Battery • Sometimes it is called SLI (Starting, Lighting and Ignition) battery and it is designed to start and run engines.
- Page 6 1.LCD DISPLAY--Indicates test results. It is a backlit 2-line display with 8 characters on each line. 2. ENTER BUTTON--Confirms a selection (or action) from a menu list, or returns to the main menu. 3. SCROLL BUTTON--Scrolls through menu items or cancel an operation 4.Clip--Connects the battery test to the vehicle's battery with + and - point 5.2 Product Specifications 1.
- Page 7 Follow the battery actually marked Rating System standards and select the input rated capacity battery rated by SCROLL button ET0055A battery tester will test each battery according to the selected system and rating. Use SCROLL button to select according to the actual system standard and rating marked on the battery.
- Page 8 CCA: Cold start current value of the most common specifications developed by the SAE & BCI, is the most common starting battery rated O ° F (-18 ° C). BCI: International Battery Standards Committee. CA: Effective starting current rating at O ° C. MCA: Marine Battery Standard, Effective starting current rating at O °...
- Page 9 of electric charge as reference value, such as 12V, 60AH, then input 60 * 7 = 420 CCA; After choose the correct test standard and rated capacity, put "ENTER" button, and the analyzer is testing as below: TESTING 5.4.4 test result For less than 3 seconds, the results of the testing will be displayed on the LCD screen.
- Page 10 GOOD BATTERY The battery is without any problem, please be relaxed to use! (Healthy>60%, Voltage>12.4V) 2) Good, Recharge 12.20 V RATING 440 A 500A 78% OF HEALTHY CHARGE GOOD RECHARGE Good battery but low current, recharge before using. (Healthy>60%, Voltage>12.4V) 3) Replace 12.68 V RATING...
- Page 11 BAD CELL REPLACE Battery interior damaged, broken cell or short circuit, replace battery. (Healthy=0, Voltage<12.4V, Electric Current=0A or 0CCA) 5) Charge, Retest 12.08 V RATING 310 A 500A 39% OF HEALTHY CHARGE CHARGE RETEST Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded as damaged, replace the battery.
- Page 12 6. App mode 1. Search Battery Analyzer 200 from App Store or Google Play, then download and install it to the iPhone after 4S or Android phone after 4.3 version. 2. Open the App: then it will remind to open the Bluetooth device..
- Page 13 3. Connect the Bluetooth and the battery tester will show “APP mode”, then it need set the battery relative information as the battery label. Press “Add”, then it can check the battery status and record it. 4. Battery testing status. It will show the battery status including Battery voltage, battery CCA, battery Resistance, battery charge status.
- Page 14 5. Battery Cranking system test It will show the cranking voltage of the Battery. And the battery voltage graph record. Also show the cranking system testing result. 6. Charging system test It will show the charging voltage in idle Speed, and high RPM. And also show the Charging voltage ripple.
