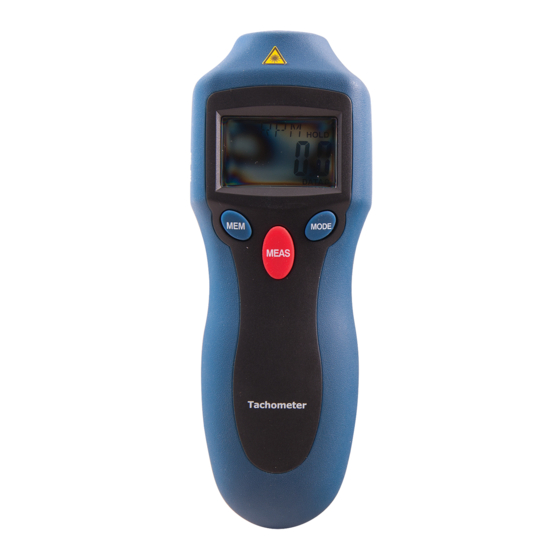

- Page 1 ET2320 Contact / Non-Contact Tachometer Instruction Manual MEAS...
- Page 2 1 FEATURES * The Digital Tachometer provides fast and accurate Contact and Non-Contact RPM and surface speed measurements of rotating objects. * Measurement type: Rotation Speed (RPM,rPm), Total revolutions (REV), Frequency(HZ),Surface Speed(M/M,I/M,F/M,Y/M) and Length(M,In,FT,Yd). * Wide measure range and high resolution. * High visible digital LCD and Backlight display.
- Page 3 3 OPERATION * Flip open the battery compartment cover and install a 9V Battery. * Non-Contact: Stick the self-adhesive reflective tape on the object whose rotational speed is to be measured. The reflective tape should be stuck as close to the outer edge of the object to be measured as possible.
- Page 4 measurements. Press the “MEM” button and don’t to release it to leap to next Data Set. You will view Data0 to Data9 ,10 selectable Data measurements. * Measurement Mode Switch: Release the “MEAS” button and press the “MODE” button before the instrument auto powers off (release the “MEAS”...
- Page 5 sequentially. Press the “MODE” button and hold for approx.3 sec to leap to the next group. Then you can press the “MODE” button once to change from REV,M,In….to the next sequentially. Select the mode required, depress “MEAS” to start measurement.
- Page 6 * RPM: Non-Contact revolutions per minute measurements. * rpm: Contact revolutions per minute measurements. * HZ : Non-Contact /Contact frequency measurements. * M/M: Contact Meter per minute measurements. * I/M: Contact Inch per minute measurements. * F/M : Contact Feet per minute measurements. * Y/M: Contact Yard per minute measurements.
- Page 7 *Very low RPM measurement As it is easy to get high resolution and fast sampling time. If measuring the very low RPM values, we suggest users to attach more “REFLECTIVE MARKS” averagely. Then divide the reading shown by the number of “REFLECTIVE MARKS” averagely. Then divide the reading shown by the number of “REFLECTIVE MARKS”...
