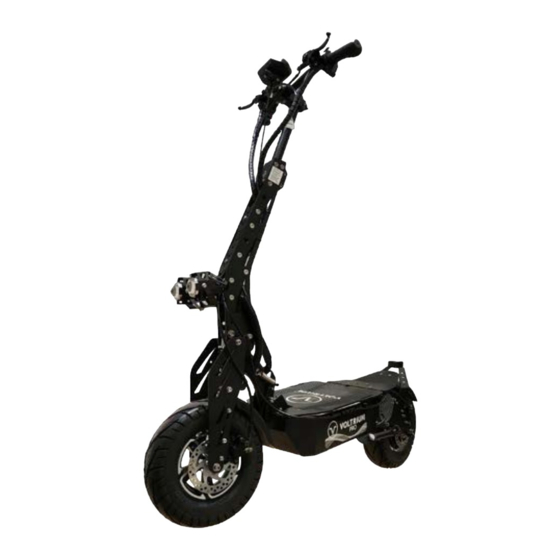

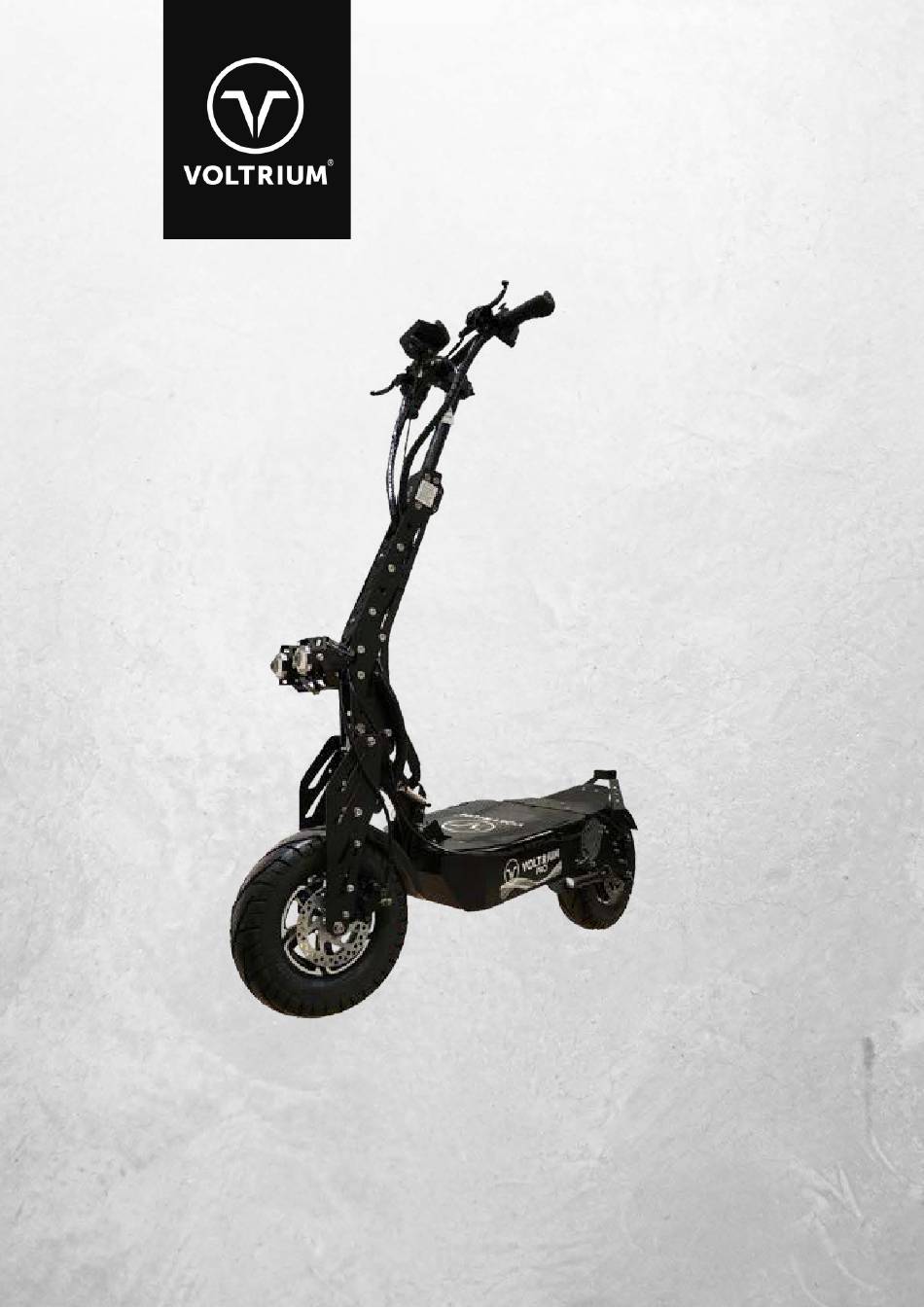

- Page 1 Pro Series Owner's Manual 2022 Edition For: Pro+...
- Page 2 Thanks for Choosing Voltrium We are committed to bring you desirable & environmentally friendly Micro Transport. Developed in Melbourne Australia, each vehicle is designed and tinkered on by a team of talented, passionate engineers and technicians who's mission is to put a smile on your face.
- Page 3 Important! Always wear a helmet & obey all laws! Variants of the Rogue series scooters conform to the Australian Personal Mobility Device (PMD) vehicle category in some states of Australia. Please check with your local state & territory's road rules before riding in public.
- Page 4 Precautions Do Not Hose down or Do not allow the pressure wash. Use a battery to fall into a towel with soapy state of deep water to clean. discharge Do not ride with more Do not jump the than 1 person scooter.
-
Page 5: Package Contents
Package Contents 1x Pro Series Scooter 1 x Charger 1 x Tool Kit 1 x Spare Fuse 1 x Seat 1 x Seatpost & Clamp Accessories (Optional) - Page 6 Assembly Carefully remove the scooter from the Unfold the scooter by pressing down on the Folding lever with one hand while gently pulling up on the steering column with the other. Fully Extend the Steering column to the upright position, until you feel the mechanism lock into place.
- Page 7 Assembly Insert the seat stem by passing the locking feet through the slits of the foot board and then pushing the stem forwards to lock it into the battery box. Secure seat with the knob. Fasten until handtight. Place seat onto the seatpost, adjust the rake and then tighten the two nuts on the underside of the seat evenly.
-
Page 8: Controls Layout
Controls Layout Speedometer Switch Cluster Brake Levers Throttle HIGH /ECO mode switch Ignition Key... - Page 9 Charging 2-4 Hrs The charging process takes When the scooter's battery between 2 - 4 hours. meter is flashing on 0 bars, recharge immediately The charge port is located on the front right hand side of the battery box. Ensure the cap is closed when not charging to prevent water ingress. Insert the Round, three pronged connector into the charge port, then insert the AC plug into a power socket.
-
Page 10: Pre-Ride Checks
Riding Pre - Ride Checks Check Tyre Pressures (50PSI - On Road Tyres, 40PSI - Off Road Tures) Ensure all bolts and screws are tight Ensure Chain drive system is properly lubricated, adjusted and clean. Starting up the scooter Turn the ignition key clockwise by 1 "Click Once the dashboard is switched on, the scooter is ready to go. - Page 11 Trip Meter. During startup, this becomes an Odometer briefly Brake Override with e-ABS The Pro series scooters are equipped with brake override switches that completely disable any throttle inputs when either the front or rear brakes are applied. e-ABS stabilises the scooter under hard braking by utilising regeneration to...
- Page 12 Riding Performance Settings (P-Settings) The rider can adjust the performance characteristics of the scooter via a web based application hosted on the Wechat platform 1. Download Wechat Visit Google Play Store on Android devices and App store in iOS devices and search for an app titled "Wechat".
- Page 13 Riding Performance Settings (P-Settings) 4. Open the QR scanner on the Wechat App On the top right hand corner of the application, tap the plus icon, then tap scan. 5. Scan QR Code and install Web App to Wechat Scan the QR code to the right with the QR Scanner 6.
- Page 14 Riding Performance Settings (P-Settings) 7. Tap on the YuyangKing Drive App It is the application with the blue logo as pictured to the right hand side. 8. Select English for language and Bluetooth for connectivity Tap on your selections 9. Tap on "Start Discovery" The app will begin to search for the Pro+ to pair with.
- Page 15 Riding Performance Settings (P-Settings) 10. Tap on Yuyangking K1A to pair with the controller on the Pro+ Allow briefly for the app to pair with the Pro+'s controller. 11. Tap on "Operation" and then "General Settings: This will give access to the P-settings menu 12.
- Page 16 Riding Adjusting P-Settings on the Companion App Only several programmes should be adjusted. Consult the list below: Fast Start & Soft Start Only enable either one or the other. Soft Start is smoother than Fast Start overall. Fast Start - Adjusts sensitivity of initial takeoff - 1 = Smoothest 10 = Aggressive Soft Start - Adjusts sensitivity of initial takeoff - 1 = Smoothest 10 = Aggressive Cruise Control Auto Cruise control is not recommended unless the rider is experienced with the feature and assumes...
- Page 17 Riding BOOST BOOST - Maintains peak phase current for longer periods of time for improved acceleration. Default Settings Fast Start - OFF Soft Start - ON - Level 3 Manual Cruise - ON Auto Cruise - OFF EBS Brake - ON - Level 10 Battery Current Limit - 90% Phase Current Limit - 90% Adjust Accelerator Curve - ON...
- Page 18 Riding Fault Finding using the Companion App Besides adjusting the P-settings of the Pro+, the companion app can be used to diagnose any issues and assist with troubleshooting should there be any faults.
- Page 19 Riding Towing When towing, adjust P-settings of the scooter as described in the section above. Lower Battery & Phase current to 80% to prevent overheating of Motor. Switching between Sit Down & Stand up Mode The Pro+ is designed to be ridden either seated or standing up without compromise. To switch from seated to standing configuration follow the process below.
- Page 20 Riding Folding The Pro+ folds and the steering column locks into place for ease of carrying. 1. Remove & Stow Seat 2. Remove Safety Pin Unscrew the knob on the rear of the seat Pull the safety pin out of the socket stem on the gooseneck Release the seat from the scooter by...
-
Page 21: Maintenance
(or as required) as necessary. DO NOT hose the scooter down. Do not carry out electronic repairs without guidance from Voltrium. Use genuine parts for repairs and maintenance. It is recommended that repairs and maintenance be carried out by a... -
Page 22: What Is Covered By This Warranty
(e) Damage caused by operating the vehicle outside of specified guidelines. (f) Damage caused by DIY (Do it Yourself) modifications or repairs. (g) To a Voltrium product that has been modified to alter functionality or capability without written permission of Voltrium (h) To defects caused by normal wear &... -
Page 23: Support & Information
Support & Information Contact Information Voltrium Tech Pty Ltd 71B Sarton Rd Clayton, Vic 3168 (03) 9056 9063 Extension 1 for Spare Parts Extension 2 for Technical Support Technical Support email: support@voltrium.com.au Website: www.voltrium.com.au https://www.facebook.com/VoltriumGlobal https://www.instagram.com/voltrium_au/?hl=en https://www.youtube.com/channel/UCZo2SLpjfqEV0plVkubVWYA... - Page 24 Copyright 2022. Voltrium Tech Pty Ltd...
