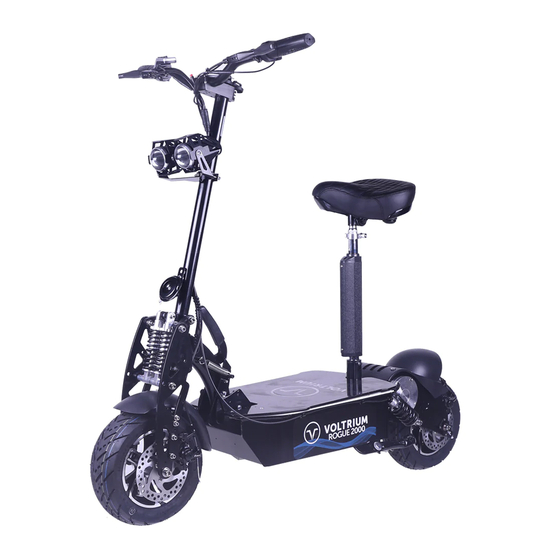

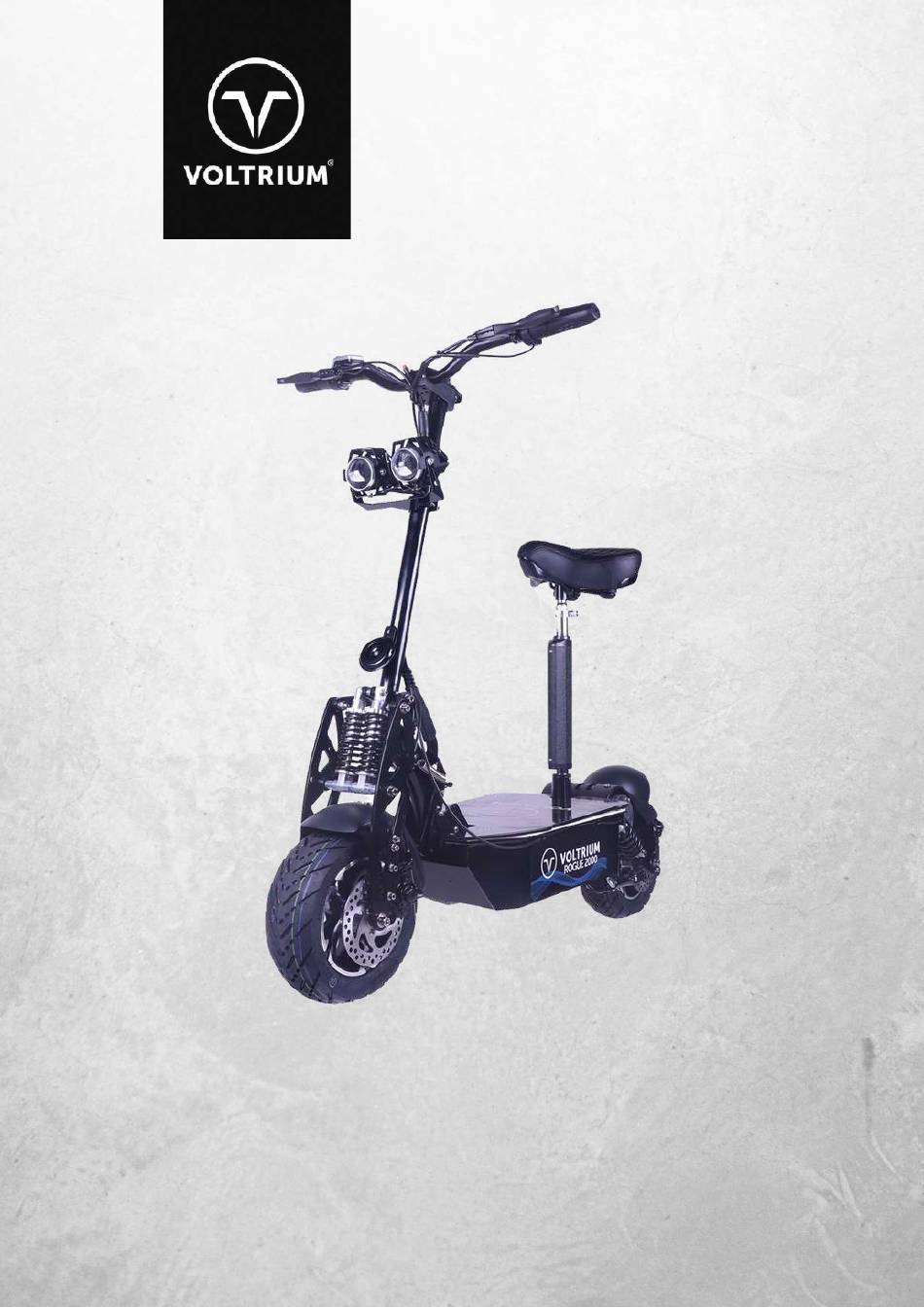

- Page 1 Rogue Series Owner's Manual 2022 Edition For: Rogue 2000 Gen 3.5 Rogue 1600 Gen 3 Rogue 1200 Gen 1...
- Page 2 Thanks for Choosing Voltrium We are committed to bring you desirable & environmentally friendly Micro Transport. Developed in Melbourne Australia, each vehicle is designed and tinkered on by a team of talented, passionate engineers and technicians who's mission is to put a smile on your face.
- Page 3 Important! Always wear a helmet & obey all laws! Variants of the Rogue series scooters conform to the Australian Personal Mobility Device (PMD) vehicle category in some states of Australia. Please check with your local state & territory's road rules before riding in public.
- Page 4 Precautions Do Not Hose down or Do not allow the pressure wash. Use a battery to fall into a towel with soapy state of deep water to clean. discharge Do not ride with more Do not jump the than 1 person scooter.
-
Page 5: Package Contents
Package Contents 1x Rogue Series Scooter 1 x Charger 1 x Tool Kit 1 x Spare Fuse 1 x Seat 1 x Seatpost & Clamp Accessories (Optional) - Page 6 Assembly Carefully remove the scooter from the Unfold the scooter by pressing down on the Folding lever with one hand while gently pulling up on the steering column with the other. Fully Extend the Steering column to the upright position, until you feel the mechanism lock into place.
- Page 7 Assembly Affix Headlight to the steering column at your desired height. Split the circular clamp, position the light assembly, recombine the circular clamp and tighten the two Allen bolts to secure the light. Plug the headlight connector(s) into the wiring harness of the scooter. Place the scooter on charge until the battery is topped up.
-
Page 8: Controls Layout
Controls Layout Multifunction Display (MFD) Headlight & Horn Switch Brake Levers Throttle Ignition Key... - Page 9 Charging 2-4 Hrs The charging process takes When the scooter's battery between 2 - 4 hours. meter is flashing on 0 bars, recharge immediately The charge port is located on the front right hand side of the battery box. Ensure the cap is closed when not charging to prevent water ingress. Insert the Round, three pronged connector into the charge port, then insert the AC plug into a power socket.
-
Page 10: Pre-Ride Checks
Riding Pre - Ride Checks Check Tyre Pressures (50PSI) Ensure all bolts and screws are tight Ensure Chain drive system is properly lubricated, adjusted and clean. Starting up the scooter Turn the ignition key clockwise by 1 "Click" Press and hold on the Multi - Function Display (MFD) Once the MFD is powered on, the scooter is ready to go Do not apply throttle when dismounted. - Page 11 Battery Level Gauge Ride Mode Indicator Brake Override with e-ABS The Rogue series scooters are equipped with brake override switches that completely disable any throttle inputs when either the front or rear brakes are applied. e-ABS stabilises the scooter under hard braking by utilising regeneration to...
- Page 12 Riding Performance Settings (P-Settings) The rider can adjust the performance characteristics of the scooter via the MFD by entering the scooter's P-Settings programming mode. 1. Entering programming mode Simultaneously press and hold"M" & 2. Cycling through the programmes Press to cycle through the programmes, one at a time. 3.
- Page 13 Riding Folding The Rogue Series folds and the steering column locks into place for ease of carrying. 1. Remove & Stow Seat 2. Remove Safety Pin Remove the seat locking pin from the Pull the safety pin out of the socket socket in the seat stem.
-
Page 14: Maintenance
(or as required) as necessary. DO NOT hose the scooter down. Do not carry out electronic repairs without guidance from Voltrium. Use genuine parts for repairs and maintenance. It is recommended that repairs and maintenance be carried out by a... -
Page 15: What Is Covered By This Warranty
(e) Damage caused by operating the vehicle outside of specified guidelines. (f) Damage caused by DIY (Do it Yourself) modifications or repairs. (g) To a Voltrium product that has been modified to alter functionality or capability without written permission of Voltrium (h) To defects caused by normal wear &... -
Page 16: Support & Information
Support & Information Contact Information Voltrium Tech Pty Ltd 71B Sarton Rd Clayton, Vic 3168 (03) 9056 9063 Extension 1 for Spare Parts Extension 2 for Technical Support Technical Support email: support@voltrium.com.au Website: www.voltrium.com.au https://www.facebook.com/VoltriumGlobal https://www.instagram.com/voltrium_au/?hl=en https://www.youtube.com/channel/UCZo2SLpjfqEV0plVkubVWYA... - Page 17 Copyright 2022. Voltrium Tech Pty Ltd...
