SÖFWAL INSTALLATION
BLOK, T-BLOCK & BLOK EXTENDER
SOFWAL provides privacy and separation in shared spaces and open floorplans. It features a hollow design for optimal sound
absorption and our patent pending Conecta proprietary hardware technology for easy assembly. Its invisible frame and sturdy
base are substantial enough to center this in a space as a permanent divider, yet lightweight enough to make this a modular
solution, if preferred. What's more—it ships knock-down and flat, requiring minimal assembly. Sofwal modular compatibility

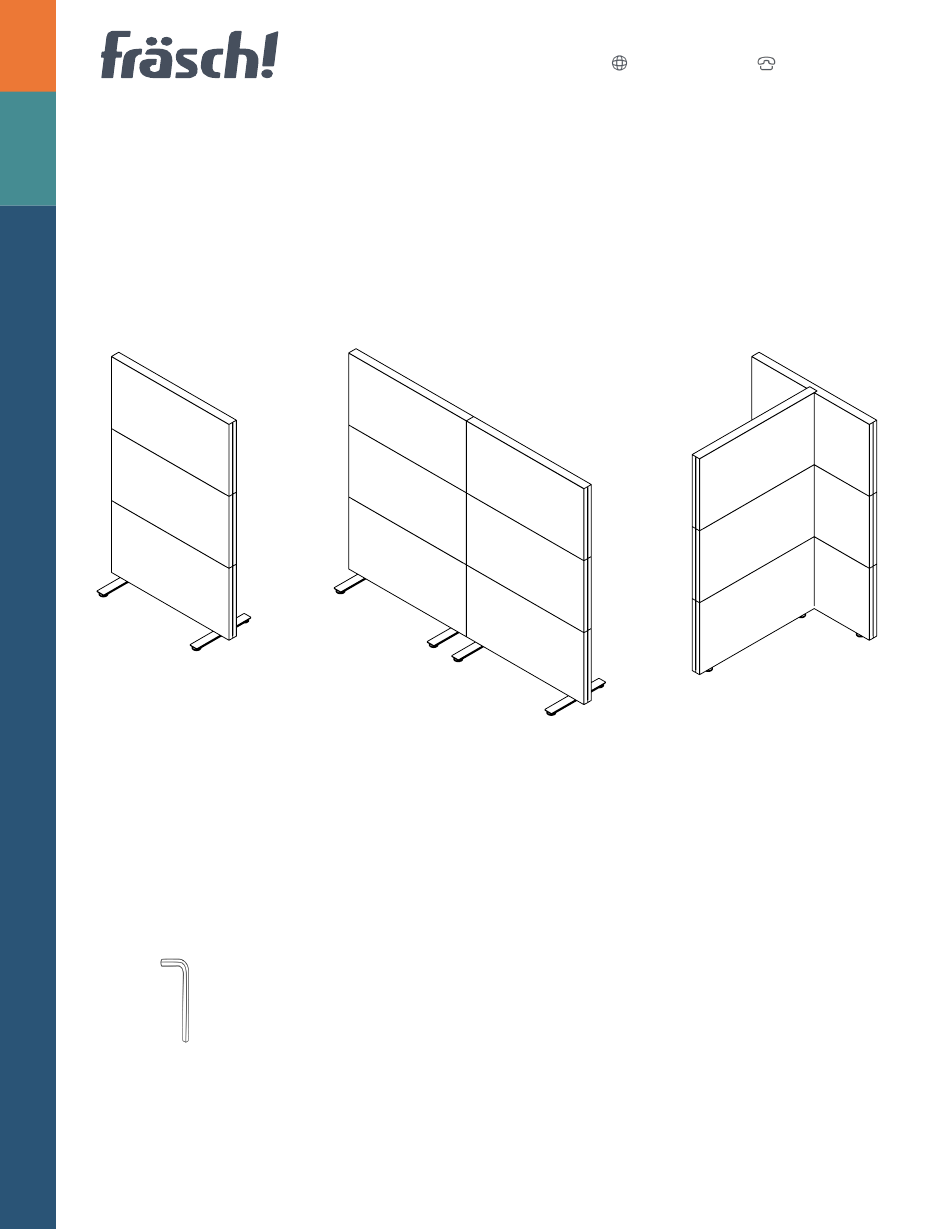

allows for 3 different design configurations:
Sofwal Blok
Tools You Will Need
5/32" Hex Key
Sofwal Blok Extension
frasch.com |
682.200.3005
Sofwal T-Blok
01 of 12
rev. date 6.2022
Advertisement
Related Manuals for frasch Sofwal Blok
Summary of Contents for frasch Sofwal Blok
- Page 1 What’s more—it ships knock-down and flat, requiring minimal assembly. Sofwal modular compatibility allows for 3 different design configurations: Sofwal Blok Sofwal Blok Extension Sofwal T-Blok Tools You Will Need 5/32” Hex Key 01 of 12 rev.
- Page 2 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER SÖFWAL Blok & SÖFWAL Extension Included Components NOTE: Included hardware types and quantities will differ depending on model variant and design configuration [x1] Sofwal Bottom Panel [x1] Sofwal Middle Panel...
- Page 3 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER SÖFWAL T-Blok Included Components and Hardware Note: Included hardware types and quantities will differ depending on model variant and design configuration [x1] T-Blok Top Panel [x1] T-Blok Middle Panel [x1] T-Blok Bottom Panel...
- Page 4 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER 609 112th Street, SU SÖFWAL Blok & Sofwal Extended Hardware Configuration Arlington, TX 76 682.200.3005 www.frasch.com CUSTOMER NAME ORDER CONFIRMATI 50mm Caster w/ H-Foot Glider w/ H-foot T-Block Hardware Configuration...
- Page 5 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Step 1a: Install the foot hardware on the bottom panel according to your preferred configuration or model variant. See page 04 for compatible foot hardware based on your model. 05 of 12...
- Page 6 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Step 2a: Slide the poplar spine into the center slot of the bottom panel. Step 3a: Slide (x2) 1-way connectors into the slots of the panel. Note: This step only applies to Sofwal Block as a single unit. If you are assembling for extended units or T-Blok, replace one of the 1-way connectors with a 2-way (see step 3b).
- Page 7 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Step 4a: Slide the middle panel over the connectors and spine. Step 5a: Slide (x2) 1-way connectors into the middle panel. 07 of 12 rev. date 6.2022...
- Page 8 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Step 6a: Slide the top panel over the spine and connector. Installation complete. 08 of 12 rev. date 6.2022...
- Page 9 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Sofwal T-block is a variant of Sofwal Block. Each panel features a middle channel to fit a 2-way connector, as shown below. Please follow steps 1a - 5a, and then return to this page to complete the steps unique to T-Block.
- Page 10 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Step 2b: Follow steps 1a to 5a to assemble the Sofwal Blok to the T-Blok panel. Refer to page 04 for the proper foot hardware configuration. Installation complete. 10 of 13...
- Page 11 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Sofwal Bloks can be extended in a modular fashion using a 2-way connector in place of the standard 1-way on the joining edge of the unit. Step 3b: Complete steps 1a & 2a, then insert the 2-way connector as shown above.
- Page 12 | 682.200.3005 SÖFWAL INSTALLATION BLOK, T-BLOCK & BLOK EXTENDER Step 1c. Follow steps 2a to 5a using 2-way connectors on the joining edge to complete the extension installation. Installation complete. 12 of 12 rev. date 6.2022...
