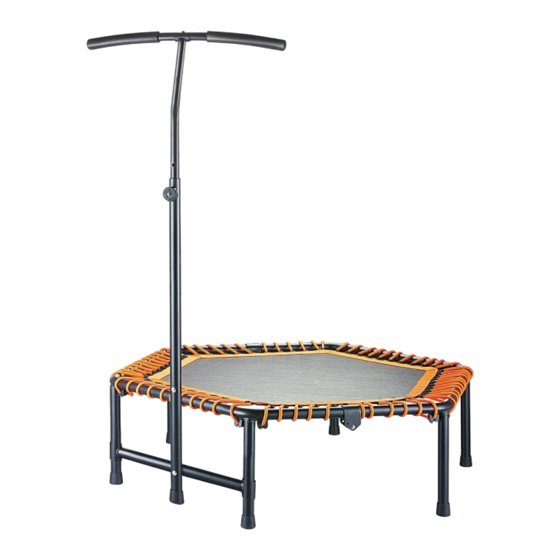

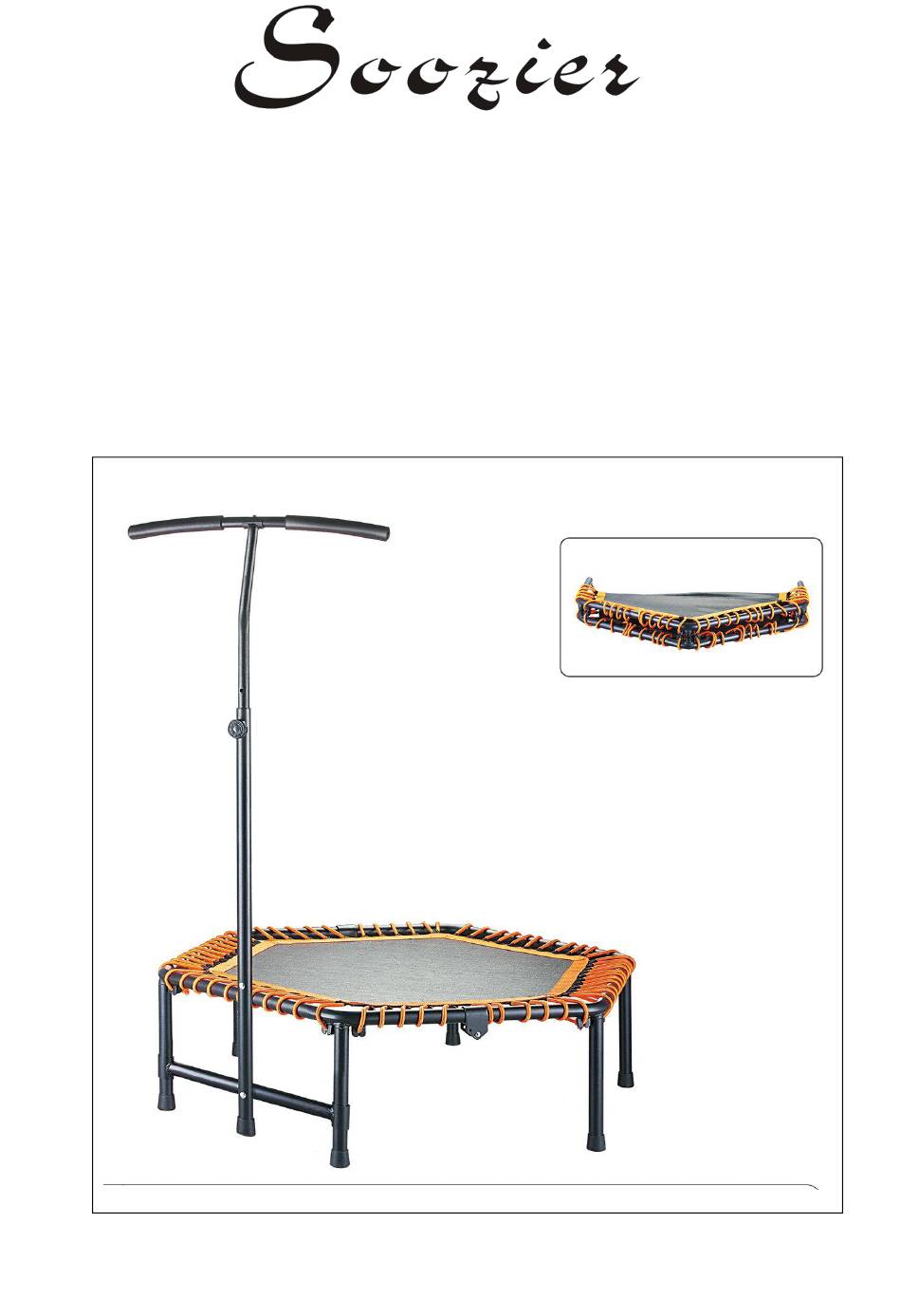

- Page 1 INSTRUCTION MANUAL Hexagonal Foldable Trampoline A71-008 C000000 1 / 9...
- Page 2 WARNING Always install the trampoline with at least two people. keep head and face away from frame of trampoline. Failure to do so can cause serious injury to head or face,or lead to other serious injures. We are not liable for any injuries that may occur when using the trampoline.
- Page 3 TR03 TR04 Inner TR10 TR01 TR05 TR02 TR06 TR01 x 1pc TR02 x 8pcs TR03 x 1pc TR04 x 1pc TR05 x 1pc TR06 x 1pc 3 / 9...
-
Page 4: Notes And Warnings
TR07 x 1pc TR08 x 1pc TR09 x 2pcs TR10 x 1pc TR11 x 1pc TR12 x 2pcs TR13 x 2pcs Notes & Warnings The trampoline should be installed on a stable base and properly leveled. The legs of the trampoline are installed tightly, please make sure not to ... - Page 5 Do not use trampoline if you have consumed alcohol or narcotic substances Must use the trampoline on wall to wall, carpet or a floor than is not slippery so unit does not slide when used. It’s important to keep unsupervised children away from the trampoline when ...
- Page 6 -Assembly Instructions 1.Lay the trampoline on the floor,in its still folded position(image 1). Push out the ends according to the arrows on the picture, then the trampoline is opened (image2). Image 1 Image2 WARNING: Frame will snap close, FIX the Trampoline with Safety Screws thus it will not snap close!!!!! The Snap Back will be Dangerous!!! Please keep all fingers away from hinge are when opening and closing!!!!
- Page 7 Now the trampoline is opened and still upside down, install all 8 pcs of legs. T bar Assembly: Attention: There is a hole at the center of the frame tube, before install the bottom connect bar, please find the hole first (as shown A). 1.Please find out bottom bar (TR06), then install it on the two legs, firstly removing the rubber cap from these two legs, as shown B and C, Fix the bottom Bar TR06 with Two TR12 screws with help of Allen Key TR08, then...
- Page 8 3.Insert TR04 into TR05, fix with TR10 Screw, 3 positions for your choice TR07 X 1 4.Then install the Top bar(TR03) and innerbar(TR04) by screws, connect all parts as picture show TR03 TR04 TR08 TR11 CLOSING UPINSTRUCTIONS IMPORTANT SAFETY NOTE: Always close your trampoline with 2 people. Turn the unit upside down and lay it flat.
- Page 9 Both persons kneel facing the “top half” of the trampoline and place their knee closest to the trampoline on the “bottom half” of the frame approximately 2 inches below (not on) the hinge (Image B). Both persons lean forward placing their outside hand on the ground and use their inside hand to grasp one of the spring ropes near the top of the trampoline (image C) Together pull gently on the spring ropes and the top half of the frame will...
