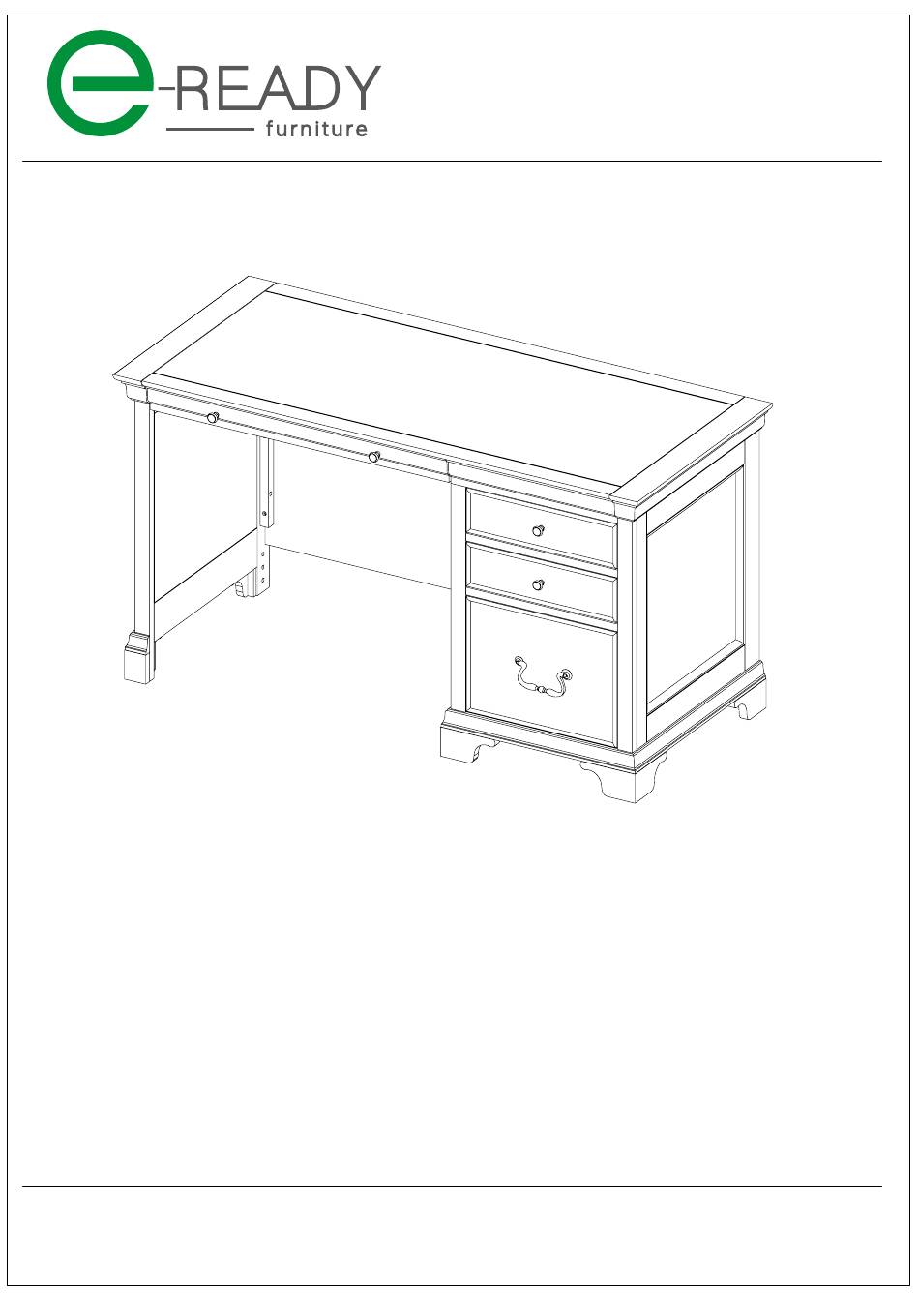

ESCRITORIO DE PEDESTAL ÚNICO DE 54" (ODK54-D)
Questions, problems, missing parts? Before returning to the store call
¿Tiene alguna pregunta, problema o le faltan piezas? Antes de regresar a la tienda, llame
Questions, problèmes, parties manquantes? Avant de retourner au magasin appelez
54" SINGLE PEDESTAL DESK (ODK54-D)
BUREAU A TIROIRS SIMPLES 54
Customer Service
Time available: 8:00 am - 5:00 pm PST
Hotline:
al Servicio al Cliente.
Horario: 8:00 am a 5:00 pm PST
Número gratuito:
Service à la clientèle
Heures de disponibilité : 8am à 5pm PST
Ligne sans frais:
Thank you for choosing E-Ready Furniture.
Gracias por preferir E-Ready Furniture.
Merci d'avoir choisi E-Ready Furniture.
Assembly Instructions
Instrucciones de Armado
Instructions d'ssemblage
1-888-552-0592
1-888-552-0592
1-888-552-0592
1 of 16
" (ODK54-D)
Advertisement
Related Manuals for E-Ready Furniture ODK54-D
Summary of Contents for E-Ready Furniture ODK54-D
- Page 1 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage 54" SINGLE PEDESTAL DESK (ODK54-D) ESCRITORIO DE PEDESTAL ÚNICO DE 54" (ODK54-D) BUREAU A TIROIRS SIMPLES 54 " (ODK54-D) Questions, problems, missing parts? Before returning to the store call Customer Service Time available: 8:00 am - 5:00 pm PST...
-
Page 2: Part List
Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Getting to know your product Conociendo su producto Apprendre à connaître votre produit Part List: Description Quantity Part Description Quantity Part Left Drawer Side (Upper Drawer) Center Panel Right Drawer Side (Upper Drawer) Right Side Panel Drawer Back (Upper Drawer) Pedestal Base... -
Page 3: Lista De Partes
Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Lista de partes: Liste des pièces: Cantidad Quantité Pieza Pièce Descripción Description Assemblage supérieur Parte superior Panneau du centre Panel central Panneau du côté droit Panel del lado derecho Base du piédestal Base del pedestal Barras (superior/inferior) Barres transversale (supérieure/inférieure) Panneau du côté... - Page 4 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Two persons are recommended for assembly. Unpack the inventory parts on a soft and smooth surface. Do not use power tools. Do not overtighten any connectors. A Philips head screwdriver is required (no t included) for the assembly.
- Page 5 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 1 Connect Center Panel (2) to Top (1) with Allen Head Bolts (H1), Lock Washers (H2) and Flat Washers (H3) by turning Allen Wrench (H4) clockwise until tight. Paso 1 Conecte el Panel central (2) a la Parte superior (1) usando Pernos Allen (H1), Arandelas de presión (H2) y Arandelas planas (H3) al girar la Llave Allen (H4) en el sentido de las agujas del reloj hasta que estén bien ajustados.
- Page 6 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage H1 H2 Step 3 Attach Crossbars (Upper / lower) (5) and Right Side Panel (3) to Top (1). Attach Right Side Panel (3) to the Top (1) with Allen Head Bolts (H1), Lock Washers (H2) and Flat Washers (H3) by turning Allen Wrench (H4) clockwise until tight.
- Page 7 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 4 Insert Right Back Panel (7) into the grooves on Center Panel ( 2) and Right Side Panel (3) as shown. Make sure Right Back Panel (7) is seated into groove on Top (1). Paso 4 Inserte el Panel posterior derecho (7) en las ranuras del Panel central (2) y el Panel del lado derecho (3) como se muestra en la ilustración.
- Page 8 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage The edge without molding El borde sin moldura Bout sans moulure Step 5 Connect Pedestal Base (4) to the current assembly with Allen H ead Bolts (H1), Lock Washers (H2) and Flat Washers (H3) by turning Allen Wrench (H4) clockwise until tight. Paso 5 Conecte la Base del pedestal (4) al montaje actual usando Pernos Allen (H1), Arandelas de presión (H2) y Arandelas planas (H3) al girar la Llave Allen (H4) en el sentido de las agujas del reloj hasta que estén bien ajustados.
- Page 9 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 6 Connect Left Back Panel (8) to the Center Panel (2) with Allen Head Bolts (H1), Lock Washers (H2) and Flat Washers (H3) by turning Allen Wrench (H4) clockwise untl tight. Paso 6 Conecte el Panel posterior izquierdo (8) al Panel central (2) usando Pernos Allen (H1), Arandelas de presión (H2) y Arandelas planas (H3) al girar la Llave Allen (H4) en el sentido de las agujas del reloj hasta que estén bien ajustados.
- Page 10 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 7 Connect Left Side Panel (6) to the current assembly with Allen Head Bolts (H1), Lock Washers (H2) and Flat Washers (H3) by turning Allen Wrench (H4) clockwise until tight. Paso 7 Conecte el Panel del lado izquierdo (6) al montaje actual usando Pernos Allen (H1), Arandelas de presión (H2) y Arandelas planas (H3) al girar la Llave Allen (H4) en el sentido de las agujas del reloj hasta que estén bien ajustados.
- Page 11 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage grooves ranuras rainures front favant rente Step 8 Please do the assembly as the arrows show: 1) Attach Left Drawer Side (10) to Drawer Front (Upper Drawer) (9). Please note the mark and arrow on (10) when assembling. 2) Insert a Screw (H7) into the pre drilled hole on Left Drawer Side (Upper Drawer) (10) and turn with a Philips Screwdriver until it is close to tight.
- Page 12 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 9 Please do the assembly as the arrows show: 1) Insert Drawer Bottom (13) into the grooves on Left Drawer Side (Upper Drawer) (10) and Right Drawer Side (Upper Drawer) (11). 2) Insert Drawer Back (Upper Drawer) (12) into the current assembly. 3) Insert two Screws (H7) into the intended holes on Left Drawer Side (Upper Drawer) (10) and Right Drawer Side (Upper Drawer) (11), then turn with a Philips screwdriver until tight.
- Page 13 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage front favant rente grooves ranuras rainures front favant rente Step 10 Please do the assembly as the arrows show: 1) Attach the Right Drawer Side (Lower Drawer) (16) to Drawer Front (Lower Drawer) (14). Please note the mark and arrow on (16) when doing assembling.
- Page 14 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 11 1) Attach Drawer Back (Lower Drawer) (17) to the current assembly. 2) Insert Screws (H7) into the pre drilled holes and turn with a Philips screwdriver until tight. 3) Connect the 3 parts of Door Pull (H5) as a whole and insert it into the intended holes.
- Page 15 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Step 12 Install the two upper drawers into the desk. Refer to Page 4 for the instructions on how to align and install the drawers. Paso 12 Instale los dos Cajones superiores en el escritorio. Consulte la página 4 donde aparecen las instrucciones de alineamiento e instalación Étape 12...
- Page 16 Assembly Instructions Instrucciones de Armado Instructions d'ssemblage Strips of adhesive tape. Bandelettes de ruban adhésif. Tiras de cinta adhesiva. Step 14 1) Remove the backing on three strips of adhesive tape on the back of the Pencil Tray (18). 2) Pull out the drawer and place Pencil Tray (18) where desired. This step can be omitted if you do not want to use the Pencil Tray (18).
