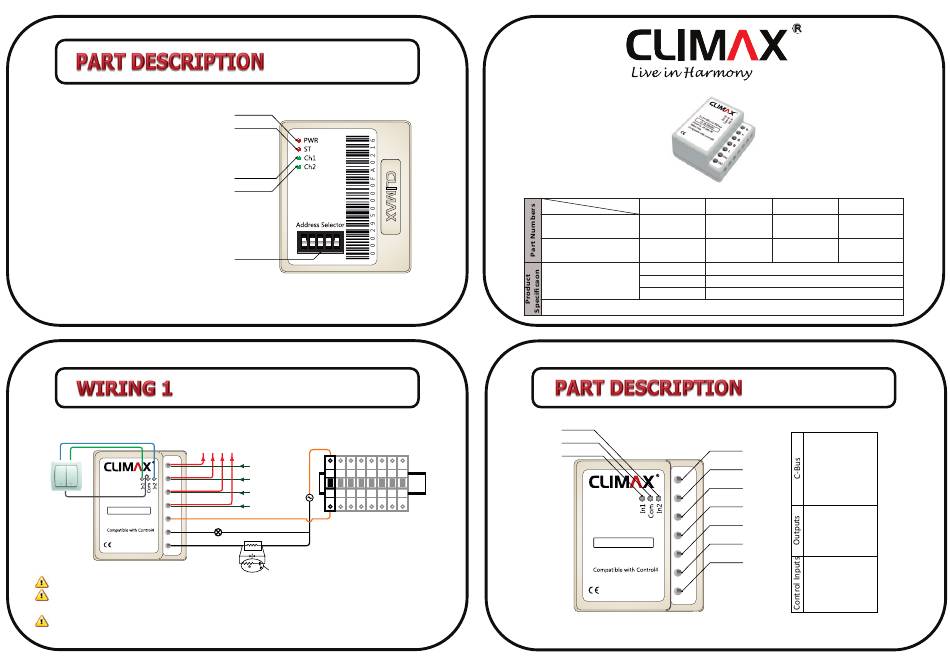

Climax CL-AB-5AMR2 Installation Manual

1. Power LED
2. Status LED
3. Channel 1 LED
4. Channel 2 LED
5. Address selector switch
Follow the diagram below in order to apply appropriate input/output and connect module _with
"CL-AB-5AMR2" & "CL-AB-5AMR2-LC" part numbers_ to C-Bus network.
To Next Module
+
-
A
2X5A Micro Relay
B
CL-AB-5AMR2
L
Power In: 18-24V DC
50mA max
Ch1
Ch2
Before wiring the device, always unplug the main power.
Before adding a new module to C-Bus network, ensure the previous module has a valid
address and is working properly.
In case of using capaciv e or inducv e loads, permissible current is less than normal mode
(resisv e load) depending on load condion.
1
2
3
4
ON
1 2 4 3 5
5
3
MODE MODE MODE MODE MODE MODE MODE MODE
Circut Circut Circut Circut Circut Circut Circut Circut
Breaker Breaker Breaker Breaker Breaker Breaker Breaker Breaker
From Previous
L
Module
N
Inducv e Load
MOV
47 0.1 F Snubber
1/2 W
4
INSTALLATION GUIDE
2X5A Micro Relay
Control voltage
Free voltage Low (5V-24V)
Input current
Normal* CL-AB-5AMR2-
CL-AB-5AMR2
(50mA for 24V DC)
Low** CL-AB-5AMR2- CL-AB-5AMR2-
(10mA for 24V DC) LC
C-Bus 4 X screw terminals (M3 socket set screw***)
I/O Connecons
Control Input
Output 2 X relay channel-5A per channel (screw terminal)
*Input voltage: 18-24V DC **Input Voltage: 8-24V DC
1
8
9
10
+
-
A
2X5A Micro Relay
B
CL-AB-5AMR2
L
Power In: 18-24V DC
50mA max
Ch1
Ch2
2
version 1.0.5
Medium (110V) High (240V)
CL-AB-5AMR2- CL-AB-5AMR2-
LV MV HV
CL-AB-5AMR2- CL-AB-5AMR2-
LVLC MVLC HVLC
2 X digital contact input
***Hex key size: 1.5 mm
1. VCC
1
2. GND
2
3. A (Data+)
3
4. B (Data-)
4
5. Line
5
6. Channel 1
6
7. Channel 2
7
8. Input 2
9. COM
10. Input 1
