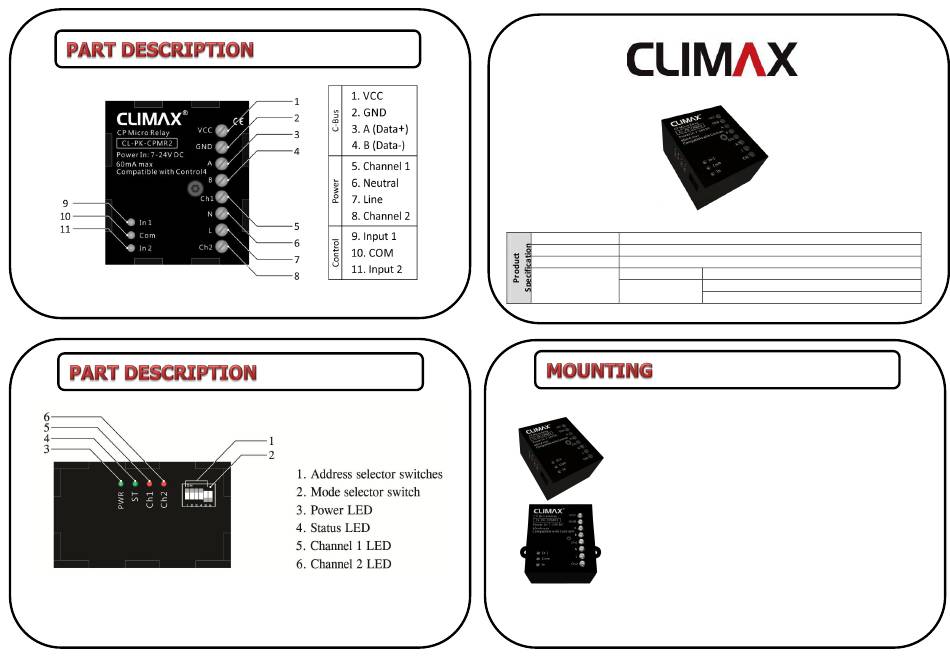

INSTALLATION GUIDE
CP Micro Relay (
Input Voltage
7V-24V DC (24V DC is recommended)
Input Current
Load Type
2 x3A Relay (Approx. 700 watt per channel–for resistive or capacitive load)
C-BUS
I/O Connections
Power Control
Junction Box
Climax CP Micro Relay is designed basically to be installed in a
junction box behind a two channel contact Keypad.
The product size must be considered when applying it in
junction boxes.
Product Size: 50.0L X 44.0W X 29.5H (mm)
Screw Mounting
Screw the CP Micro Relay to any surface through 2 side screw
holes.
For screw mounting following part number must be used:
CL-PK-CPMR2-S
version 1.0.4
)
CL-PK-CPMR2
50 mA -120 mA
4 x Rising-cage 5mm screw terminals
220V-240V AC-50Hz (in Capacitive mode)
2 channel control input
Advertisement
Related Manuals for Climax CL-PK-CPMR2)
Summary of Contents for Climax CL-PK-CPMR2)
- Page 1 Power Control 2 channel control input Junction Box Climax CP Micro Relay is designed basically to be installed in a junction box behind a two channel contact Keypad. The product size must be considered when applying it in junction boxes.
- Page 2 For instance to set the address to “21” the address selector switches must be as bellow: Never set the address to 0 or 1 (1 is reserved for Climax RS-232 GatewayPro). Before adding a new module on the C-Bus, ensure the previous module has a valid address and is working properly.
