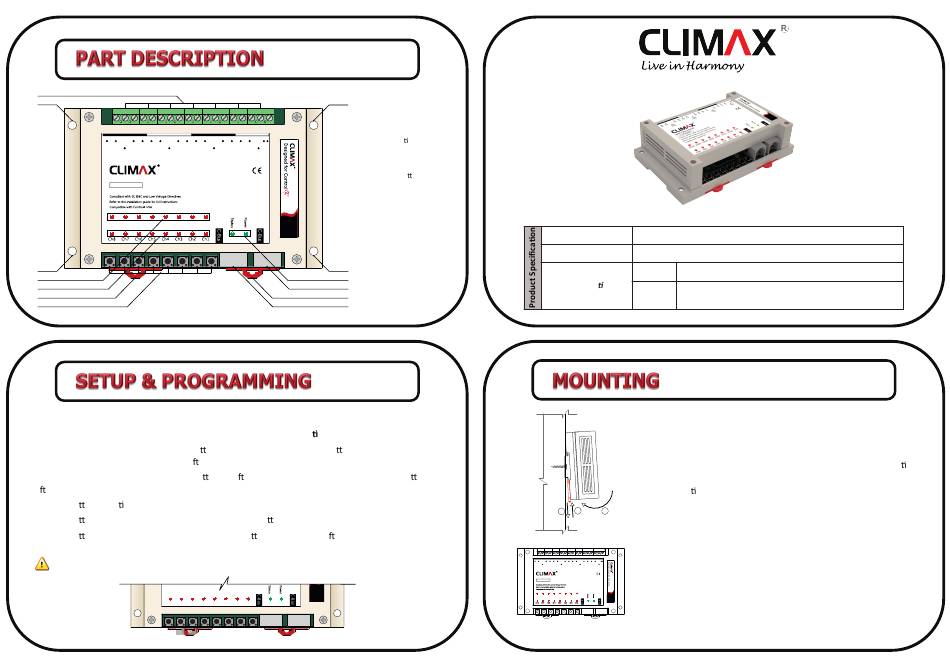

Climax CL-DR-RL16X8A Installation Manual

2
1
16 15 14 13 12 11 10 9 8 7
Com Com
13-16 9-12
16x8A Relay Module
CL-DR-RL16X8A
Power In: 24V DC, 320mA max, from data bus
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9
1
4
4
3
6

Change Module Address

In order to change the module address follow steps below consecu vely and uninterruptedly:
1. Disconnect the main power. Hold bu on #1 & #2 simultaneously (bu on's and LED's number
sequence is considered from right to le as shown in following picture) .
2. Reconnect the main power. Release bu on #2 a er LEDs #1 to #4 flashed. Then release bu on #1
a er LEDs #1 and #2 flashed. Power LED will start flashing quickly.
3. Press bu on #1, 4 mes. Then the module address will be displayed by LEDs in binary.
4. Press bu on #1 to increase the module address and bu on #2 to decrease it.
5. Press bu on #3 to save the module address and bu on #4 to cancel. A er saving the new module
address or canceling the process, the module will reset.
The devices which are connected from a common interface cannot have same module
address.
#8 #7 #6 #5
#8 #7 #6 #5
1
1. Screw holes
2. Output connectors
3.Rail moun ng clips
6 5 4 3 2 1
4. Channel LEDs
Com Com
5-8 1-4
5. Status LEDs
6. Control bu ons (1-16)
7. RS-485 jack
1
5
7
3
7
3
#4 #3 #2 #1
#4 #3 #2 #1
4
INSTALLATION GUIDE
16X8A Relay Module
Input Voltage 18V-24V DC (24V DC is recommended)
Input Current
C-Bus
I/O Connec ons
Output
1

Rail Mounting

16X8A Relay Module is designed to be installed on a standard
35 mm wide DIN rail (EN 50022, BS 5584).
Hook the module from the top, pull down the rail moun ng
clips, push the module to the rail and release the rail
moun ng clips.
3
1 2

Screw Mounting

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Com Com Com Com
13-16 9-12 5-8 1-4
16x8A Relay Module
Screw the module to any surface through 4 corner screw
CL-DR-RL16X8A
Power In: 24V DC, 320mA max, from data bus
holes.
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9
2
version 1.0.1
(CL-DR-RL16X8A)
320mA (for 24V DC)
2 X RJ45
16 X relay channel -8A per Channel
(rising-cage 5mm screw terminals)
