CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum. Spills should be taken
care of immediately before they harden or stain with a slightly
dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you
begin assembly of this item.
Part List and Hardware List
PIECE
DESCRIPTION
A
Back
B
Support
Long bar
C
D
Left Side
Right Side
E
Front part
F
Seat Part
G
Bolt L
H1
Bolt S
H2
H3
Allen Screw L
Allen Screw S
H4
Screw L
H5
Screw S
H6
Bolt extra
H7
Allenkey
H8
QUANTITY
1 x
2 x
2 x
1 x
1 x
1 x
1 x
8 x
M6x100
2 x
M6x70
2 x
M6x65
4 x
M6x45
2 x
M4x35
4 x
M4x15
1 x
M6x50
1 x

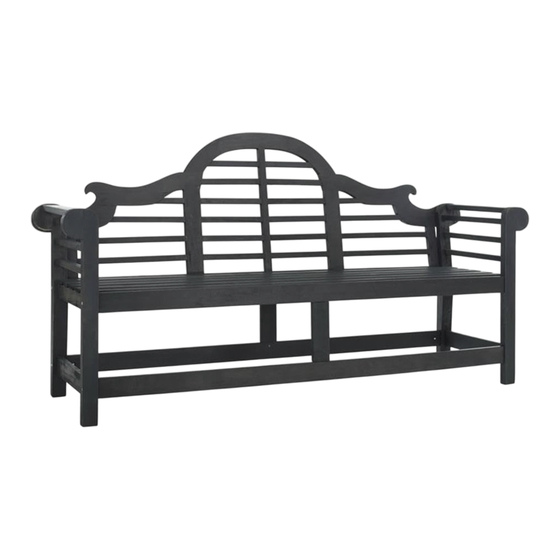

MODEL# PAT 6705
Product Dimension: 76.77"W x 23.23"D x 40.55"H
Weight capacity : 600 lbs.
Warning : Do not stand on the bench
Warning : Do not torque bolts / screws
