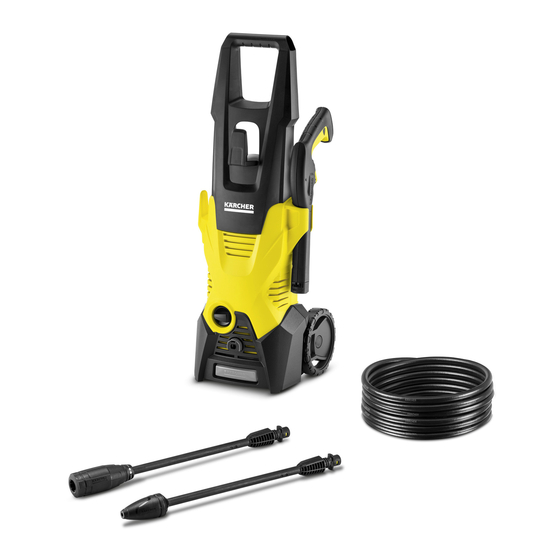

HOW TO CONNECT THE K 3 POWER CONTROL
HIGH PRESSURE HOSE
Tips to help you get up and running with the K 3 Power Control electric pressure washer.
Connecting the High Pressure Hose
The connections on the high pressure hose are not perfectly round – if you look carefully you'll see two flat areas on each
connection. Correctly aligning those flat areas to the corresponding flat areas on the spray gun and pressure washer ensures
proper assembly and maximum performance from your K 3 Power Control pressure washer.
1. Locate the flat areas on the high pressure
hose connectors
(indicated here with red arrows)
2. Locate the flat areas on spray gun connection
(indicated again with red arrows)
Advertisement
Table of Contents
Related Manuals for Kärcher K 3
Summary of Contents for Kärcher K 3
- Page 1 HOW TO CONNECT THE K 3 POWER CONTROL HIGH PRESSURE HOSE Tips to help you get up and running with the K 3 Power Control electric pressure washer. Connecting the High Pressure Hose The connections on the high pressure hose are not perfectly round – if you look carefully you'll see two flat areas on each connection.
- Page 2 3. Begin to insert the hose into the spray gun With the flat edges on the hose and spray gun aligned, begin to push the hose into the spray gun connector. Pause when you encounter resistance – the hose should be inserted as far as shown in this image. If it is, proceed to step 4. >...
- Page 3 Tip: If the hose connection is still visible, the hose is not completely inserted The entire hose connection should be seated inside the spray gun. If you can still see the hose connector, the hose is not properly attached and will result in leaking, as well as weak pressure when using the power washer.
