- Page 1 AT8801 Breath Alcohol Tester Operation Manual Read Carefully Before Use Version: HW190118188...
- Page 3 Notification To ensure the real test result of alcohol concentration of human blood and avoid sensor damaging, please wait 15 minutes to take test after drinking. Recommend to calibrate the sensor once the tester indicates CAL "0 Days Left". ...
- Page 4 Terms and Definitions 1、 Breath alcohol analyzers Under specified temperature, humidity and pressure, instrument which to analyze and measure the ethanol concentration in exhaled deep lung gases. 2、 Breath alcohol concentration The ethanol content in the breath of each liter, for short, BrAC. The measuring unit is: mg/L.
- Page 5 QUICK GUIDE Switch on/off: long press [ Steps of testing alcohol content: Install the mouthpiece (see picture). Long press [ ] for power on. Click the <test> icon in the touch screen. Preparing of testing, take a deep breath now. When screen and voice indicate “Please blow”, then please blow into mouthpiece regularly and consecutively.
- Page 6 10. Input the Driver license No. input it by virtual keyboard and click <Enter>for confirmation. 11. Screen display print interface, which show all testing information. Click <Print>, Indicates print or not, if connect with printer, then click <Enter> to print the testing results. Please read the manual carefully for functions and operation information.
-
Page 7: Table Of Contents
Table of Contents 1 Summary ................1 2 Accessories .................3 3 Structures ................4 4 Power On/Off ...............4 5 Touch Screen Usage ............5 6 Precaution Before Usage ...........5 7 Alcohol Content Testing ............8 8 Menu Operation ..............11 Delete of Records ..............12 Measuring Unit Setup ............12 Password Changing ............13 Police No ................13 Alarming Setup ..............14... -
Page 8: Summary

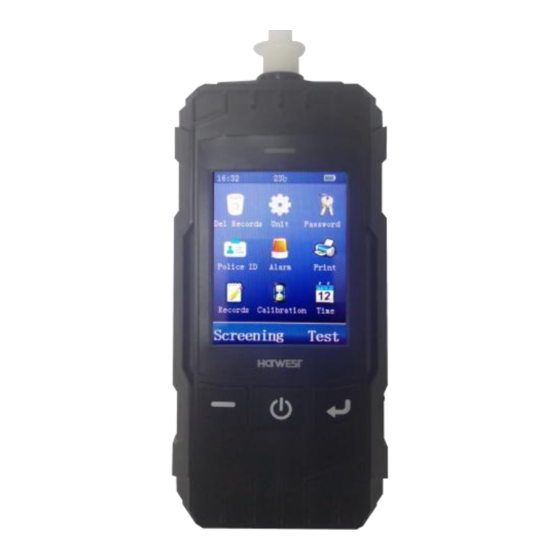

1. Summary AT8801 is an advanced portable Breath Alcohol Tester with up-to-date design in the international field at present. The core component adopts Changeable Electrochemical Sensor module and the tester is in more accuracy, high sensitivity, strong anti-jamming ability and easy calibration. Adopting advanced technology, AT8801 could do self-regulation of signal gain, ensure the successful calibration. - Page 9 Adopting advanced technology, AT8801 could do self-regulation of signal gain, ensure the successful calibration. Simplified the calibration process. 2.8 Inch Touch color display, beautiful and clear. Multi modes of testing: active testing, passive testing and rapid screen.
-
Page 10: Accessories
Mouthpiece User manual Please use accessories and software under Hanwei approved, otherwise the instrument may be damaged or malfunction, the manufacturer will not guarantee it. Could buy accessories from local distributor or manufacturer. The accessories should provide good support to the alcohol tester. -
Page 11: Structures
3. Structures Air inlet Light Charge lamp Display/touch screen ① Function key On/off /light key ① Function key Charging/communication jack cover Note: Function key will carry the functions which indicated in left/right down side of screen. 4. Power on/off 1. Long press [ ] to power on or off the tester 2. -
Page 12: Touch Screen Usage
5. Touch screen usage Using finger or other tools to dot the screen to choose the item or use its functions. Don’t use sharp tools to avoid scratching the touch screen No other electronics devices contact with the touch screen, Electrostatic discharge can cause malfunction of touch screen No water, it will cause malfunction of touch screen in humidity environment or in contact with water. - Page 13 Send out alarming; Show short of battery; Empty battery icon twinkle. battery was too low, the tester will turn off automatically, please If the recharge it in time. Recharge the tester by adaptor Use DC 5.5V adaptor and date line to recharge alcohol tester. Open the charging/communication jack cover at the side.
- Page 14 screening and passive test, funnel type mouthpiece is available. Printer Connecting Modular thermal printers or independent Bluetooth dot-matrix printers optional. Technical data of Bluetooth Thermal Printer: Paper type: thermal printing paper; Paper width: 57mm; Paper roll diameter: ≤25mm.
-
Page 15: Alcohol Content Testing
Technical data of Bluetooth Pin Printer: Paper type: Pin type printing paper; Paper width: 57mm; Paper roll diameter: ≤40mm. The effective communication distance between tester and Bluetooth printer is less than 5 m. Please ensure the usage within the effective distance. - Page 16 the same time. If tested persons are unable to blow, click <Cancel> to active print interface with result saved; Click <Enter> to active driver name input interface with result saved. Active Testing Steps Insert disposable anti-return mouthpiece. Press [ ] to power on. Click [Test].
- Page 17 Passive Testing When the tested person can't take the initiative to detect the normal breath alcohol content, the alcohol detector can collect the breath of the tested person through passive test to complete the test, and give the qualitative judgment results. Install funnel mouthpiece. When the screen prompts "Please blow", point the mouthpiece at the mouth or nostril of the subject.
-
Page 18: Menu Operation
Rapid screening In the standby interface, click <Screening> at the left of the screen to enter the Quick Check Test Interface. Install funnel mouthpiece or without mouthpiece, when the screen prompts < Please blow >, aim the nozzle or air inlet hole at the tested person, start blowing within 3 cm of the distance between the nozzle and the tested person. -
Page 19: Delete Of Records
Delete Records This operation will clear all test records. The tester could save up to 20000 records and upload records to Computer for Back-up management. Make sure you want to clear all test records before executing this operation. Empty records Click under standby interface. -
Page 20: Password Changing
b、(BAC)mg/100mL c、g/L d、‰BAC e、％BAC After the unit is changed, the critical value in the alarm setting is automatically updated according to the conversion relationship between the old and the new units mg/L and mg/100mL are Chinese standard “GB/T 21254-2017” requested measurement results, Conversion relation: BAC=BrAC×2200. -
Page 21: Police No
Police No. Setup Input of Police No. . Method： Click under standby interface. From virtual keyboard to input the police No., Click icon to delete characters. Click <Enter> to store the setup, click <Cancel> to drop this operation. Alarming Point Setup This operation sets the alarm threshold value, when the test results are less than the set alarm threshold value, only the value of the test results is displayed;... -
Page 22: Record
Set up print copies for testing result or records. Method： Click under standby interface. Input the print copies though the virtual Keyboard, from 1 to 3 copies. The default number of printed copies of the instrument is 2 copies. Click <Store> to store the setup, click <Cancel> to drop this operation. -
Page 23: Data Uploading
Time and Date Setup Setup the time included “year, month, day, hour and minute”. Method： Click under standby interface. Input the time through the virtual keyboard. Set in sequence "year, month, day, hour and minutes, the current revision bits with blue color. If wrong input, please click to delete then input again. -
Page 24: Main Technique Parameter
If the failure still was unsuccessful exists, contact the distributor or manufacturer for maintenance 11. Main Technique Parameter Model AT8801 Sensor Type Fuel-Cell (Electrochemical) Sensor Detecting Scope 0～2.000mg/L Warm-up Time ＜20s Alarming Point Value 0.250 mg/L Accuracy ±0.02mg/l (0-0.400mg/l) - Page 25 Professional Police Breathalyzer Manufacturer High-tech enterprise with R&D, production, sales capacities and own national brand. Import and Export rights, passed ISO9001:2000 quality management system certification. Our products cover Professional police application, commercial application and gift application.
