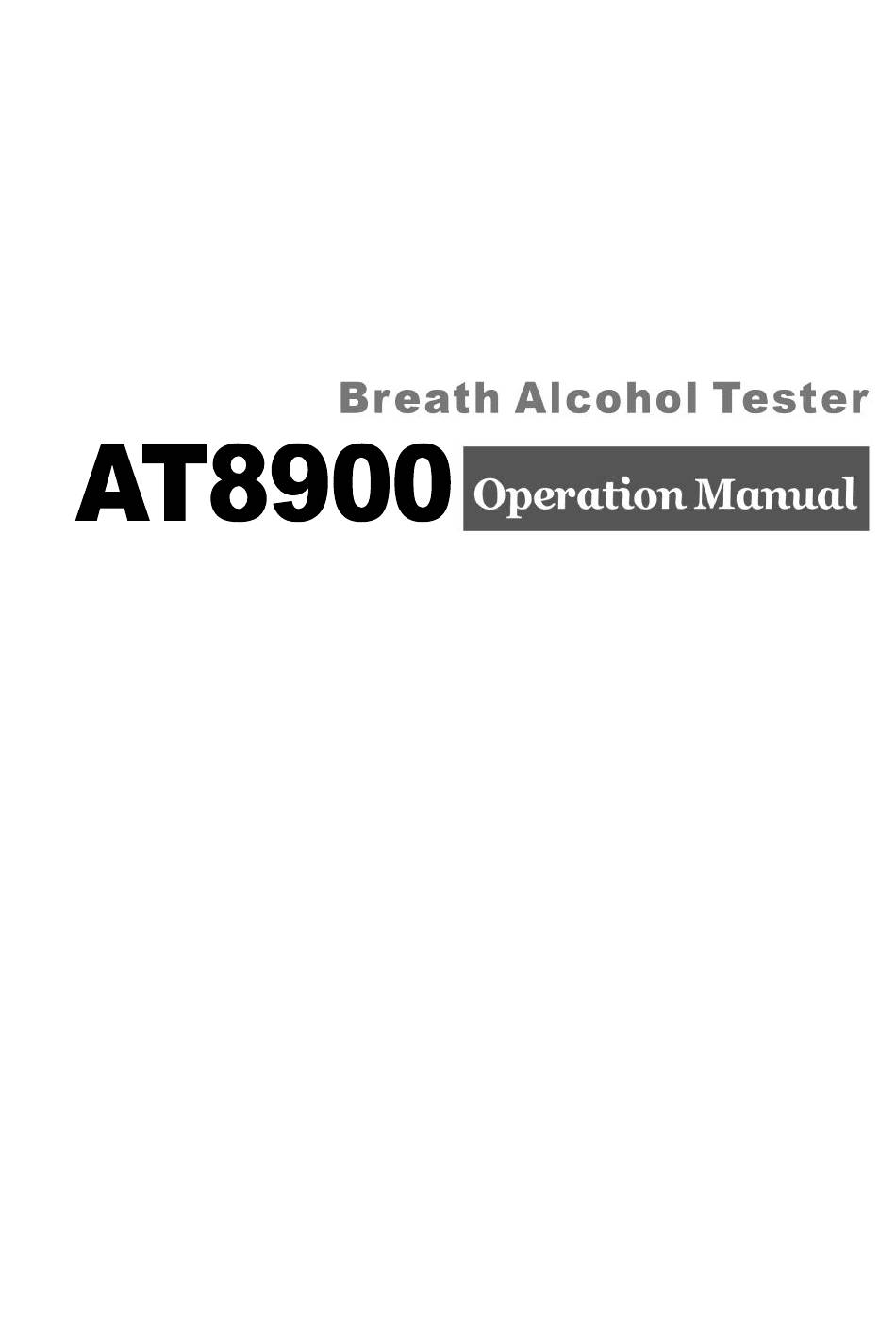

- Page 1 Alcohol HW160509001...
- Page 2 Notification To ensure the real test result of alcohol concentration and avoid sensor damage, please wait 15 minutes to take test after drinking. Recommend to calibrate the sensor once the tester indicates "0 Days Left" Avoid to use the tester when environment temperature exceed its specified range;...
- Page 3 Q u i c k G u i d e Switch on/off: Long press [ Steps of testing alcohol Install the mouthpiece, then Long press [ ] for power on. Click <Test>. Preparing of testing, take a deep breath now. When indicate “Pls blow”, then please blow into mouthpiece regularly and consecutively until the progress bar is full.
-
Page 4: Table Of Contents
Table of Contents SUMMARY ..................1 ACCESSORIES ................2 STRUCTURE ................3 POWER ON/OFF ................3 TOUCH SCREEN USAGE ............3 PREPARATION BEFORE USAGE ..........4 TESTING ..................6 MENU OPERATION ..............9 RECORDS ................... 13 RECORD UPLOAD ..............14 MAIN TECHNIQUE PARAMETER ........ -
Page 5: Summary
1. Summary AT8900 is an advanced portable Breath Alcohol Tester with up-to-date design in the international field at present. The core component adopts Changeable Electrochemical Sensor module and the tester is in more accuracy, high sensitivity, strong anti-jamming ability and easy calibration. The design of multicolor OLED, simply keyboard, and touch screen make the tester more concise and suitable for outside use. -
Page 6: Accessories
Real time, Temperature indication Password management Disposable anti-return, anti-jam mouthpiece design, 360° rolling. Low battery reminder and Battery saved automatically off function Big capacity rechargeable Li battery Wide working temperature range, to meet different demand ... -
Page 7: Structure
3. Structure ring mouthpiece Gas entrance Indication LED Touch pen Touch Screen ① Function key On/off key ① Function key Charging/communication jack cover Remarks: Function key will carry the functions which indicated in left/right down side of screen. 4. Power on/off 4.1, Press [ ] to turn on or off the tester. -
Page 8: Preparation Before Usage
In order to avoid scrape the screen, do not use the speculate tools. Avoid screen to contact other electronic equipment. Static discharge will result the screen fault. Avoid screen meet water. The screen may fault when meet water or in humidity environment. - Page 9 2, Insert the small terminal of adaptor into recharging jack; 3, Insert the big terminal pin of adaptor into power socket (If car adaptor then insert in car DC12V socket), the indication LED in Adaptor and [ ] on tester will be on. 4, Pull out the adaptor when Recharging finish (the indication LED in Adaptor and [ ] on tester will be off).
-
Page 10: Testing
Technical data of Printer: Paper type: thermal printing paper; Paper width: 57mm; Paper roll diameter: ≤25mm. Using the bluetooth dot-matrix printers built-in blue-tooth printing module enables automatic connection with blue-tooth printer when printing. Make sure effective connection distance between tester and printer: ≤10m Bluetooth Printer... - Page 11 Alcohol tester starts to collect a breath sample when the breath sample greater than 1L. The sample collection will last for more than 3s. The "blowing interrupt" will be displayed when blowing is interrupted. Waiting time for blowing When the screen displays "please blow", please use the mouthpiece to blow continuously &...
- Page 12 page, click “” to cancel the wrong characters. When the input is completed please click the <ENTER> to next step, click <CANCEL> to next step directly. 9. Input Driver License No. Please input the Driver License No. from the virtual keyboard, then click <ENTER>...
-
Page 13: Menu Operation
8. Menu Operation Time Battery Power Menu Icons Function keys instructions area Show the current function assigned to left/right function keys In the standby interface shown on the left, click the menu icon on the screen to enter the corresponding menu item. Partial menu operation requires password authentication. - Page 14 Print Copies Set up print copies for test results or records. Setup method: Standby interface click icon. Input the print copies though the virtual Keyboard, from 1 to 3 copies. Click <STORE> to save setup, the test result or test record can be printed according to preset copies;...
- Page 15 Click<STORE> save setup Click<CANCEL> give up this operation. There are five Units for customers to choose： a、 （BrAC）mg/L; b、 （BAC）mg/100mL; c、g/L; d、‰BAC; e、％BAC. After the Unit changed, the pass and Fail critical value according to the new and old unit conversion relation update automatically “GB/T mg/L mg/100mL...
- Page 16 manufacturer or distributor. Set new password: Click under standby interface. Input password, click <Confirm>. Input new password through keyboard on screen. Click to erase front No. of cursor. Click <Save> to active the new password; click <Cancel> to give up operation. Delete Records This operation will clear all test records.
-
Page 17: Records
Input password, and click<Confirm>. Click Pass/Fail value edit box. The selected item shows in Blue. Input value of Pass/Fail through keyboard on the screen. The editing item is displayed in Blue. Click <Save> to confirm new setting; Click <Cancel> to give up operation. -
Page 18: Record Upload
10. Record upload The back-up management on computer requires cooperation of software. Uploading steps: Open the cover of Charging or communication socket right-side, then, connect computer apparatus data communication line. Run software. Turn on breathalyzer and Operate software under standby interface. -
Page 19: Main Technique Parameter
11. Main technique parameter Model AT8900 Sensor type Fuel-Cell (Electrochemical) Sensor Detecting Scope 0～2.000mg/L（0～440mg/100ml） ＜20s Warm-up time Pass Alert Value 0.090 mg/L Working Temperature Range -20℃-50℃ Fail Alert Value 0.250 mg/L ±0.02mg/l (0-0.400mg/l) Accuracy ±5% (0.400-1.000mg/l) ±20% (1.000-2.000mg/l) Battery 7.4V Lithium Battery Rated capacity... - Page 20 Import and Export rights, passed ISO9001:2000 quality management system certification. Our products cover Professional police application, commercial application and gift application. HENAN HANWEI ELECTRONICS CO.,LTD Address: NO.169, Xuesong Road, National High-tech Zone, Zhengzhou, 450001, China Service Tel：(86)0371-67169070/80 Fax: (86)0371-67169090 Service E-mail: sales@hwsensor.com...
