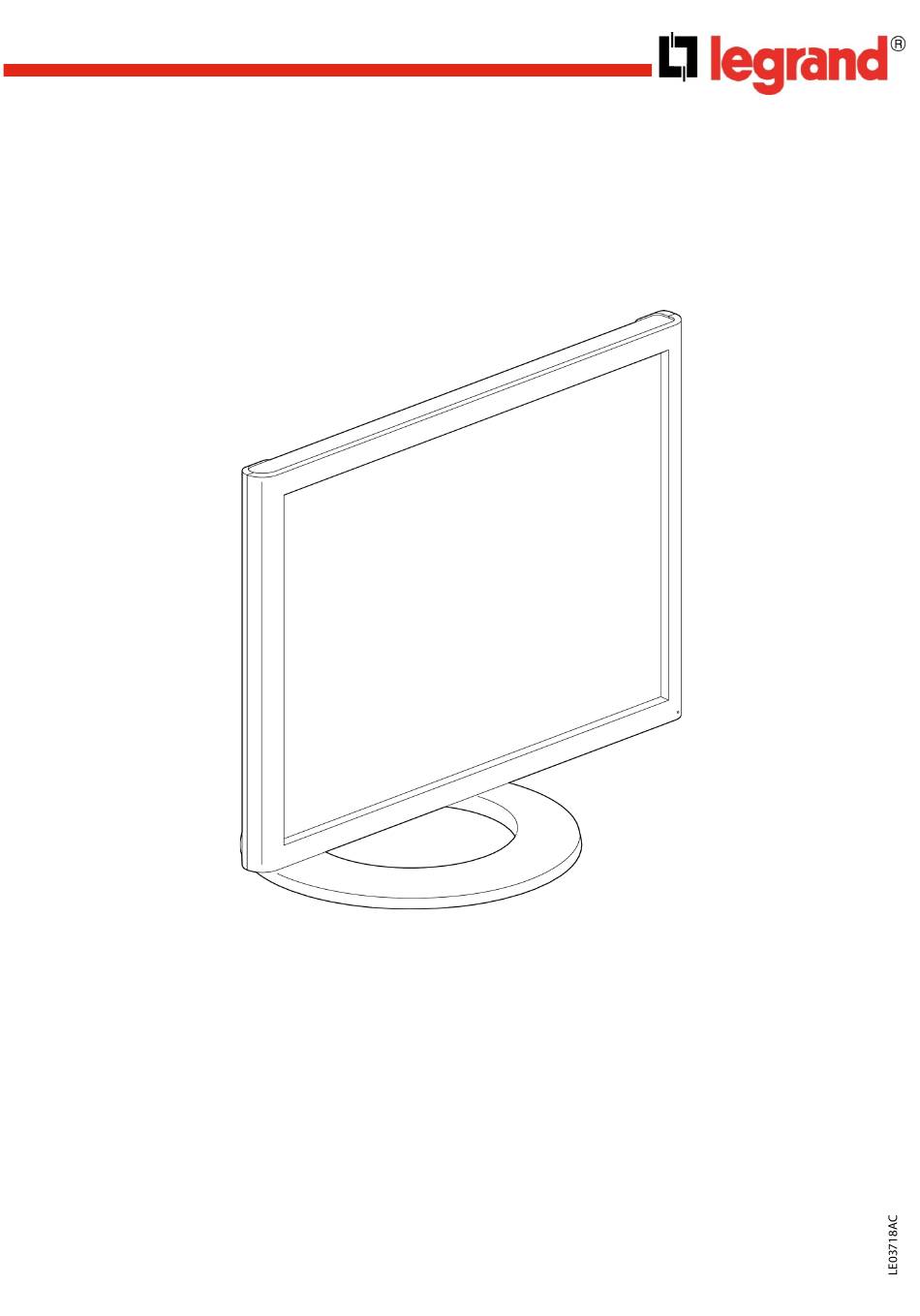

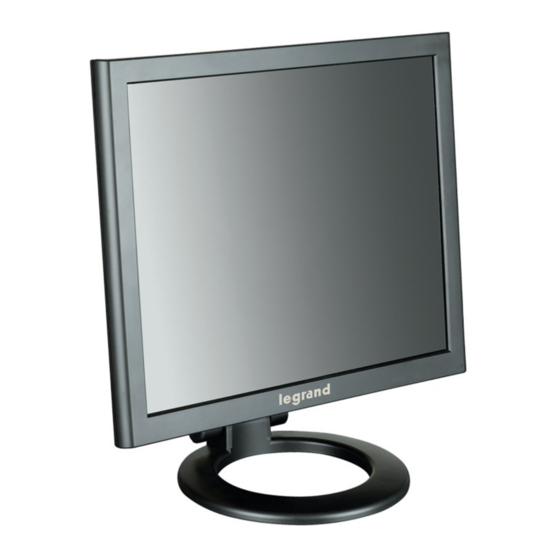

- Page 1 17" HD LCD colour monitor 4 305 70/71 USER MANUAL...
- Page 2 Contents Accessories ............................3 Characteristics ............................3 Installation ............................... 4 Connection .............................. 4 Configuration: ............................4 Troubleshooting ............................. 5 Caution - Installation and adjustment must be carried out by qualified personnel. - Do not open: risk of electric shock. Use only at a temperature between 0 °C and 55 °C. Do not use at a voltage other than that indicated.
- Page 3 1 Accessories Mains adaptor Audio Jack cable VGA cable Power supply cord 2 Characteristics Model no. 4,305 70 4,305 71 17" active-matrix TFT screen 19" active-matrix TFT screen Type of screen Display zone (H × V) 337.920 × 270.336 376.320 × 301.056...
- Page 4 3 Installation Power supply 12V DC DVI port VGA port Audio jack input Right audio output Left audio output Video input Video output 4 Connection 5 Configuration: The "Select" button positioned on the right side of the monitor allows the source to be selected. (VGA, DVI, AV) To enter the OSD menu, press the "Menu"...
- Page 5 6 Troubleshooting Problem Solution • No image, no sound • Poor quality sound, normal image • • • Poor quality image, normal sound • Line appear on the screen • Image is distorted • • A diagonal line appears on the screen •...
