Denver Electronics SEL-65115 Original Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

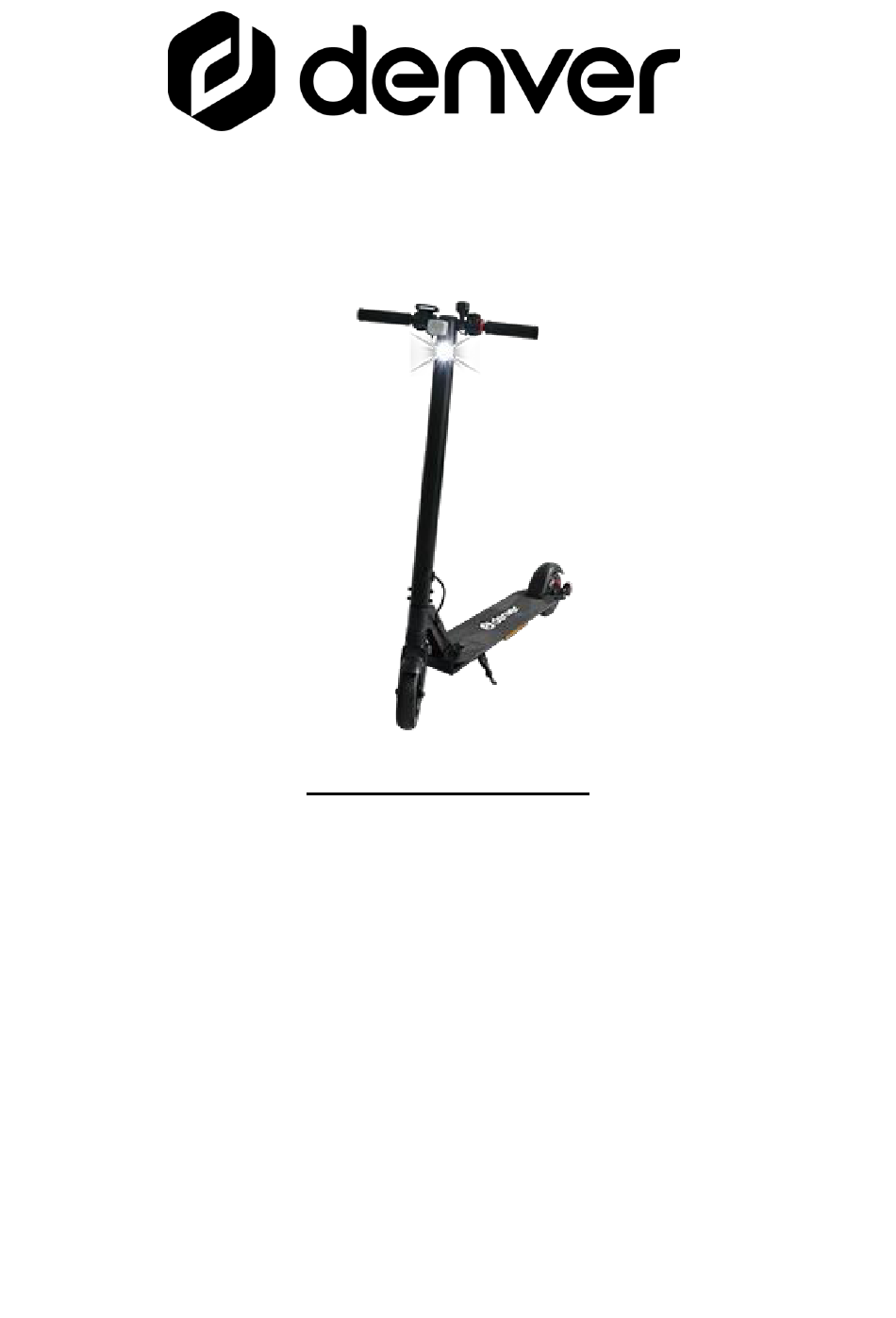

Original manual
SEL-65115
facebook.com/denver.eu
Before operating this vehicle, read all the instructions for safe assembly and operations.
User's manual can guide you through the functions and usage of Electric scooter. Before
using this Electric scooter, familiarize yourself with how to operate, so that you can keep
the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the appliance.
This appliance contains batteries that are not replaceable.
Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-65115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver Electronics SEL-65115

Summary of Contents for Denver Electronics SEL-65115

  • Page 1 Original manual SEL-65115 facebook.com/denver.eu Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.

  • Page 2: Table Of Contents

    Table of Contents 1. Product and Accessories................... 3 2. Unfold/fold the Electric scooter................4 3. Handle bar assembly....................5 4. Connect the charger....................6 5. Intended Use......................7 6. Safety Instruction...................... 7 7. Maintenance......................9 8. Operational control....................11 9. Riding Electric scooter.................... 13 10.

  • Page 3: Product And Accessories

    Product and Accessories Bell Menu screen LED light Electric brake White reflector Throttle Shock absorption Mechanical brake Foldabl 6.5” wheel size Back light Built-in rechargeable battery (25.2V~4000mAh) - It takes approximately 3 hours to fully charge the electric scooter. IMPORTANT: This Electric scooter must be charged and stored in a safe place.

  • Page 4: Unfold/Fold The Electric Scooter

    Unfold/fold the Electric scooter  Unfold the Electric scooter 1) Stand the Electric scooter on its wheels, and press the unlock clasp. 2) Pull up the handle in a gentle way. 3) The Electric scooter is unfolded as soon as you hear the rod click into place. ...

  • Page 5: Handle Bar Assembly

    4) Dual action safety knob Fold-Unfold Position Push up and press the red button to fold or unfold the Electric scooter. Handle bar assembly 1) Parts inside the packaging: two handlebars 2) Change display angle: Loosen the screw on the handlebar, and rotate the axle to make the handlebar meter screen upwards while the and display screen turn inwards in a horizontal level.

  • Page 6: Connect The Charger

    Connect the charger Plug the supplied adapter into the charging port. Charging port...

  • Page 7: Intended Use

    Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10.
  • Page 8 Avoid applying too much force or stepping on the rear fender permanently. This may cause the fender to loosen or damage the spring holding the fender. As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the additional resistance.

  • Page 9: Maintenance

    Maintenance To ensure you get the best possible performance and experience from your electric scooter, it is important to do regular maintenance for important parts of the product. ● Battery maintenance ● Bearings, Screws, Brakes and Wheels ● Storage and Cleaning Your electric scooter will require some maintenance so please read and familiarize yourself with this guide.
  • Page 10 Please make sure to charge the battery before it is completely out of power, to avoid damaging the battery cells. (damaged battery caused by wrong handling are not covered by the warranty) It is forbidden to disassemble battery package. This is only to be handled by official service repair centers and professionals.

  • Page 11: Operational Control

    All parts and materials of electric scooter cannot be changed, modifications of the ● scooter are not allowed. If done, then warranty is void. ● Storage and cleaning If your Electric scooter gets dirty, please clean it with a damp cloth only, you may not use pressured water-gun or running water, as this could damage vital parts.
  • Page 12 There are three buttons in the display, Power button, ▲ Speed up button and ▼ speed down button. Control and display Speed Battery Gear Time Single Mileage Power On: Long press the power button until the display lights up. Power Off: Long press the power button until the display goes out and the system is off. 1.

  • Page 13: Riding Electric Scooter

     Clear total mileage: Press ▲ and ▼ buttons at the same time, then press the power button to switch on the Electric scooter, and the total mileage will be cleared. Important: Press ▲and ▼ buttons at the same time, then press the power button and select P3 mode, when parameter value is 0, it will start with zero.
  • Page 14 9.1 Front and back LED lamps This Electric scooter is equipped with the front and back LED lamps. The front lamp lights white and the back lamp lights red. 1. Walking mode: 6KM/H, when 1 mode, the front and back light will be flashed. 2.

  • Page 15: List Of Parameters

    Battery Charger Rated input voltage(V) 100-240 Rated output voltage(v) 29.4 Rated current (A) Charging Time(h) Electric scooter Model: SEL-65115 Input: 100V-240V~, 50/60Hz, 1.5A (Max) Output: 29.4V 1.5A Max Speed: 20km/h Weight: 11.3 kg Year Of Construction: 2022 Max Vehicle Payload: 100kg Battery: 25.2V/4Ah...

  • Page 16: Electric Scooter Safe Parking

    11. Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. Before you ride again, push the side stand back up so that it is parallel to the foot board.
  • Page 17 It can be released again by pressing On/Off.  Use the device only at temperatures between -10 °C and +45 °C. Range per charge 13.4 The range depends on several factors:  Topography: On level paths you have a greater range than on uneven ground. ...
  • Page 18  Avoid riding in narrow places or in places with obstacles, if possible.  Jumping on and off the Electric scooter will cause damage that is not covered by the warranty. There is a risk of injury. Injuries and damage due to "trick riding" are not covered by the warranty.
  • Page 19 The Electric scooter must not be used during the charging cycle!  The LED indicator on the battery charger lights red during the charging process.  The LED indicator on the charger will light green when the charging process is complete.
  • Page 20 IMPORTANT! Read carefully and keep for future reference. Any load attached to the handlebar will affect the stability of the vehicle. Accessories and any additional items which are not approved by the manufacturer shall not be used. WARNING ! As with any mechanical component, a vehicle is subject to high stresses and wear.
  • Page 21 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
  • Page 22 Regarding Battery charging SEL-65115 Important – Please read! Dear customer. We hope you get a lot of joy out of your new Electric scooter. The battery built in the Electric scooter is not fully charged from production line. And when left unused the battery can slowly discharge by itself.
  • Page 23 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-65115 Product type: Electric scooter Year of manufacturing: 2022  Note: ONLY use the supplied charger labelled XHK-922-29415 with the following output voltage to charge this Electric scooter:29.4V – 1.5A.
  • Page 24 Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark certify that the design and manufacturing of this product Product Brand DENVER Name: Product Model No.: SEL-65115 Product type: Electric scooter conforms to the following directives: Machinery directive 2006/42/EC MD Standards: Annex I of 2006/42/EC, EN ISO 12100:2010,...
