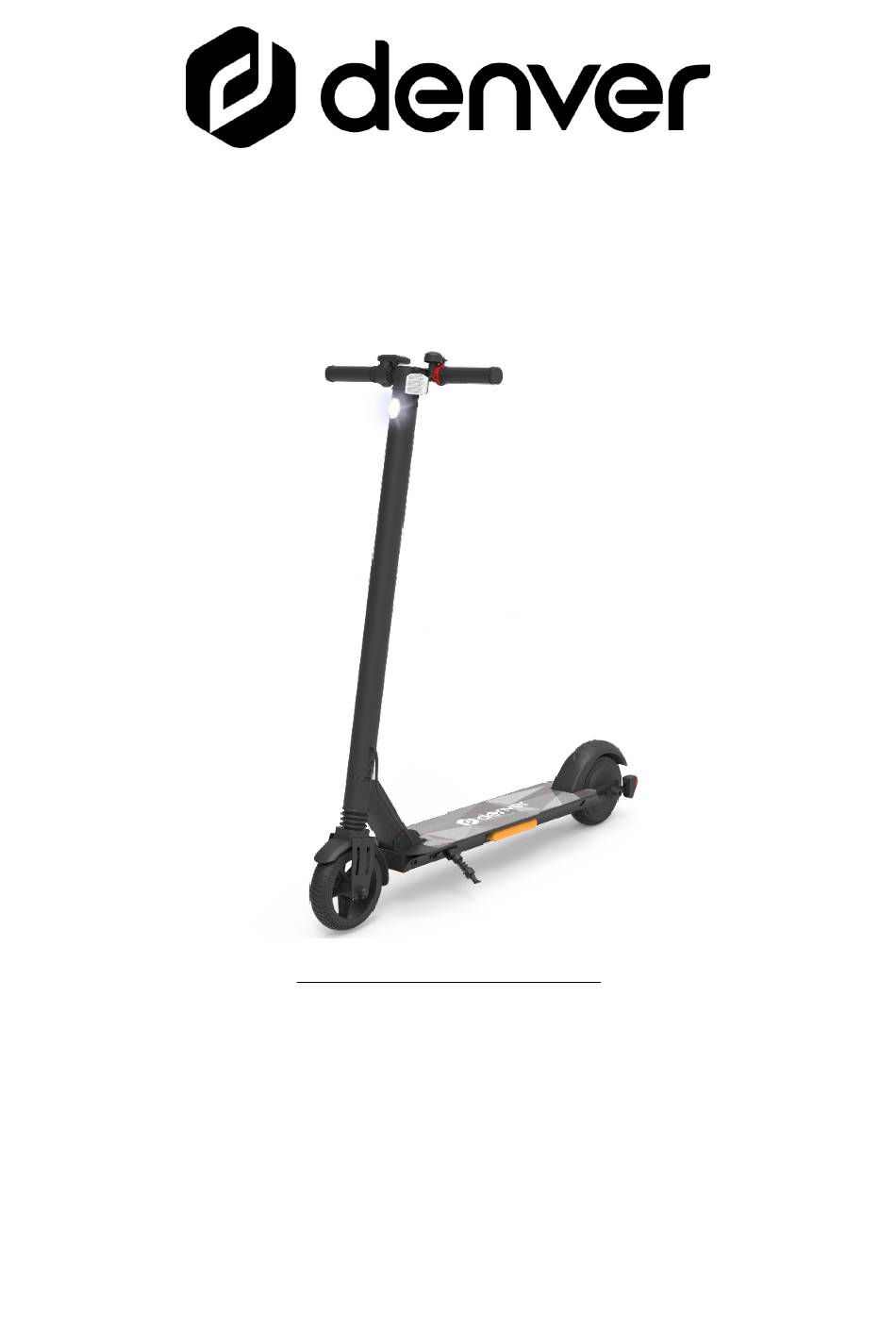

User manual
SEL-65220 MK2
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Version 1.0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver Electronics SEL-65220 MK2
Summary of Contents for Denver Electronics SEL-65220 MK2
- Page 1 User manual SEL-65220 MK2 facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents 1. Product and Accessories....................3 2. Unfold/fold the Electric scooter..................4 3. Handle bar assembly......................5 4. Connect the charger.......................6 5. Intended Use........................7 6. Safety Instruction......................7 Maintenance........................9 8. Operational control....................... 11 9. Riding Electric scooter....................12 10. List of parameters....................... 14 11. -
Page 3: Product And Accessories
1. Product and Accessories Menu screen Bell LED light Electric brake White reflector Throttle Shock absorption Mechanical brake Foldable Back light 6.5” wheel size Built-in rechargeable battery (25.2V~4000mAh) - It takes approximately 3 hours to fully charge the electric scooter. IMPORTANT: This Electric scooter must be charged and stored in a safe place. -
Page 4: Unfold/Fold The Electric Scooter
2. Unfold/fold the Electric scooter Unfold the Electric scooter Stand the Electric scooter on its wheels, and press the unlock clasp. Pull up the handle in a gentle way. The Electric scooter is unfolded as soon as you hear the rod click into place. ... -
Page 5: Handle Bar Assembly
Dual action safety knob Fold-Unfold Position Press the red button to fold or unfold the Electric scooter. Rotate the safety knob to the “FOLDING” position on the left or right, then press the red button to fold your Electric scooter. Rotate the safety knob to the “RIDING” position, you can start your driving. WARNING The knob must be set to the “RIDING”... -
Page 6: Connect The Charger
4. Connect the charger Plug the supplied adapter into the charging port. Charging port... -
Page 7: Intended Use
5. Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. - Page 8 A normally working Electric scooter operates safely and quietly. If you hear noises or notice bumpy operation, please check wheels, bearings, and brakes. Contact your customer service for repair and maintenance, if necessary.
-
Page 9: Maintenance
7. Maintenance To ensure you get the best possible performance and experience from your electric scooter, it is important to do regular maintenance for important parts of the product. ● Battery maintenance ● Bearings, Screws, Brakes and Wheels ● Storage and Cleaning Your electric scooter will require some maintenance so please read and familiarize yourself with this guide. - Page 10 Please check the screws regularly and tighten if they seem loose. Brakes: Check the brake for wear at regular intervals to avoid unsafe riding. Do not apply excessive force to avoid damage to the brake. Wheels: Check the wheels for wear at regular intervals to avoid unsafe riding. Electric scooters come with different wheels but can in general be separated into tires with inflatable inner tubes and solid wheels.
-
Page 11: Operational Control
8. Operational control For better operation, please read the instructions carefully. Speed up button Power button Speed down button Accelerator button Electric brake button Button There are three buttons in the display, Power button, ▲ Speed up button and ▼ speed down button. Control and display Speed Battery... -
Page 12: Riding Electric Scooter
Important: Press ▲and ▼ buttons at the same time, then press the power button and select P3 mode, when parameter value is 0, it will start with zero. When parameter value is 1, it will start with non-zero. (Zero start: When starting, the Electric scooter in a stationary case, press the accelerator to start driving.) (Non-zero start: When starting, the scooter is static, press the accelerator and the Electric scooter does not work, push the Electric scooter manually to start driving, the Electric scooter works. - Page 13 Front and back LED lamps This Electric scooter is equipped with the front and back LED lamps. The front lamp lights white and the back lamp lights red. 1. Walking mode: 6KM/H, when 1 mode, the front and back light will be flashed. 2.
-
Page 14: List Of Parameters
Rated input voltage(V) 100-240 Rated output voltage(v) 29.4 Rated current (A) Charging Time(h) Electric scooter Model: SEL-65220 MK2 Input: 100V-240V~, 50/60Hz, 1.5A (Max) Output: 29.4V 1.5A Max Speed: 20km/h Weight: 10.6 kg Year Of Construction: 2021 Max Vehicle Payload: 100kg Battery: 25.2V/4Ah... -
Page 15: Electric Scooter Safe Parking
11. Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. Before you ride again, push the side stand back up so that it is parallel to the foot board. - Page 16 Familiarize yourself with the vehicle before you use it so that you can keep the Electric scooter in sound condition. Observe all safety instructions when riding the Electric scooter. The Electric scooter is designed only for personal entertainment. Avoid operating it on public roads/in road traffic. ...
- Page 17 CAUTION Do not remove the protective cap from the DC input! Remove the cap only when charging the Electric scooter! After charging, disconnect the DC plug and close the DC input again with the cap! WARNING Make sure that neither water nor other liquids penetrate into the inner components of the Electric scooter; otherwise, the electronics/batteries of the device could be permanently damaged.
- Page 18 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 19 Regarding Battery charging SEL-65220 MK2 Important – Please read! Dear customer. We hope you get a lot of joy out of your new Electric scooter. The battery built in the Electric scooter is not fully charged from production line. And when left unused the battery can slowly discharge by itself.
- Page 20 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-65220 MK2 Product type: Electric scooter Year of manufacturing: 2021 Note: ONLY use the supplied charger labelled XHK-922-29415 with the following output voltage to charge this Electric scooter:29.4V –...
- Page 21 DENVER ELECTRONICS A/S EC Declaration of Conformity (Machinery Directive) The undersigned Company Name: DENVER ELECTRONICS A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark certify that the design and manufacturing of this product Product Brand Name: DENVER Product Model No.: SEL-65220 MK2...
