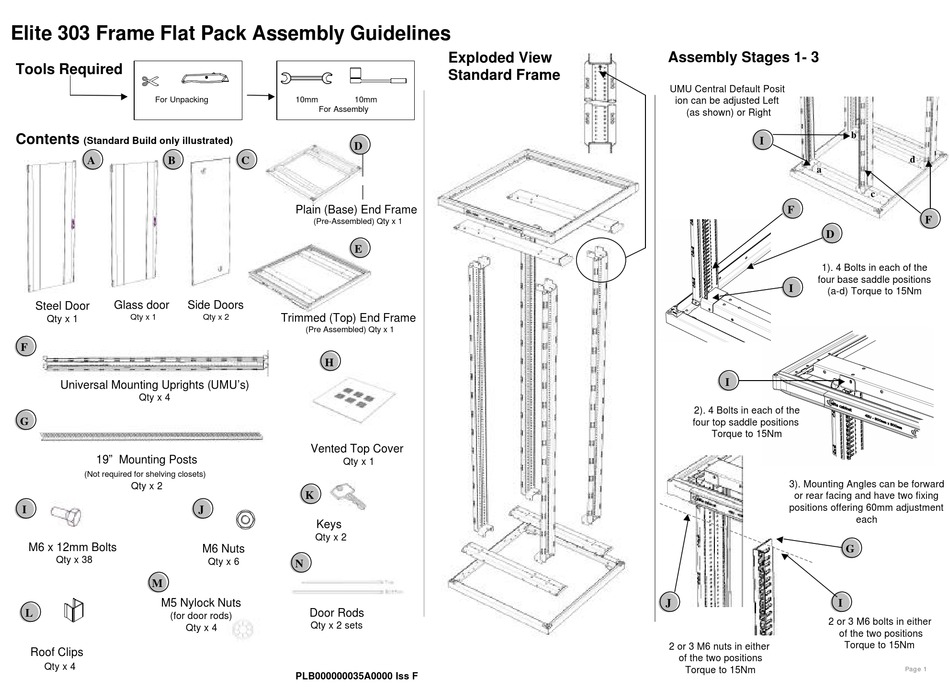

Elite 303 Frame Flat Pack Assembly Guidelines
Tools Required
$
For Unpacking
Contents
(Standard Build only illustrated)
A B
Glass door Side Doors
Steel Door
Qty x 1
Qty x 1
F
Universal Mounting Uprights (UMU's)
Qty x 4
G
19" Mounting Posts
(Not required for shelving closets)
Qty x 2
I
M6 x 12mm Bolts
Qty x 38
M
M5 Nylock Nuts
L
(for door rods)
Qty x 4
Roof Clips
Qty x 4
10mm 10mm
For Assembly
D
C
Plain (Base) End Frame
(Pre-Assembled) Qty x 1
E
Trimmed (Top) End Frame
Qty x 2
(Pre Assembled) Qty x 1
H
Vented Top Cover
Qty x 1
K
J
Keys
Qty x 2
M6 Nuts
Qty x 6
N
Door Rods
Qty x 2 sets
PLB000000035A0000 Iss F
Exploded View
Standard Frame
Assembly Stages 1- 3
UMU Central Default Posit
ion can be adjusted Left
(as shown) or Right
I
a
F
D
1). 4 Bolts in each of the
four base saddle positions
I
(a-d) Torque to 15Nm
I
2). 4 Bolts in each of the
four top saddle positions
Torque to 15Nm
3). Mounting Angles can be forward
or rear facing and have two fixing
positions offering 60mm adjustment
G
J I
2 or 3 M6 bolts in either
of the two positions
Torque to 15Nm
2 or 3 M6 nuts in either
of the two positions
Torque to 15Nm
b
d
c
F
each
Page 1
