Y = Desired length cut from 1 metre extrusion
A Holes are not provided
Y = Gewünschte Länge (vom 1 Meter langen
stranggepresstem Träger abgeschnitten)
A. Nicht werksseitig vorgebohrt
For use with DIN Rail mounted PCB Holder 453-397
1. The printed circuit board holder is designed to accept 100mm wide
Eurocard. Once the board length has been ascertained the
extruded length may be cut to the desired length,Y, (see figure 1).
2. The DIN rail mounts are fixed to the extruded carrier with the
smaller screws supplied. Invert the carrier and using the two
grooves in the body as guides drill M2 clearance holes. The number
of mounts used being dependant on the length to be used and
weight to be supported.
3. The circuit board may now be inserted into the carrier and the end
plates secured with the screws provided. The completed system
may now be clipped into the desired DIN rail profile.
RS Components shall not be liable for any liability or loss of any nature (howsoever
caused and whether or not due to RS Components' negligence) which may result
from the use of any information provided in RS technical literature.

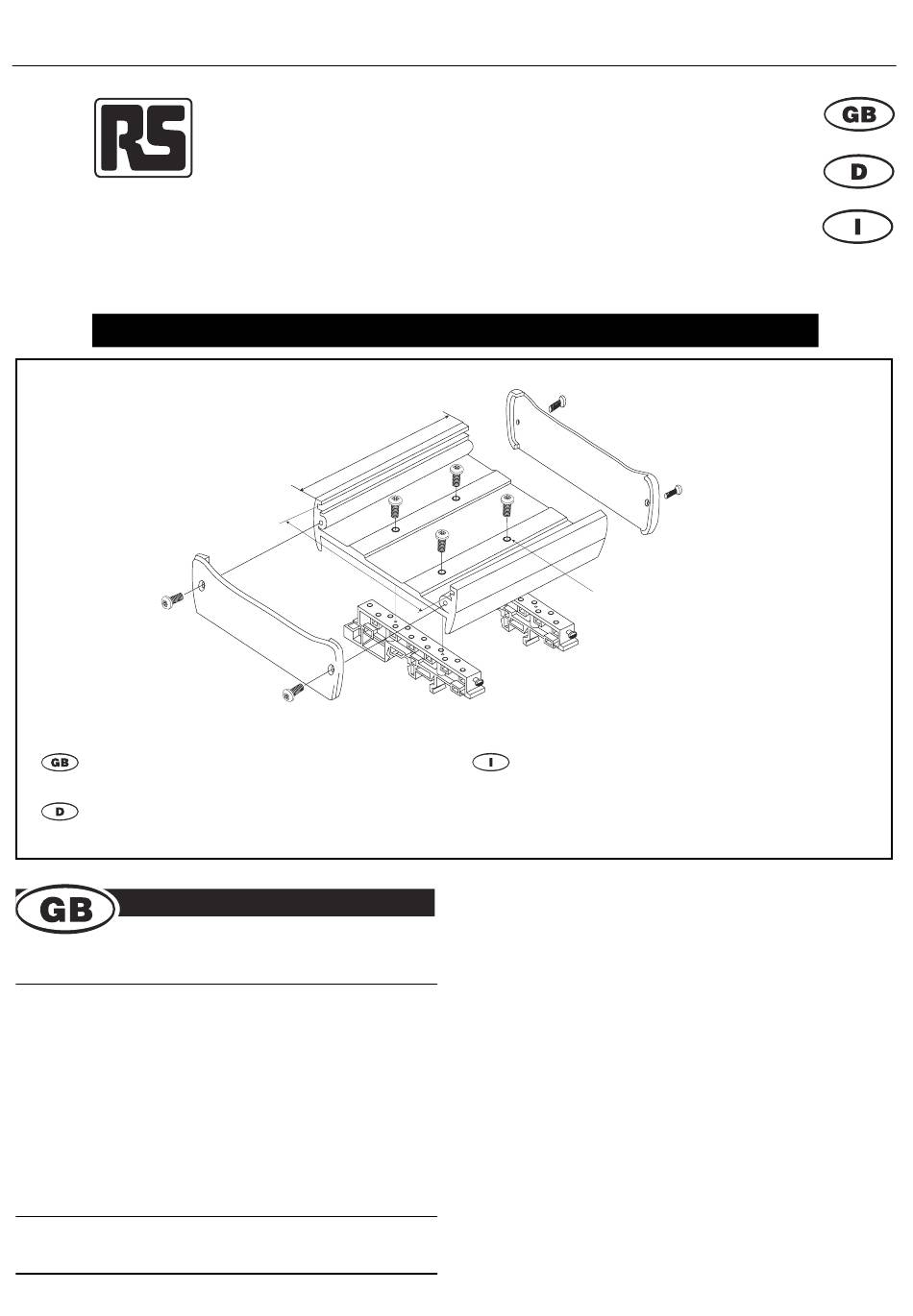

Figures / Abbildung / Figura
