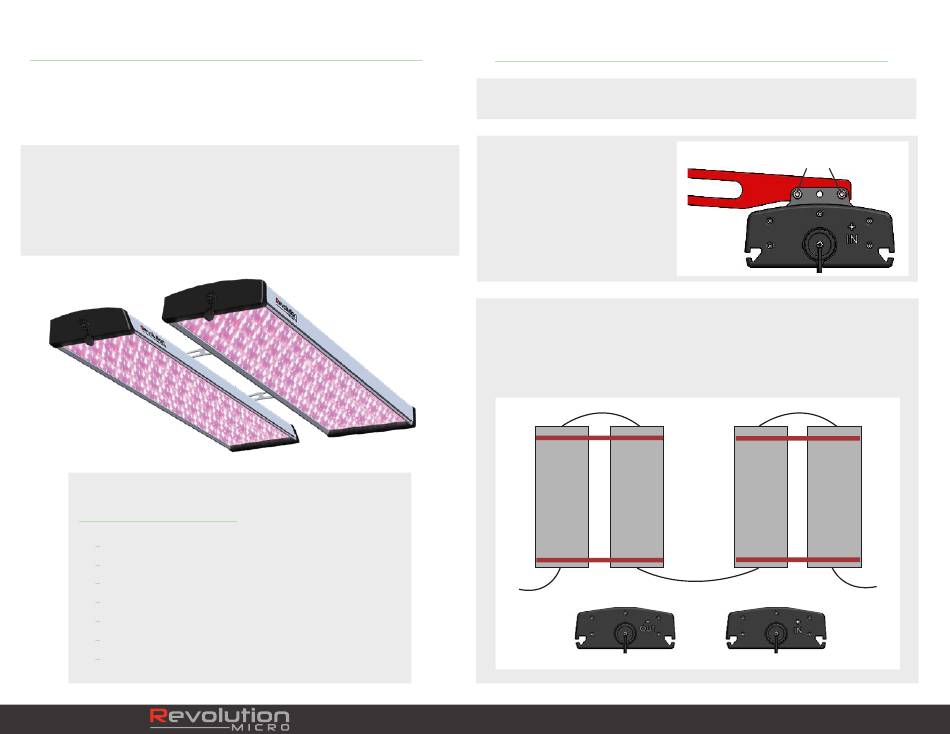

Avici Integrated LED Lighting System
120/240/277v or 347v
Owner's Manual June 1, 2022
Congratulations on your new Avici 1500. The Avici combines an array
of Osram LEDs with our custom-designed drivers for one amazing,
programmable spectrum, computer-controlled grow lighting system.
This manual will tell you how to hang, connect and operate your new Avici.
The Box Contains
Avici 1500 Integrated LED Lighting System
Power Cord (NEMA 6-15P standard)
Two (2) RJ-14 Data Cables
RJ-14 Dual Splitter
Two custom wire light hangers
Two red connectors
Screws
Installing The Avici 1500
1
To assemble an Avici 1500, you will need a 4.5mm Allen wrench.
.
2
Screw the red hanger
.
onto the metal tab on
the front and back of
the two panels.
3.
The bars need to be arranged in the following pattern so
the power flows through one bar to the next. The ends of the
bar are labeled either IN or OUT, and should be alternated with
consideration for how it will be wired.
OUT
IN
info@revmicro.com
SCREWS
IN
OUT
OUT
IN
404/334-9788
IN
OUT
Advertisement
Table of Contents
Related Manuals for Revolution Micro Avici 1500
Summary of Contents for Revolution Micro Avici 1500
- Page 1 Avici Integrated LED Lighting System Installing The Avici 1500 120/240/277v or 347v To assemble an Avici 1500, you will need a 4.5mm Allen wrench. Owner's Manual June 1, 2022 Screw the red hanger SCREWS Congratulations on your new Avici 1500. The Avici combines an array...
- Page 2 Use the two hangers included in the box to mount the Rotate the locking ring until it begins Avici 1500 to the racking system or ceiling by hooking to thread onto the socket. Continue them through the holes on the red connector.
- Page 3 Power Cables Data Cables and Connections Continued Avici 1500 LED lights have a wide-input power supply of 120/240/277 volts, and can be ordered with various power cords as noted below. Look at the cable ends in the pic to the The Avici 347v version is direct-wire, with a 3 meter pigtail cable attached.
- Page 4 Dimensions Blinks Four Times A Second – Over Voltage Avici 1500 or Under Voltage 1061mm \ 42” If supplied power is outside safe operating range for the Avici, the LED will flash quickly to let you know the fixture is working but not going to come on.
- Page 5 Specifications FCC Compliance Statement Spectrum Programmable Avici 1500W 4,620 μMole/sec dimmable in 1% steps The Avici Integrated LED Lighting System has been tested Max Wattage 1500w at FCC-certified laboratories in the United States and conforms to FCC’s Part 15B Consumer standard for both Input Current 12.5 A @ 120 volts, 6.25 A @ 240 volts, 5.4 A @ 277 volts conducted and radiated emissions.
