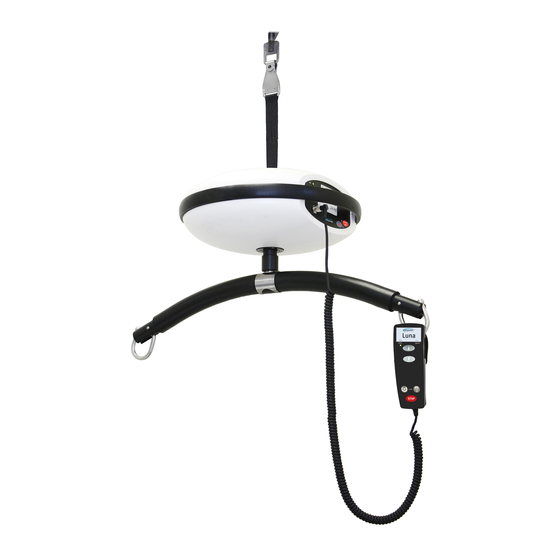

ergolet Luna/200 User Instruction

Ceiling hoist

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

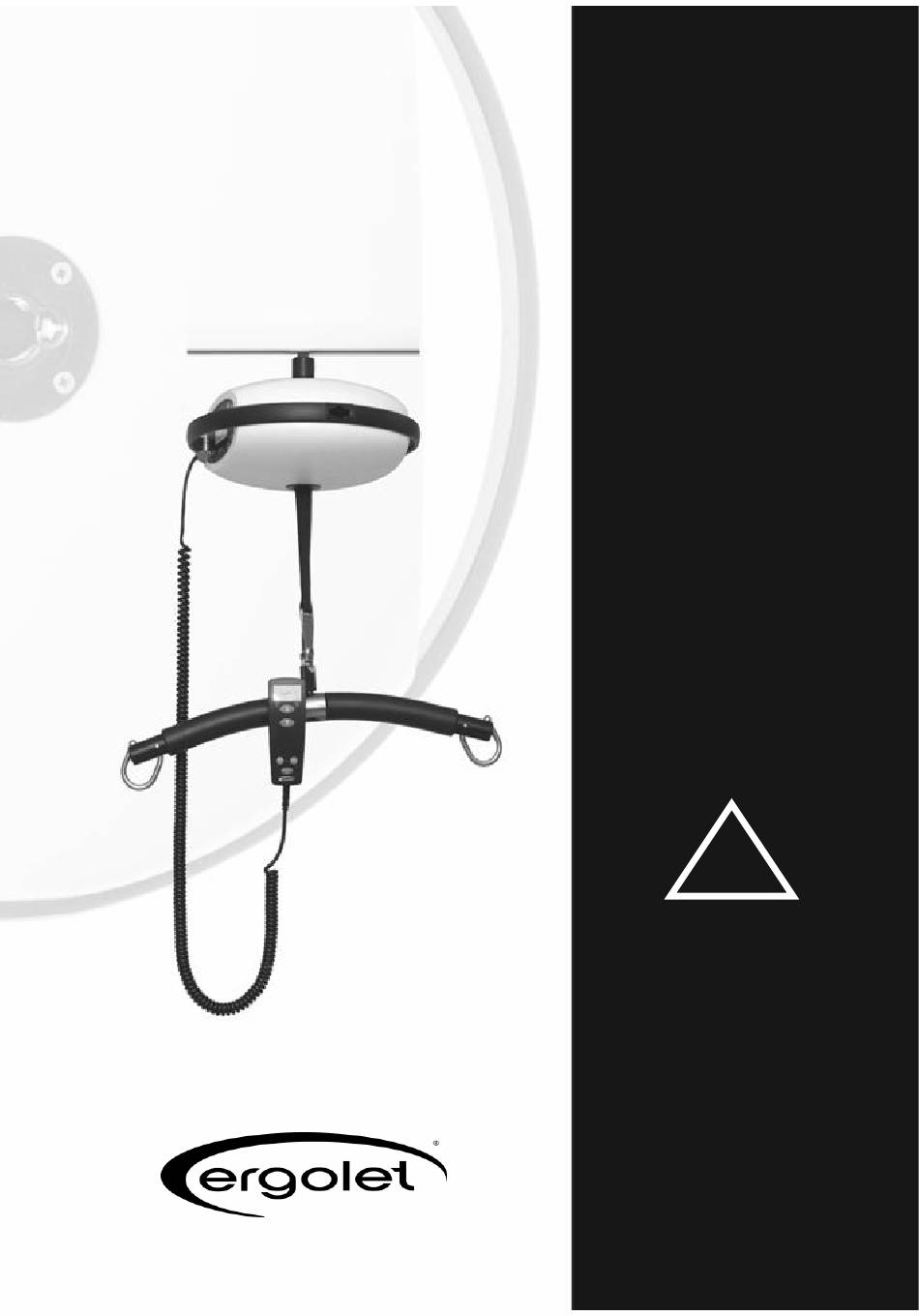

Luna/200

Luna/275

Ceiling hoist

User instruction

Important - warning

This manual must be read before the

Luna is used

This manual is intended for technicians,

installers, therapists and other personnel,

in connection with the use, servicing and

maintenance of the Ergolet Luna ceiling

hoist.

Date: 1.10.2012 - Version 18

Need help?

Do you have a question about the Luna/200 and is the answer not in the manual?

Questions and answers

Summary of Contents for ergolet Luna/200

Page 1 This manual must be read before the Luna is used This manual is intended for technicians, installers, therapists and other personnel, in connection with the use, servicing and maintenance of the Ergolet Luna ceiling hoist. Date: 1.10.2012 - Version 18...
Page 4 System assembly is carried out by installers authorised by Ergolet. Luna can only be fitted with spreader bars supplied by Ergolet. The Luna system has been developed for use with Ergolet lifting slings and other sling products authorised by Ergolet. See Ergolet’s sling leaflet for specific information about authorised models.
Page 5 Ergolet have carried out a safety check on the unit. 4) Check that the lifting strap moves into the lifting unit without touching the edges of the hole. If in any doubt concerning the use of Luna or lifting slings contact Ergolet for advice and guidance. Track system...
Page 6 Check that all the parts are present and undamaged. Any suspicion of damage or shortage should be reported to your dealer or Ergolet. We recommend that the box packaging is kept if Luna is to be used on other sites or for return shipment in case of repair or annual check.
Page 7 (see fig. 1.6C). Leave the hook on the extension arm and the hook will be ready for the next mounting. Fig. 1.6C Extension arm or Luna Trolley with extension arm can be purchased from Ergolet or your local dealer.
Page 8 The spreader bar is mounted relevant to the chosen lift fixing position. The spreader bar is fitted with a bayonet bracket which can be fitted directly onto the Luna cassette. Note that the spreader bar is always fitted directly opposite the strap exit on the Luna. (Fig. 1.7A) ( 1 ) Lift the spreader bar up to Luna, push the bayonet bracket up into Luna’s corresponding hole (opposite the strap exit).
Page 9 Fig. 1.7D dealer or Ergolet. Luna spreader bars are designed for use with Ergolet lifting slings. Ergolet lifting slings have 2-6 lifting straps and are designed for lifting hooks larger than ø8mm. Use of non-authorised slings will rend Ergolet’s responsibility for faults and accidents null and void.
Page 10 – If LED is off Luna is in “sleep” mode. The LED light will turn on when the button up or down on the hand control is pressed. – Indicates the level of the battery (see section 2.5). – on both side foils, constant hold will move the lift in the desired direction.
Page 11 – The LED light will turn on when the button up or down is used. – indicates the state of the battery (see section 2.5) – constant hold will move the lifter in the desired direction – release to stop. –...
Page 12 Connect the hand control to the plug inlet on the front panel, see fig. 2.1 (pos 5). Luna is now ready for use. Luna will not operate before spreader bar, hand control and Luna is mounted correctly. Luna will move faster when not loaded in order to reach the client without too much waiting time.
Page 13 Green → When this diode shine constantly the batteries are fully charged. Luna is fitted with batteries that require regular charging. Ergolet recommends that Luna is charged every night or when the unit is not in use. Luna is fitted with a diode (marked BATT.) which gives the following information concerning battery condition during use: Green →...
Page 14 Luna is ready for use if all the assembly instructions have been followed. The hand control is fitted to Luna via the plug (page 10 fig. 2.1A) and is used to activate the unit. only possible with Luna for 200 kg 1) Luna (a) with client is moved to the door after which the lifting strap from Luna (b) is extended and fitted on the extra bracket on the spreader bar.
Page 15 only possible with Luna for 200 kg The Luna unit and the cart in the other room are moved as close to each other as possible. 1) Luna (a) with client is moved to the door and the transfer strap (c) from the other room is fitted to the vacant ring bracket on Luna (a).
Page 16 ( f ) (see fig. 3.2C). 3) Ensure that the screw (d) and the bolt (e) is tightened before the Luna is mounted on the cart. Contact Ergolet for further information. fig. 3.2C It is important to ensure that the Luna lifting unit does not get in contact with water when using it in a shower or bathing environment.
Page 17 Ergolet for replacing batteries, lifting straps and other components The manufacturer Ergolet stipulates that this track lift MUST be checked by a qualified and authorised person at least once a year. This annual check is also recommended in the relevant European Standard (EN ISO 10535) for patient lifters/hoists including track lifters.
Page 18 Luna is not on or emergency stop is activated Luna does not react when Deactivate emergency stop (see section 2.4) the hand control buttons Defect hand control UP/DOWN are used (No Check if the lift reacts using the cassette panel buttons. ”beep”...
Page 19 Lifting strap cannot come higher up due to Does not lift high enough the track position The straps on the chosen sling are too long. Contact Ergolet or your dealer. Several solutions to this problem. Charger not connected to main supply. Does not charge Connect charger.
Page 20 High impact, moulded ABS Noise: Lwa during lifting/lowering without load is 49 dB(A) Lwa during lifting/lowering at maximum load is 53 dB(A) IP-class: Lifting unit: IP20 Charger: IPX4 Hand control: IPX4 More test results may be available by contacting Ergolet.
Page 21 Disposal of this track lift can be made through Ergolet. After Luna’s useful lifetime Ergolet will receive the unit back and split the individual fractions in an environmentally friendly way either through reuse or recycling.
Page 22 015-01984 w. double hook 48 cm 015-01990 Strap mounting 015-01991 Bayonet mounting 015-01985 Strap mounting 015-01986 Bayonet mounting 015-01968 Strap mounting 015-01974 Bayonet mounting A complete list of spare parts for the Luna is available. Please contact Ergolet for details.
Page 24 Tlf: + 45 70 27 37 20 Taarnborgvej 12 C Fax: + 45 70 27 37 19 E N I S O 1 0 5 3 5 4220 Korsoer Email: ergolet@ergolet.dk E N 6 0 6 0 1 - 1 - 2 Denmark www.ergolet.com 910-00757UK...
