ergolet Stellar/170 User Instruction

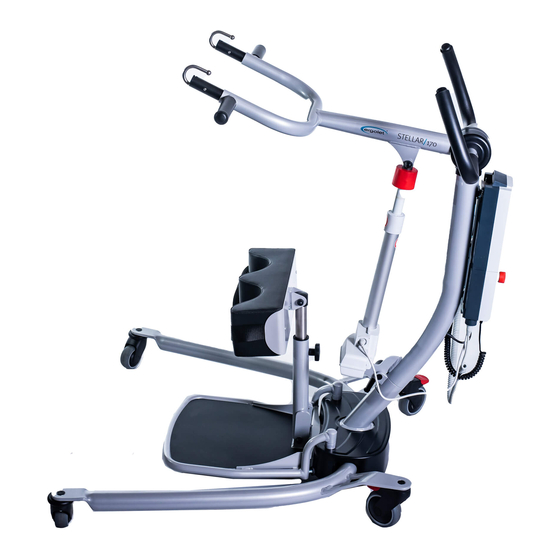

Stand-aid lifter / hoist
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Stellar/170
Stand-aid
lifter/hoist
User instruction
Important information
This user instruction must be read
before the Stellar/170 is used.
This user instruction is intended for
technicians, installers, therapists and
other personnel, in connection with
the use, servicing and maintenance
of the Stand-aid lifter/hoist.
Scan the QR-code for further information
Date: 09.09.2020 - Version 01

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the Stellar/170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ergolet Stellar/170

Summary of Contents for ergolet Stellar/170

  • Page 1 Stand-aid lifter/hoist User instruction Important information This user instruction must be read before the Stellar/170 is used. This user instruction is intended for technicians, installers, therapists and other personnel, in connection with the use, servicing and maintenance of the Stand-aid lifter/hoist.

  • Page 3: Table Of Contents

    Contents Aim and use ..................4 Purpose ..................... 4 Safety instructions ..................4 Before use ....................5 Terminology ....................5 Unpacking....................6 Assembling instruction ................6 Mounting of lifting slings ................8 Functions .................... 9 Pictograms and functions – control-box ........... 9 Pictograms and functions –...

  • Page 4: Aim And Use

    IM AND USE 1.1 Purpose Stellar/170 is a mobile stand-aid lifter/hoist, designed to transfer persons in institutions such as nursing homes, hospitals, care centres and in homecare. Stellar can be used for transfer between bed and chair/wheelchair, from chair to another chair and from wheelchair to a toilet/commode.

  • Page 5: Before Use

    1.3 Before use The carer/helper is responsible for ensuring that a daily check is carried out BEFORE the Stellar and accessories are used, including the following: Check that the Stellar is complete, and no parts are missing. Check that there are no signs of rust, wear and tear or other defects. If there is any sign of a defect the Stellar must be taken out of service.

  • Page 6: Unpacking

    1.5 Unpacking Check that all the parts are present and undamaged. Any suspicion of damage or shortage should be reported to your dealer or Winncare Nordic. We recommend that the box packaging is kept if the Stellar is to be used on other sites or for return shipment in case of repair or annual check.
  • Page 7 3. Mount the foot plate into the corresponding holes on the base. (Fig. 1.6D) Fig. 1.6D 4. Assembly the actuators piston rod to the lifting arm. Use the Allen key and the spanner to tighten the bolt/nut. (Fig. 1.6E). Put the cap on the nut. Fig.

  • Page 8: Mounting Of Lifting Slings

    1.7 Mounting of lifting slings The Stellar lifting arm is equipped with hooks, which are designed for use with Winncare Nordic lifting slings. Winncare Nordics lifting slings have 4-6 lifting straps and are designed for lifting hooks larger than ø8mm or (0.3 in). If using non-authorized slings Winncare Nordic will have no responsibility for faults and accidents.

  • Page 9: Functions

    2. F UNCTIONS 2.1 Pictograms and functions – control-box (1) Connecting plug - hand control (2) Connecting plug - lifting actuator (3) Connecting plug - electrical leg spreading (4) Connecting plug - power supply (5) ON – indicates that main supply is on. (6) Charge –...

  • Page 10: Pictograms And Functions - Hand Control

    2.2 Pictograms and functions – hand control (1) Service – See section 3.2 (2) Battery – indicates the state of the battery (see section 2.4) (3) Max Kg – indicates an overload (see section 3.2) (4) Up/Down – These functions operates the lifting arm to move up or down.

  • Page 11: Charging

    Emergency lowering: This function is only to be used in an emergency, where it is necessary to safely lower a patient. The emergency lowering is placed on the lifting actuator and is activated by turning the red knob clockwise, the lifting arm will then be lowered.

  • Page 12: Transport

    2.5 Transport The Stellar is most safely transported using the original packing. Symbols are printed on the packaging to ensure the best information to carrier companies. 3. U 3.1 Using the Stellar Stellar is ready for use if all assembly instructions have been followed and the emergency stop has been released.

  • Page 13: Adjusting The Knee Support

    3.3 Adjusting the knee support Height adjustment: The knee support is adjusted by loosening the hand screw (1). • The knee support adjusted up or down. The upper edge of the knee support should be under the user’s kneecap. • Tighten the hand screw when settings fit.
  • Page 14 Move the Stellar to the user and place the • user’s feet on the foot plate. • Fit the side pieces under the user’s arms and fasten the sling loops on the sling hooks on the lifting arm. The user may have their arms outside as •...

  • Page 15: Maintenance

    4. M AINTENANCE 4.1 Cleaning The Stellar may be cleaned using a slightly damp cloth with a standard household cleaning agent. Chemicals and other strong/abrasive agents must not be used. It is recommended that the Stellar be cleaned after each use to avoid infection. The Stellar can be disinfected with household alcohol.

  • Page 16: Troubleshooting

    Hand Control: All functions work as specified in the user guide. • • Control Box and battery: Correctly mounted. No visible defects. • Wheels: Wheels and brakes work. Securely fastened. Frame and Welding’s: Must be checked for visual signs of cracks, rust or •...

  • Page 17: Technical Data And Dimensions

    6. T ECHNICAL DATA AND DIMENSIONS 7.1 Technical specifications Lifting properties: Load capacity: 170 kg (375 Ib) Number of lift movements: 60-80 with 80kg (176 Ib) / 0.5 m (1.6ft) lift Duty cycle: 10%, max, 2 min/18 min Manually emergency lowering: Electronically lowering: Electrical details: Power supply (Input):...

  • Page 18: Dimensions

    7.2 Dimensions Highest point Maximum reach point Lowest position a) Max. height of CSP* 1600 mm b) Min. Height of CSP* 800 mm c) Lifting range 800 mm d) Min. Dist. from wall to CSP* at max. height (legs spread) 740 mm e) Min.

  • Page 19: Environment And Quality

    7. E NVIRONMENT AND QUALITY Stellar has an expected lifetime of minimum 10 years under the assumption that all recommended service checks have been carried out and that the normal maintenance and care instructions have been followed. 7.1 Disposal Disposal of this Stellar can be made through Winncare Nordic. After useful lifetime Winncare Nordic will receive the Stellar back and dispose of the individual parts in an environmentally friendly way either through reuse or recycling.

  • Page 20: Accessories

    8. A CCESSORIES Wall charger 017-00200EU Wall charger/EU plug 017-00200AUS Wall charger/AUS plug 017-00200UK Wall charger/UK plug Spare parts list can be ordered. Contact Winncare Nordic for more information.
  • Page 24 Manufacturer: Winncare Nordic ApS Phone: + 45 70 27 37 20 9 3 / 4 2 / E Ø F C L A S S I Taarnborgvej 12 C Fax: + 45 70 27 37 19 E N I S O 1 0 5 3 5 4220 Korsoer Email: Info@winncare.dk...
