M-system BX-16G-B Instruction Manual

INSTRUCTION MANUAL
STANDARD RACK MOUNTING FRAME
(with power distributor, double-pole fuse)
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Standard rack mounting frame ..........................................(1)
Conductive plate (red) .......................................................(16)
Conductive plate (black) ...................................................(16)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
COMPONENT IDENTIFICATION
Specifications
(Body side)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL

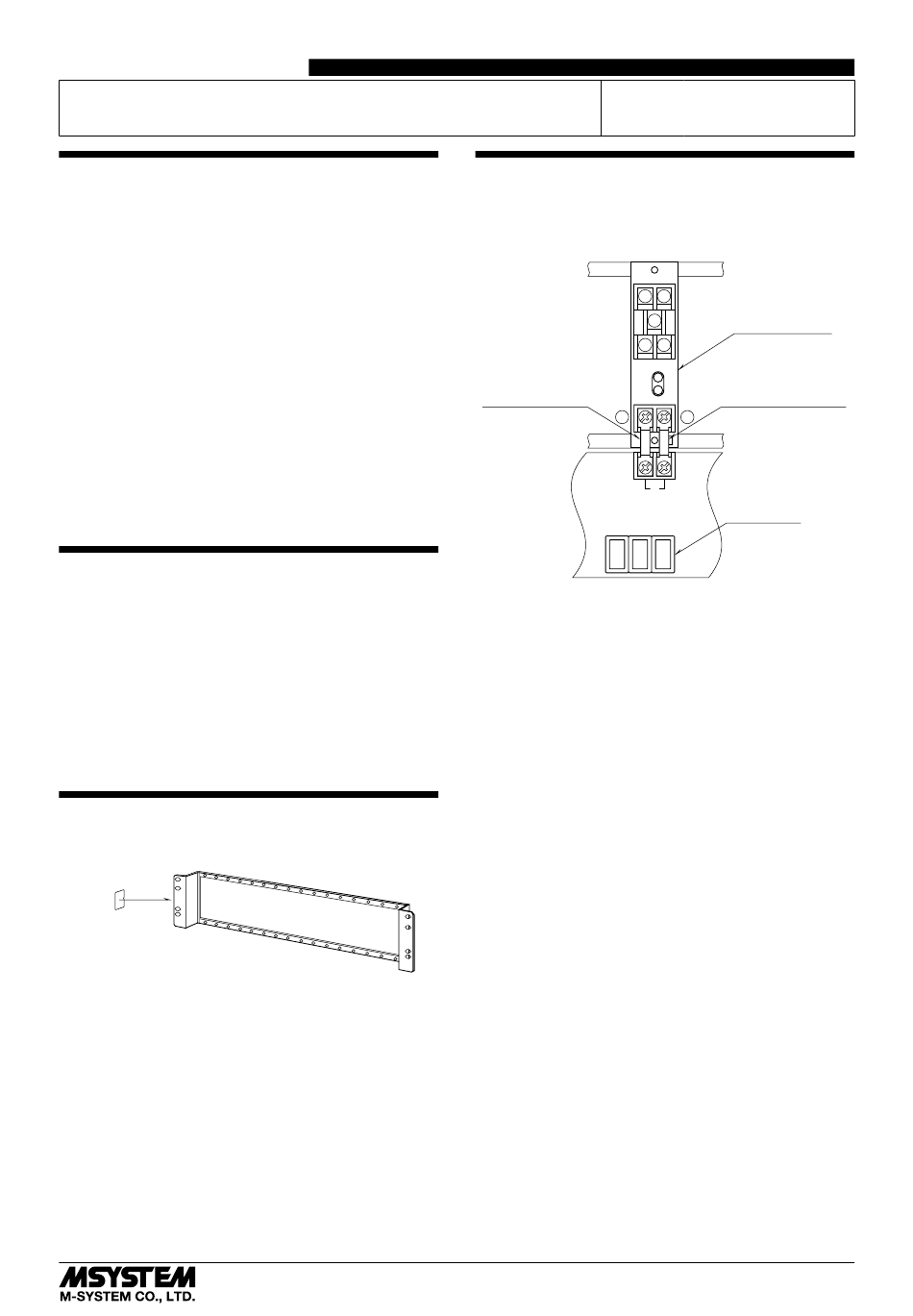

HOW TO CONNECT
Connect signal conditioners to the power distributor via
conductive plates as below.
(16 positions max.)
1
5
Conductive Plate (red)
7
+
• For H-RACK
Connect terminal 7 of a signal conditioner to a plus terminal
of the power distributor via a red conductive plate. Connect
terminal 8 of the signal conditioner to a minus terminal of
the power distributor via a black conductive plate.
• For M-RACK, W-RACK and A-RACK
Connect terminal 12 of a signal conditioner to a plus termi-
nal of the power distributor via a red conductive plate. Con-
nect terminal 13 of the signal conditioner to a minus ter-
minal of the power distributor via a black conductive plate.
Screw terminal torque: 0.8 N·m
BX-16G-B
2
3
Signal Conditioner
6
Conductive Plate (black)
8
−
Alarm Fuse(s)
EM-3832-C Rev.2 P. 1 / 2
