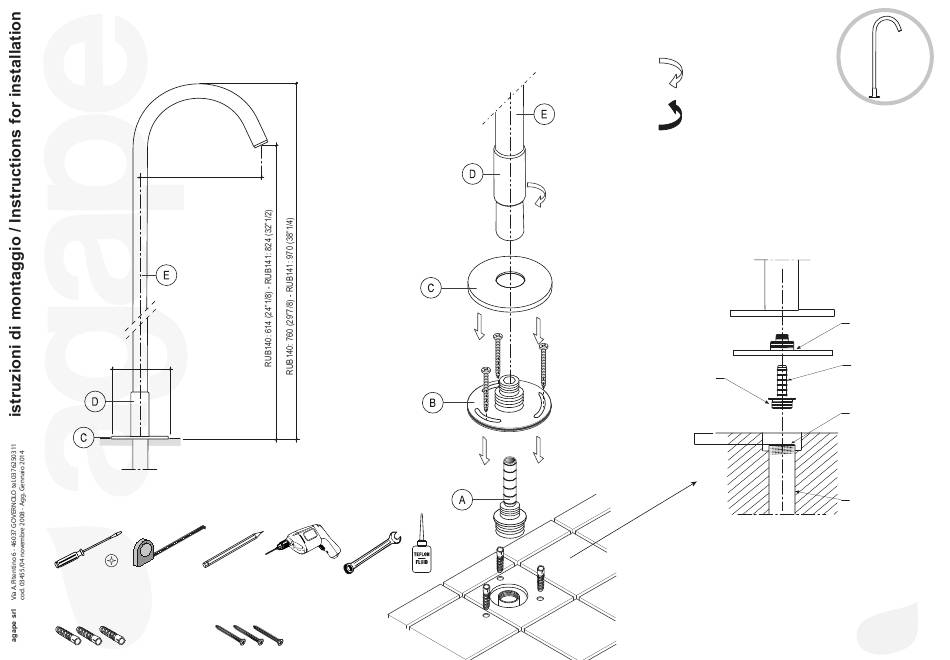

"FEZ" - ARUB0140-141
243 (9"5/8)
Ø 110 (4"3/8)
filo pavimento
floor level
STRUMENTI / TOOLS
FERRAMENTA / FASTENERS
ø 8 (3/8")

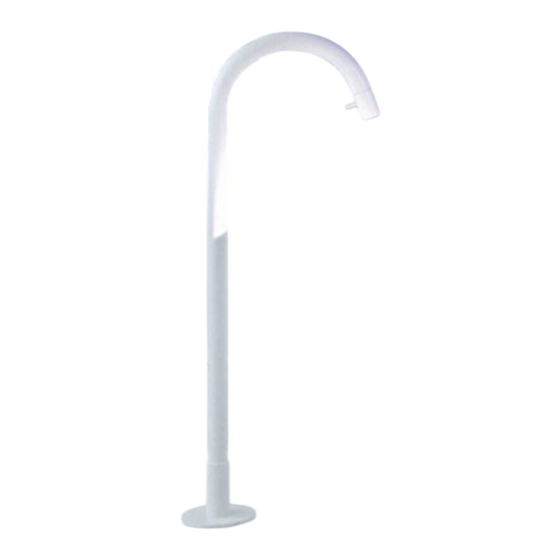

Piantana per vasca da terra / Floor-standing bathtub tap
ø 8 (3/8")
5X60
Senso orario / Clockwise
Senso antiorario / Anticlockwise
MANUTENZIONE / MAINTENANCE
Per la normale pulizia si consiglia di utilizzare detergenti di uso
comune.
Si sconsiglia l'utilizzo di detergenti abrasivi, acidi e anticalcare.
For normal cleaning use common detergents. Do not use either
abrasive detergents or solvents, acids and anti limestone.
PARTICOLARE / DETAIL
3/4"G - M
*
10 - 15
(3/8"- 9/16")
*
almeno 10 - 15 mm / at least 10 - 15 mm
Nota: il tubo di adduzione deve essere al di sotto del filo
pavimento. Eventuali errori in lunghezza possono essere
recuperati con opportuni distanziali filettati.
Note: the mains supply tube must be below the floor level.
Any errors in length can be corrected by using threaded
spacers.
Tubo / Pipe 3/4" G - F
Innesto con OR /
connection with OR
Riduzione / Reduction
3/4"G - F
Tubo/ Pipe 1/2" G
1
