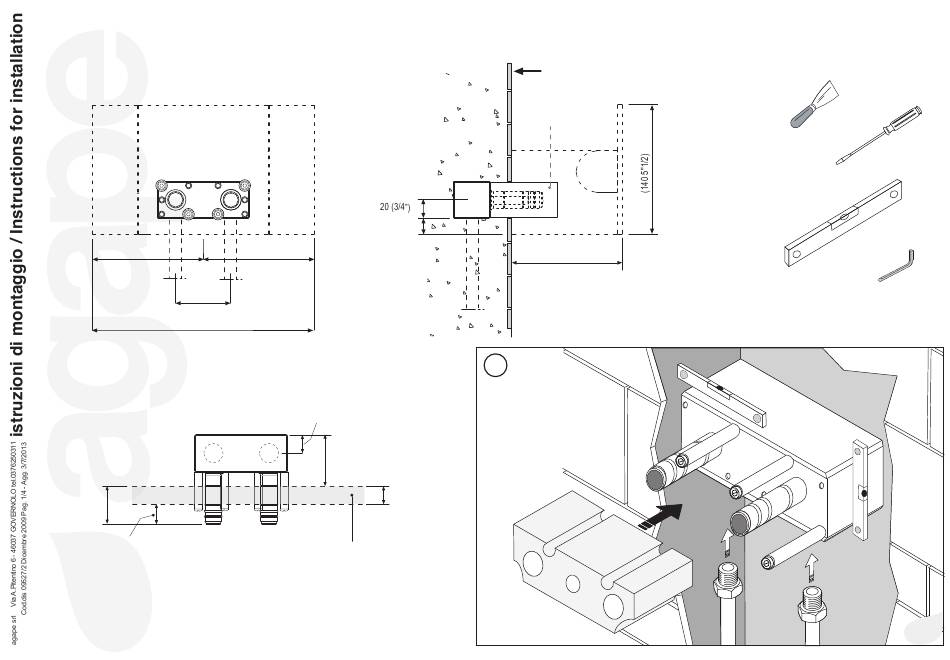

"ASEN0912H / ASEN0912V"
Composto da:
Incasso .ISEN0912 / Concealed bod .ISEN0912
Esterno .ESEN0912HS / External bod .ESEN0912HS
Prospetto frontale / Front elevation
120 (4"3/4)
60 (2"11/16)
240 (9"1/2)
Posizione corpo da incasso e filo rivestimento finito
Position of concealed body and finished wall surface
max 43 (1"3/4)
min 23 (7/8")
Pianta / Plan view
Rubinetto a parete per lavabo o vasca / Wall mounted tap for washbasin or bathtub
Prospetto laterale / Side elevation
17 (5/8")
120 (4"3/4)
20 (25/32")
min. 57 (1"3/4)
20 (25/32")
Area posizione
filo rivestimento finito
Area for positioning of finished
wall surface
Filo muro finito
finished wall surface
Protezione
Protection
120 (4"3/4)
1
Strumenti/Tools
G 1/2"
G 1/2"
1
Advertisement
Table of Contents
Related Manuals for agape ASEN0912H
Summary of Contents for agape ASEN0912H
- Page 1 "ASEN0912H / ASEN0912V" Rubinetto a parete per lavabo o vasca / Wall mounted tap for washbasin or bathtub Composto da: Prospetto laterale / Side elevation Strumenti/Tools Incasso .ISEN0912 / Concealed bod .ISEN0912 Filo muro finito Esterno .ESEN0912HS / External bod .ESEN0912HS...
- Page 2 "ASEN0912H / ASEN0912V" Rubinetto a parete per lavabo o vasca / Wall mounted tap for washbasin or bathtub Dettaglio / Detail Togliere le viti Avvitare il rubinetto Togliere il tampone/ Remove the buffer Remove the screws Screw on the tap part...
- Page 3 "ASEN0912H / ASEN0912V" Rubinetto a parete per lavabo o vasca / Wall mounted tap for washbasin or bathtub Componente/Components Quantità/Quantity vite / screw T.S.P.E.I M 4 x 20 coperchio inferiore / lower flange 2a bocca interna o-ring 0200 3a dado cieco chiave 27...
- Page 4 "SEN912H/V" Rubinetto a parete per lavabo o vasca - smontaggio regolatore di portata Wall mounted tap for washbasin or bathtub - Removal of flow regulator regolator n°27 Regolatore di portata Flow regulator...
