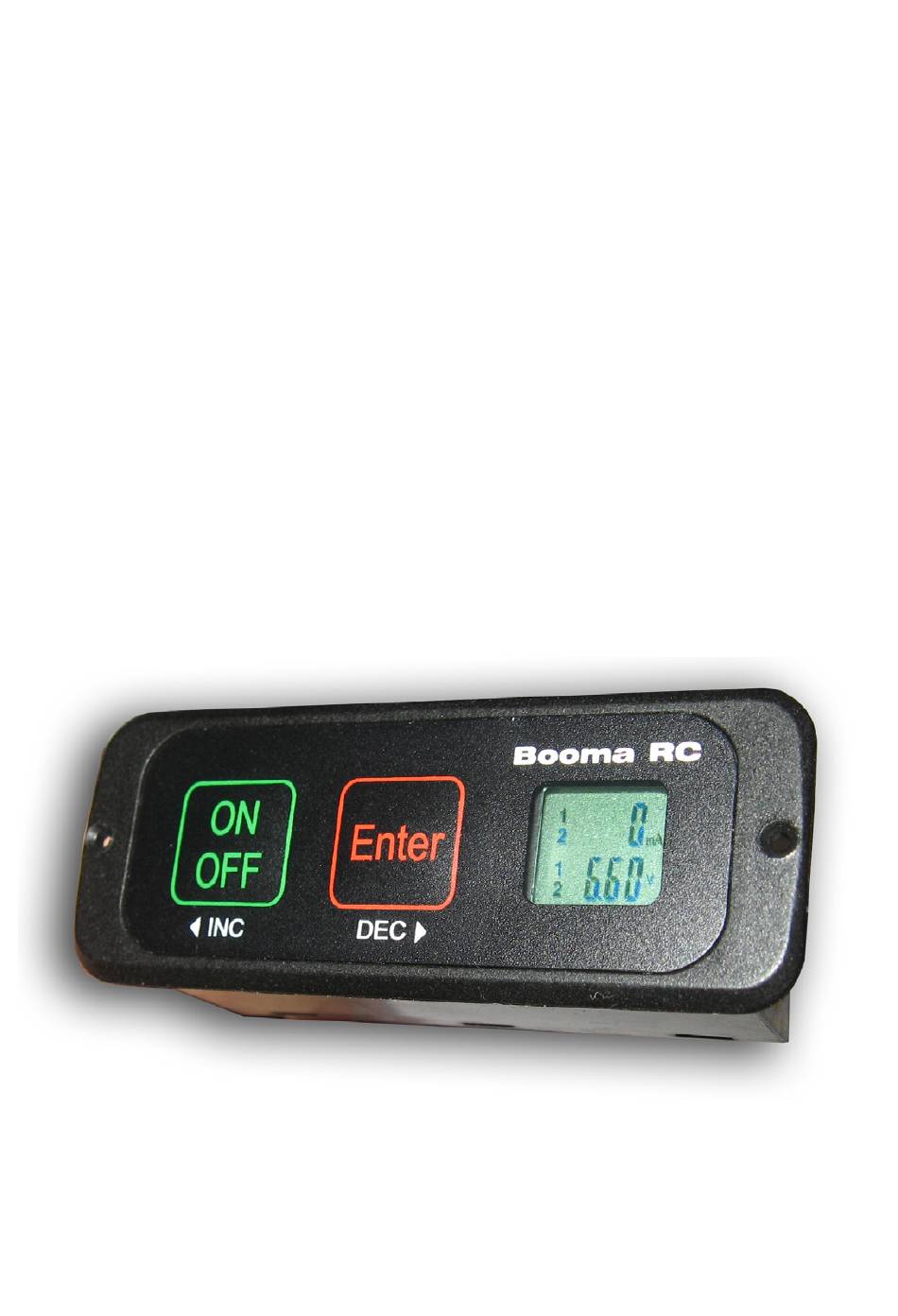

Booma RC
BRC-IS2A
Intelliswitch V2
www.boomarc.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Intelliswitch V2 BRC-IS2A and is the answer not in the manual?

Questions and answers

Related Manuals for Booma-RC Intelliswitch V2 BRC-IS2A

Summary of Contents for Booma-RC Intelliswitch V2 BRC-IS2A

  • Page 1 Booma RC BRC-IS2A Intelliswitch V2 www.boomarc.com...
  • Page 2 Congratulations for choosing the Booma RC Intelliswitch. Intelliswitch is the result of 24 months of design and testing and was designed for giant scale RC and Robotics enthusiasts by a gi- ant scale RC and Robotics enthusiast. Intelliswitch offers features never seen before in Radio Control applications in a compact, light weight and affordable package.
  • Page 3 DO’S DON’TS Intelliswitch comes with 2 completely independent solid state digital switches and the new V2 is designed to isolate 2 batter- ies of the same chemistry and capacity for receiver and servo switching. A matched pair of batteries will give best performance. DO NOT use Intelliswitch with batteries of different voltages or different battery chemistries unless you are an advanced user that is aware of the consequences.
  • Page 4 Typical Connection Examples for Intelliswitch V2 with DualBat DualBat Battery Redundant System. Intelliswitch Version 2 with DualBat Battery Redundant System and Dual Receivers Matched Intelliswitch Receiver 1 Battery 1 Circuit 1 Dual Battery Isolator Matched Intelliswitch Receiver 2 Battery 2 Circuit 2 Intelliswitch Version 2 with DualBat Battery Redundant System and Single Receiver.

  • Page 5: Let's Get Started

    Lets get started Connect both batteries to Intelliswitch (see page 15 for connection details). Do not con- RSET nect Intelliswitch to the receiver just yet. The display will show the letters “RSET”. Intel- liswitch is asking whether you want to reset the battery capacity usage meters which of course you want to after each battery recharge.
  • Page 6 Turning Intelliswitch ON and OFF 1100 Enter 6.61 Intelliswitch is supplied with 2 x fail-safe switches. As long as power is supplied to Intelliswitch it will hold the state of the switch. Intelliswitch also comes with additional protection circuitry to avoid an accidental ON or OFF state. To Switch Intelliswitch ON (after battery con- nection is made) PRESS AND HOLD the GREEN...

  • Page 7: Sleep Mode

    Sleep Mode SLEEP MODE WILL ONLY ACTIVATE WHEN INTELLISWITCH IS IN THE OFF STATE Intelliswitch uses a state-of-the-art low power technology to maxi- mise the life of your batteries. While in the off state Intelliswitch will go into a sleep mode using only 0.4mA to conserve power. You can leave Intelliswitch connected to the batteries however it is advisable to disconnect Intelliswitch from the batteries if storing your model for a long period.
  • Page 8 Template Cutout for Intelliswitch 22.8 mm (0.9 in)
  • Page 9 Paging Through the Displays In both ON and OFF state, Intelliswitch displays several pages of information. Pressing “ENTER” moves one page to the right. SySt 1100 FL-T TENP 1100 6.61 9.30 6.61 Pressing “ON/OFF” moves one page to the left. 1100 FL-T TENP...
  • Page 10 Intelliswitch Pages Page 1- (Switched On/Off Condition) shows battery 1100 1 mAh consumption and battery 1 voltage. 6.61 Page 2- (Switched On/Off Condition) shows battery 1100 2 mAh consumption and battery 2 voltage. 6.61 Page 3- (Switched On/Off Condition) shows Flight FL-T Time in Minutes and Seconds.

  • Page 11: Battery Selection

    Battery selection Intelliswitch comes pre-calibrated to monitor voltage levels and current consumption of LiFeP04 chemistry batteries. If you are us- ing LiPo or Lion batteries you will need to re-calibrate Intelliswitch. Don’t worry, Intelliswitch is easy to calibrate. IMPORTANT - DO NOT MIX BATTERY CHEMISTRY WHEN USING INTELLISWITCH.
  • Page 12 Template Cutout for Intelliswitch 22.8 mm (0.9 in)
  • Page 13 FACTS Why does one Intelliswitch mA meter show a different consump- tion value to the other? Batteries have an internal resistance. Think of this as a force at- tempting to stop current from flowing out of the battery. Not all batteries have the same internal resistance.
  • Page 14 Using Intelliswitch with a Booma RC DUAL-BAT circuit. Intelliswitch now comes with the Booma RC DUAL-BAT circuit built in. This technology provides you with built in battery redun- dancy effectively isolating the batteries from each other. You can also safely connect the 2 Intelliswitch outputs together, In a single receiver setup this is like having 2 separate battery circuits.
  • Page 15 9 servos it is recommended to use a deans style ultra connector. Current capacity will then be limited to Intelliswitch design. Using Intelliswitch with a voltage regulator Intelliswitch was designed to work with all current RC products regulated and unregulated. If you prefer using LifeP04 chemistry batteries (nominal 6.4v) then Intelliswitch will work excellently in most RC and Robotics applications without a regulator.
  • Page 16 Intelliswitch V2 Specifications - 2 x independent switching circuits in a double pole single throw combination. - Battery chemistry LifeP04 (2 - 3 cells), LiPo Life (2 - 3 cells), Lion (2 - 3 cells). - Maximum input voltage 13 volts. - Minimum input voltage 6 volts - Max continuous current: 2 x 10 Amp (20 Amp),...
