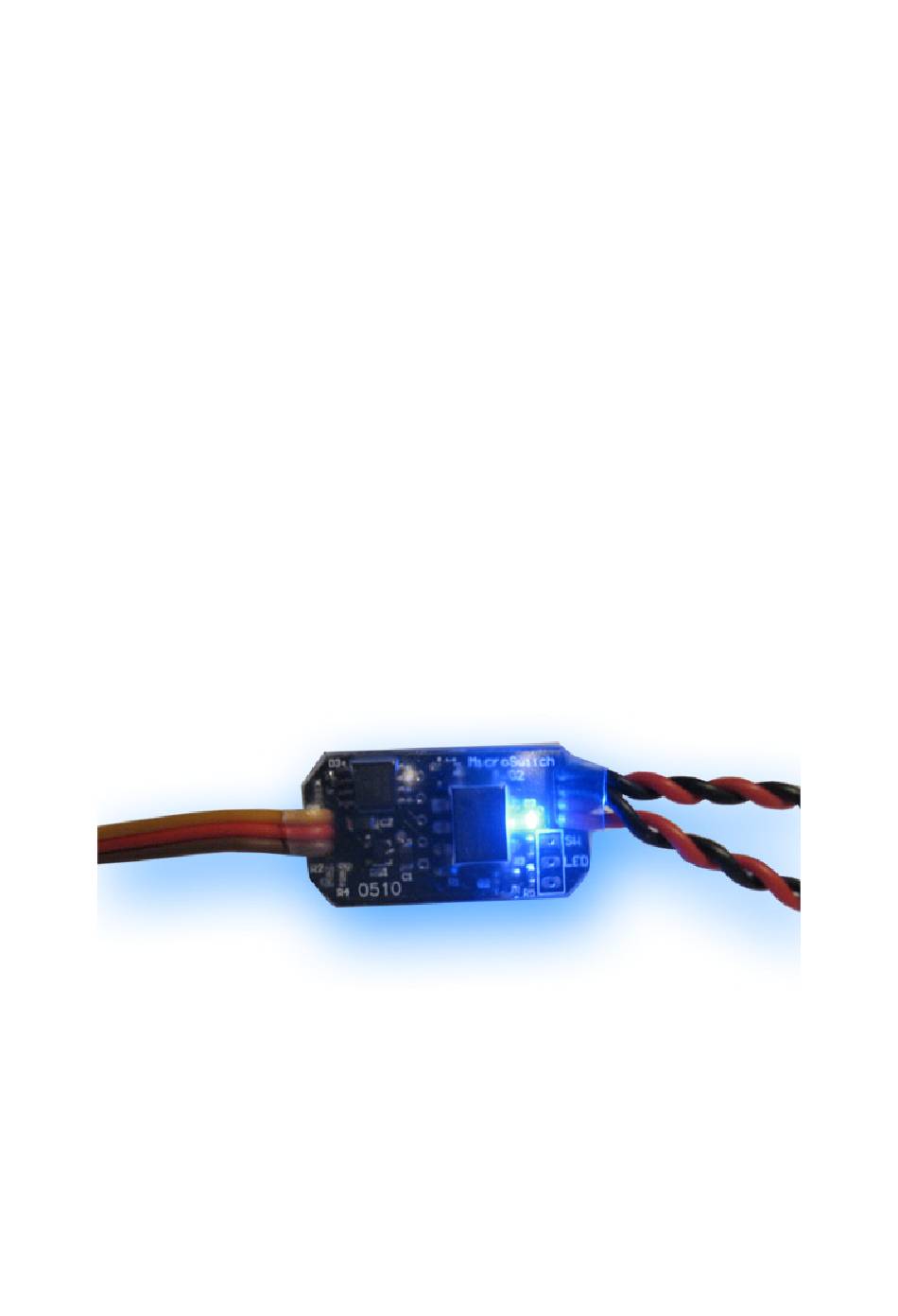

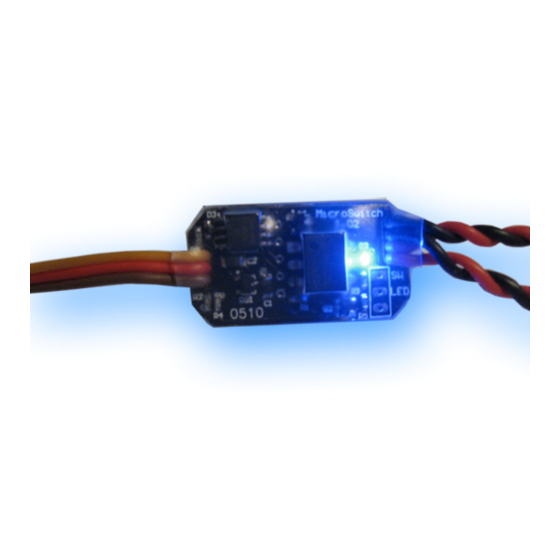

- Page 1 Booma RC Micro Switch (Mikey) www.boomarc.com...
- Page 2 Congratulations for choosing the Booma RC Micro (Mikey) Switch. Micro Switch was designed as a general purpose optically isolated switch for use in giant scale RC and robotics. One of the key design criteria was to keep Micro Switch light, small and affordable.
- Page 3 Typical Connection Examples for Mi- cro Switch. Ignition Battery Micro Switch Receiver Ignition Micro Switch as a Gas powered Micro Switch On Board Glow Battery Micro Switch Receiver Glow Plug or any load Micro Switch as an “On Board” Glow switch...
- Page 4 Lead Connection Examples for Micro Switch. Battery input To Load Connection to Receiver Channel Battery input To Load Lets get started Connect Micro Switch as shown above. Micro Switch ‘s microprocessor draws it’s power from your re- ceiver and is only in awake state while your receiver is switched on.
- Page 5 Micro Switch also requires one receiver channel to operate and is set to switch at approximately 50% of stick position. It is recommended to connect Micro Switch to a switch channel on your receiver and adjust the switch until Micro Switch operates as required.
- Page 6 Turning Micro Switch ON After connecting Micro Switch to the models receiver and a bat- tery or power to the battery input (as shown on page 4) turn on the model’s receiver. If you have adjusted your receiver channel correctly, switching on the selected transmitter switch/channel will arm Micro Switch and the LED will be permanently lit.
- Page 7 FACTS Why does Micro Switch turn OFF when I switch to a turn on con- dition via my transmitter? Micro Switch is designed to switch on from a pulse width greater that 50%. Reverse the switch condition on your transmitter will set it right. Can I use Micro Switch as a General Purpose Optically Isolated switch? Yes you can, Micro Switch can be used for any general purpose function as long as the maximum recommended volt-...
- Page 8 Specifications - Optical Isolated digital switching circuit with better than 1500V Isolation. - Works with the following Battery chemistries LifeP04 (2 -3 cells). LiPo (2 - 3 cells). Lion (2 - 3 cells). NiCd (1 - 10 Cells). NiMH (1 - 10 Cells). NiCd (1 Cell) Glow Driver.
