JBL C508GTI Owner's Manual

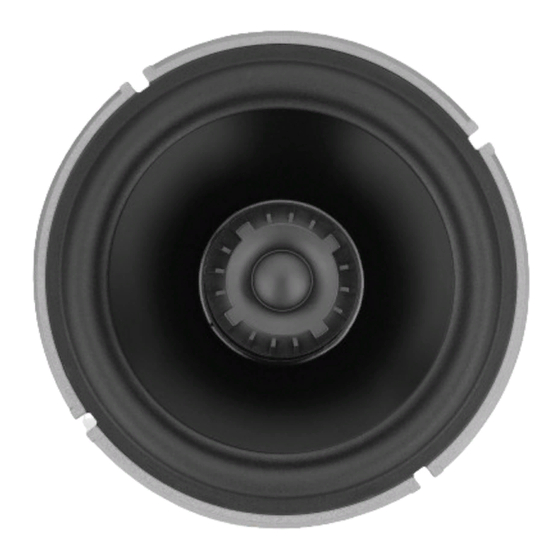

Professional-grade automotive component speaker system
Hide thumbs
Also See for C508GTI:
- Owner's manual (4 pages) ,
- Specifications (1 page) ,
- Owner's manual (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for JBL C508GTI
Summary of Contents for JBL C508GTI
- Page 1 PRO POWER Professional-Grade Automotive Component Speaker System C508GTi C608GTi Owner’s Manual · Einbauanleitung · Guide d’utilisation · Manual de uso · Manuale Utente · Brugsvejledning...
- Page 2 PRO POWER Professional-Grade Automotive Component Speaker System Owner’s Manual C508GTi C608GTi...
- Page 3 If you don’t feel you have the necessary tools or experi- ence, ask your authorized JBL car audio dealer about professional installation options. Warning: Playing loud music in your auto-...
-
Page 4: Woofer Installation
Woofer Installation Figure 7. Mounting the C508GTi or C608GTi woofer where there is no factory speaker location. To mount the C508GTi in factory locations, omit the grille and grille tray. Figure 8. Mounting the C608GTi woofer in standard 5-1/4" holes (in many Japanese and American automo- biles) Figure 10. -
Page 5: Specifications
1.04 0.25” (6.35mm) 0.65” (16.51mm) 2” (50.8mm) 1” (25.4mm) 1/8” (3.44mm) JBL Consumer Products • 250 Crossways Park Drive, Woodbury, NY 11797 1-800-336-4JBL (4525) www.jbl.com ©2001 JBL, Incorporated • JBL is a registered trademark of JBL, Incorporated Part No. C508/C608GTiOM7/01... - Page 6 PRO POWER Composants audio type professionnel pour véhicule. Guide d’utilisation C508GTi C608GTi...
- Page 7 à votre véhicule. Si vous pensez véhicules. manquer d’expérience et d’outils, demandez assistance à votre revendeur JBL agréé. Avertissement : Reproduire de la musique à volume élevé dans un véhicule peut générer des troubles irréversibles de l’ouïe et couvrir les bruits de circulation.
- Page 8 Niveau tweeter Niveau tweeter Niveau tweeter Vers woofer Figure 7. Montage du woofer C508GTi ou C608GTi en l’absence d’emplacement haut-parleur prévu par le constructeur. Pour un montage dans un emplacement prévu, omettre la grille et l’anneau de montage. Figure 8.
- Page 9 1320 9,01 0,52 2,463 0,50 1,04 6,35mm 16,51mm 50,8mm 25,4mm 3,44mm JBL Consumer Products • 250 Crossways Park Drive, Woodbury, NY 11797 1-800-336-4JBL (4525) www.jbl.com ©2001 JBL, Incorporated • JBL is a registered trademark of JBL, Incorporated Part No. C508/C608GTiOM7/01...
- Page 10 PRO POWER Professional-Grade Automotive Component Speaker System Einbauanleitung C508GTi C608GTi...
- Page 11 Warnung: Überlautes Musikhören im Auto kann das Gehör dauerhaft schädigen und von außen kommende Verkehrgeräusche über- tönen. Grundsätzlich empfehlen wir beim Fahren mäßige Abhörlautstärke. JBL über- nimmt keinerlei Haftung für Gehörschäden, Verletzungen oder Sachschäden, die auf- Abbildung 1: grund unsachgemäßer Benutzung seiner Montage des Tieftöners und Hochtöners im...
- Page 12 Frequenzweiche verkabeln und einstellen Installation des Tieftöners Hochtonpegel Hochtonpegel (Grundeinstellung) Hochtonpegel Abbildung 7: Montage des C508GTi in eine Tür ohne werksseitigen Ausschnitt Abbildung 8: Montage des C608GTi in einen Standard 51⁄4-Zoll-Ausschnitt Zu den Ausgängen der Endstufe Abbildung 10: Die Frequenzweiche mit den Lautsprechern und...
- Page 13 1.04 0.25” (6.35mm) 0.65” (16.51mm) 2” (50.8mm) 1” (25.4mm) 1/8” (3.44mm) JBL Consumer Products • 250 Crossways Park Drive, Woodbury, NY 11797 1-800-336-4JBL (4525) www.jbl.com ©2001 JBL, Incorporated • JBL is a registered trademark of JBL, Incorporated Part No. C508/C608GTiOM7/01...
- Page 14 PRO POWER C508GTi C608GTi Sistemi di Altoparlanti per Auto a Componenti Professional Grade Manuale Utente...
-
Page 15: Posizionamento Degli Altoparlanti
JBL Il Marchio Ufficiale della Musica dal Vivo Importante L’installazione di componenti per Posizionamento degli altoparlanti hi-fi car potrebbe richiedere una buona cono- Le Figure 1-4 mostrano alcuni possibili posizio- scenza di un’ampia varietà di procedure mecca- namenti degli altoparlanti, nell’ordine dal più... - Page 16 Livello Tweeter O dB (Default) Livello Tweeter –2dB Figura 7. Montaggio del woofer C508GTi o C608GTi ove non vi sia una predisposizione. Per il montaggio del C508GTi in predisposizione, eliminare griglia e portagriglia. Figura 8. Installazione del woofer C608GTi in predisposizione standard da 5-1/4 (in molte auto giapponesi ed americane).
- Page 17 1.04 6,35 mm 16,51 mm 50,8 mm 25,4 mm 13,44 mm JBL Consumer Products • 250 Crossways Park Drive, Woodbury, NY 11797 1-800-336-4JBL (4525) www.jbl.com ©2001 JBL, Incorporated • JBL is a registered trademark of JBL, Incorporated Part No. C508/C608GTiOM7/01...
- Page 18 PRO POWER C508GTi C608GTi Sistema profesional de altavoces por componentes para el automóvil - Manual de us...
-
Page 19: Colocación De Los Altavoces
Le recomendamos que manten- Figura 1. ga un volumen bajo mientras conduce. JBL Montaje del altavoz para graves y el altavoz para no se hará responsable en ningún caso de la agudos en el panel lateral del reposapiés... -
Page 20: Declaración De Conformidad
Figura 7. Montaje del C508GTi o C608GTi para graves cuando no hay una posición preparada de fábri- ca para los altavoces. Para montar el C508GTi en las posiciones originales de fábrica, prescin- da de la rejilla y de su bandeja Figura 8. - Page 21 16,51 mm n.d. 50,8 mm 25,4 mm 3,44 mm n.d. JBL Consumer Products • 250 Crossways Park Drive, Woodbury, NY 11797 1-800-336-4JBL (4525) www.jbl.com ©2001 JBL, Incorporated • JBL es una marca registrada de JBL, Incorporated Part No. C508/C608GTiOM7/01...
- Page 22 JBL Consumer Products • 250 Crossways Park Drive, Woodbury, NY 11797 1-800-336-4JBL (4525) www.jbl.com ©2001 JBL, Incorporated • JBL is a registered trademark of JBL, Incorporated Part No. C508/C608GTiOM7/01...
