Microtek NDT-2000 Assemble page 2

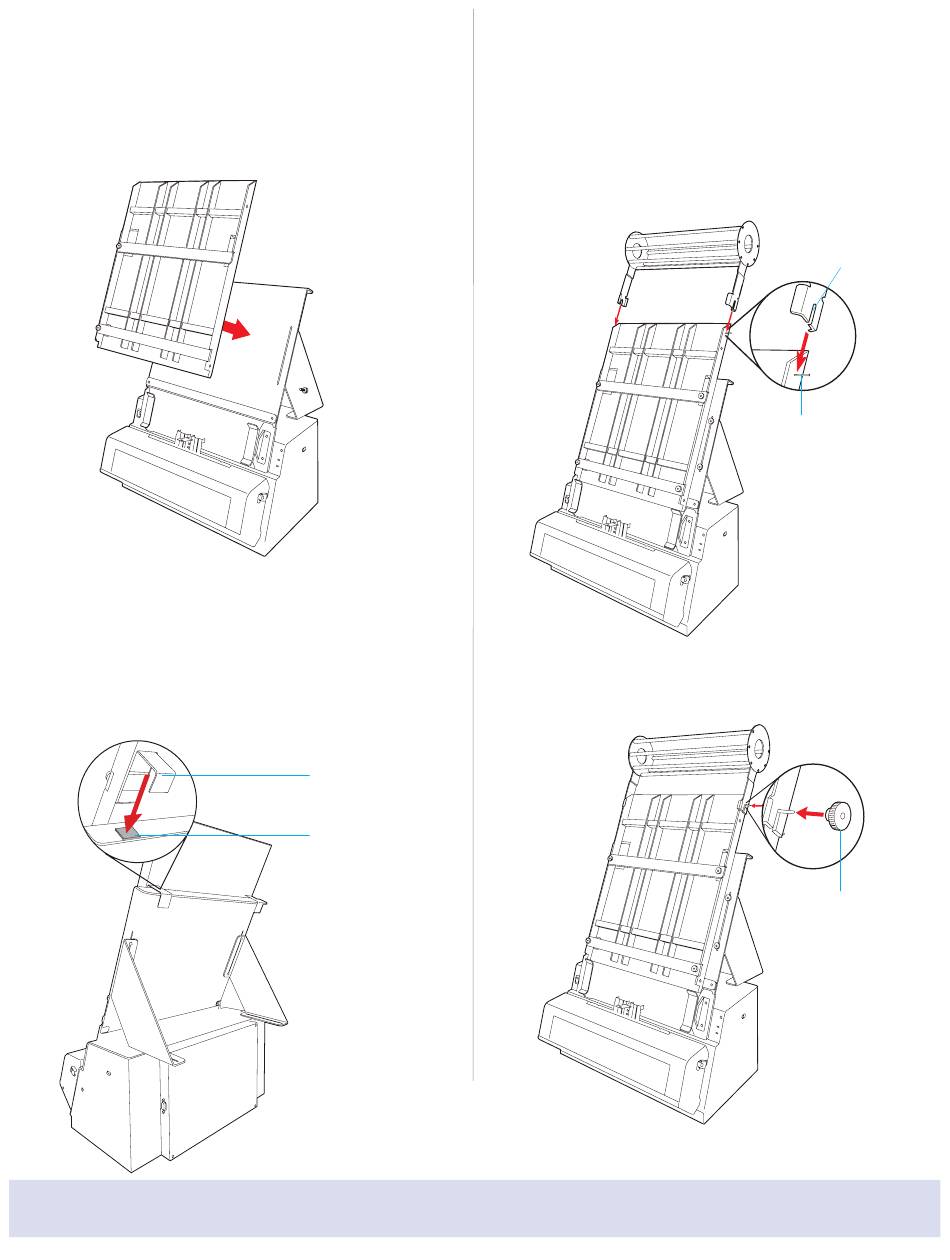

Hanging the Multi-channel Film Tray
over the Base Tray
1. Hold up both sides of the Multi-channel Film Tray carefully,
locate the hooks at the back of the Multi-channel Film
Tray and then use them to hang the Multi-channel Film
Tray over the top of the Base Tray gently.
2. Pleas take note that when hooking up the Multi-channel
Film Tray over the Base Tray, make sure that the hooks
at the back of the Multi-channel Film Tray have been
attached to the pads located at the top of the Base Tray.
NOTE: For how to use the Multi-channel Film Feeder (MFF) with the digitizer and software in details, refer to the user's
manual on the CD/DVD in your digitizer package.
Installing the Film-rolling Rack
1. Hold up both sides of the Film-rolling Rack carefully and
2. Locate two shafts at both sides of the Multi-channel Film
3. When done, fasten Quick-lock Nuts clockwise to each
Hooks at the back
of the Multi-channel
Film Tray
Pads at the top
of the Base Tray
locate two slots at the bottom sides of the Film-rolling
Rack.
Tray; then, snap the slots at the bottom of the Film-rolling
Rack into the shafts of the Multi-channel Film Tray.
shaft to secure the Film-rolling Rack at the top of the
Multi-channel Film Tray.
Slots at the bottom
sides of the Film-
rolling Rack
Shafts at both sides of
the Multi-channel Film
Tray
Fasten the Quick-lock
Nut to each shaft of
the Multi-channel Film
Tray.
