Summary of Contents for PB iMPB

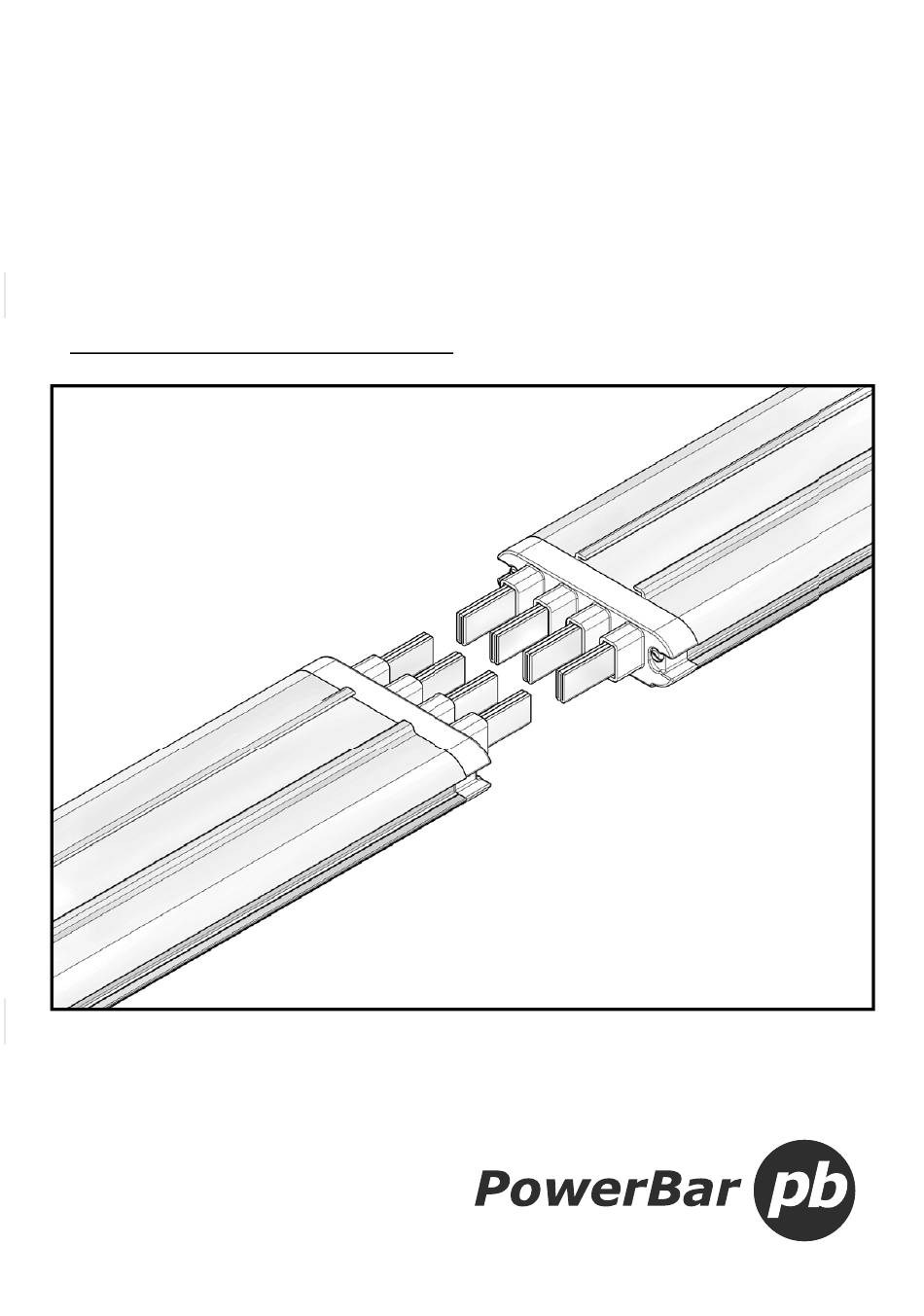

- Page 1 Installation Manual...
-
Page 2: Manual Lifting
This Installation Manual is designed to assist in the Safe Handling and Installation of the iMPB system. These instructions are in addition to normal safe working practices as required by the local health and safety regulations. These instructions do not in any way advocate a departure from these requirements. -
Page 3: Installation
Powerbar iMPB Installation Busbar The Busbar Sections are secured to a framing system, such as Unistrut®, using the Hanging Brackets as shown below. The bar can be secured both on its fl at or on its edge. Before lifting a Busbar Section, ensure that a detailed risk assessment is carried out for the lifting procedure being performed in that specifi c area. - Page 4 www.powerbarsystems.com Joint Pack The steps below outline best practice, the Busbar orientation and site conditions may restrict installers from adhering to this methodology. In these cases installers must be cautious and ensure the joint pack is installed correctly. Ensure all parts are meggered and visually inspected prior to installation.
- Page 5 Powerbar iMPB Step 4. Step 5. Attach the Bottom Joint pack cover using the M6 socket cap screws Tighten the joint pack center bolt to 25Nm using a calibrated torque provided. Tighten to 10Nm. wrench. If installed correctly the joint will appear level.
- Page 6 The proprietary spring loaded mechanical interlock ensures that the tap-off box can only be inserted on to the iMPB busbar system with the on-load isolator in the off position. ...
- Page 7 Powerbar iMPB Prior to Energizing Maintenance of Busbar Powerbar I MPB is constructed using simple, robust mechanisms A test must be completed prior to energizing with connection busway joint principles established and verifi ed in Step 1. A continuity test to verify the run is complete.
- Page 8 Powerbar iMPB E&I Engineering Corporation E&I Engineering LTD Powerbar LLC E&I Engineering LTD USA Manufacturing Location European Manufacturing Location Middle East Manufacturing Location UK Central Offi ce 400 Supreme Industrial Drive Ballyderowen N16/N17 2/8 Victoria Avenue Anderson Burnfoot Al Ghail Industrial Park...
