Uponor SELECT UNCOILER Instruction Sheet

Introduction

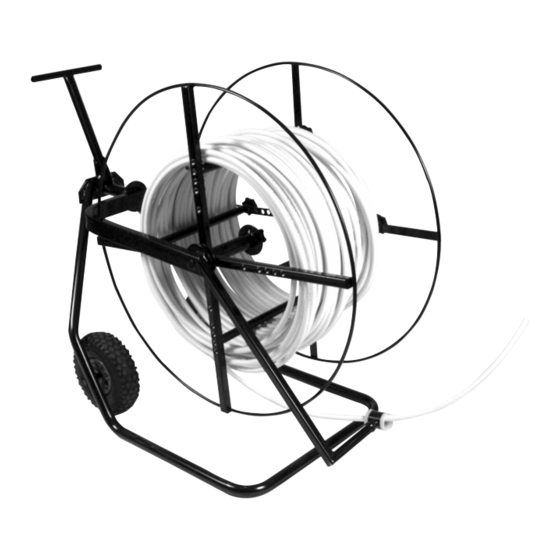

The Uponor Select Uncoiler (E6062000) facilitates the uncoiling of
Wirsbo AQUAPEX plus or Uponor multi-layer composite tubing (formerly MultiCor®).
The uncoiler features an adjustable reel to allow for either horizontal or vertical uncoiling. Refer to the following
instructions to properly assemble the Select Uncoiler.

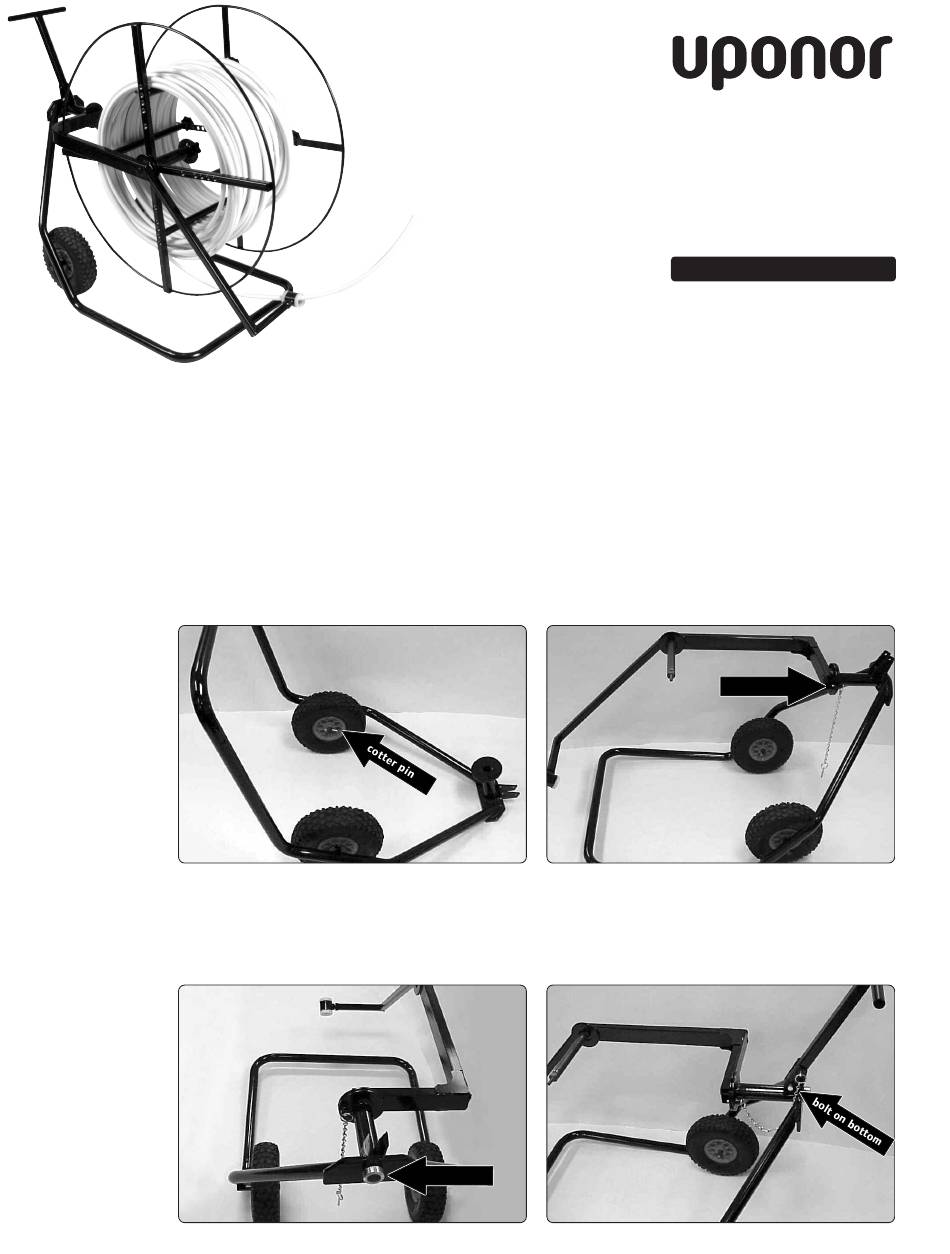

Step 1
Install the two tires onto the uncoiler base axles and
secure in place with cotter pins.
Step 3
Tighten the set screw to secure the silver collar onto
the reel support arm shaft as shown in the photo.
5 ⁄
16
Step 2
Attach the reel support arm onto the uncoiler base at
the spindle. Insert the small pin (attached to the chain)
into the pivot hole.
Step 4
Attach the handle with a bolt and locking hex nut.
Secure the handle with the other small pin (attached
to the chain).
shaft collar
RADIANT HEATING,
FIRE PROTECTION AND
PLUMBING SYSTEMS
SELECT UNCOILER
INSTRUCTION SHEET
" to 1" Wirsbo hePEX™ plus, Wirsbo AQUAPEX®,
small pin
